For HDTV Set-Top Boxes with DVI

1. Turn off the power to the HDTV and HDTV Set-Top Box.

2. Using a HDMI-DVI cable, connect the DVI end to your HDTV Set-Top Box

and the HDMI end to the HDMI Input at the rear of the HDTV.

3. Turn on the power to the HDTV and HDTV Set-Top Box.

4. Select HDMI using the INPUT button on the remote, side of the HDTV, or

directly by pressing the HDMI button on the Remote Control.

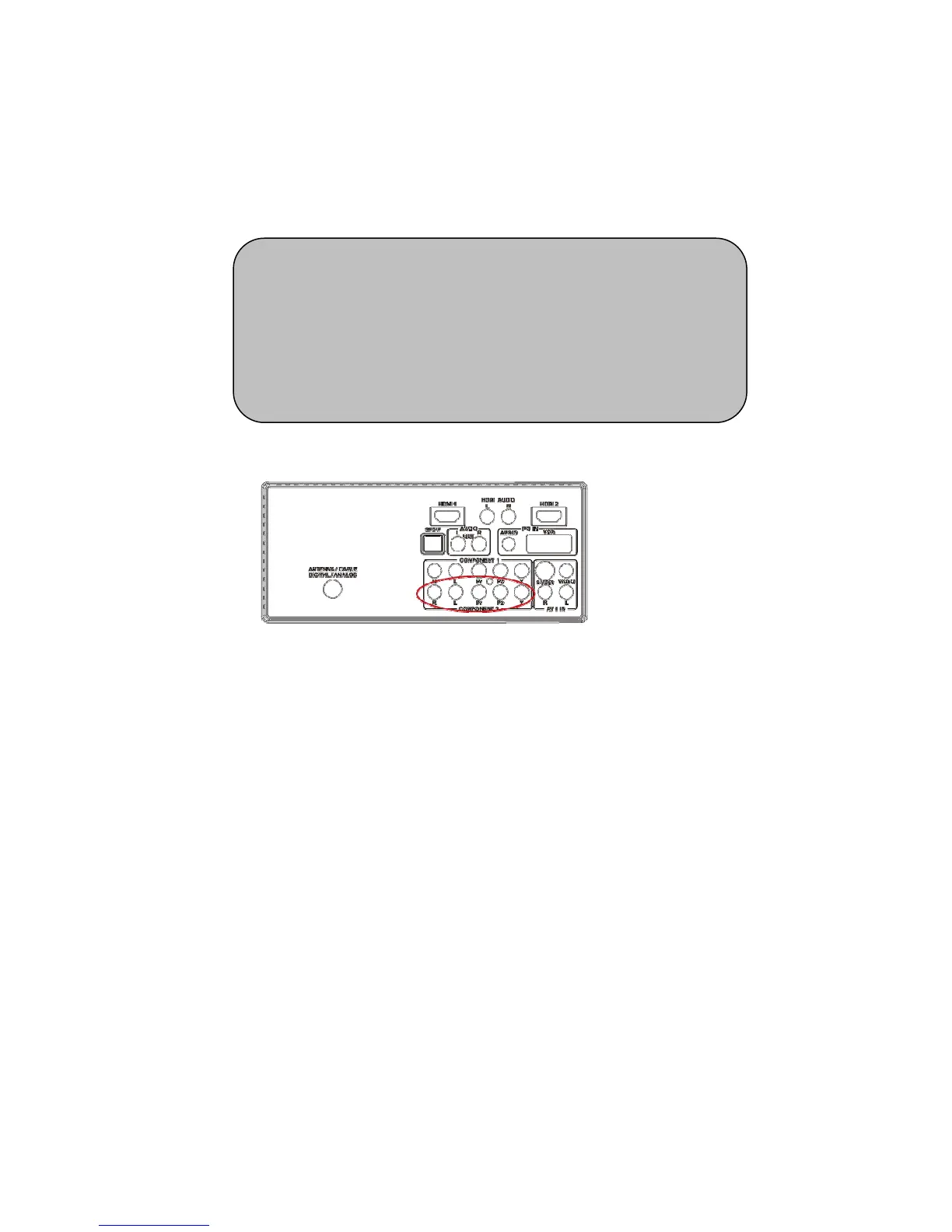

Using Component Video

Connecting your HDTV Set-Top Box (Better):

1. Turn off the power to the HDTV and HDTV Set-Top Box.

2. Connect the Pr (red color) connector on your HDTV Set-Top Box to the

corresponding Pr (red color) connector in the Component group.

3. Connect the Pb (blue color) connector on your HDTV Set-Top Box to the

corresponding Pb (blue color) connector in the Component group.

4. Connect the Y (green color) connector on your HDTV Set-Top Box to the

corresponding Y (green color) connector in the Component group.

5. Using an audio cable (red and white connectors), connect the cable to the

audio output connectors associated with the Component output on your

HDTV Set-Top Box and connect the other end to the audio connectors

associated with the Component.

Note:

a) The HDMI input on the HDTV supports High-bandwidth Digital Content

Protection (HDCP). HDCP encrypts the transmission between the video

source and the digital display for added security and protection.

b) Refer to your HDTV Set-Top Box user manual for more information about

the video output requirements of the product or consult your cable or

satellite operator.

c) The DVI to HDMI connection provides video only. Connection to an

alternate audio player is required for audio.

Other manuals for AOC L42H861

Questions and Answers:

Need help?

Do you have a question about the AOC L42H861 and is the answer not in the manual?

General

3D	No
Power LED	Yes
Pixel pitch	0.4845 x 0.4845 mm
Vertical scan range	60 - 75 Hz
Headphone connectivity	3.5 mm
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 60 kHz
Response time	8 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	6000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	251.46 mm
Package width	1155.7 mm
Package height	807.72 mm
Package weight	25600 g
Certification	FCC, cULus, RoHS, TUV-S
Audio (L/R) out	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	400 x 200 mm
Cables included	AC, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
RMS rated power	14 W
Tuner type	Analog
Analog signal format system	NTSC, PAL, PAL M, PAL N
