AOC L42H861 User Manual

36
【 Edge Effect 】 : The text edge effects, which gives None / Raised /
Depressed / Uniform / Left Shadow / Right Shadow
modes.
【Edge Color】: The colors of text edge effects, which provides Red / Green /
Blue / Yellow / Magenta / Cyan / Black / White Colors.
8. Audio only: press this item for those TV programs with audio only and without
the display. When the audio only is on, you could still modify the volume.

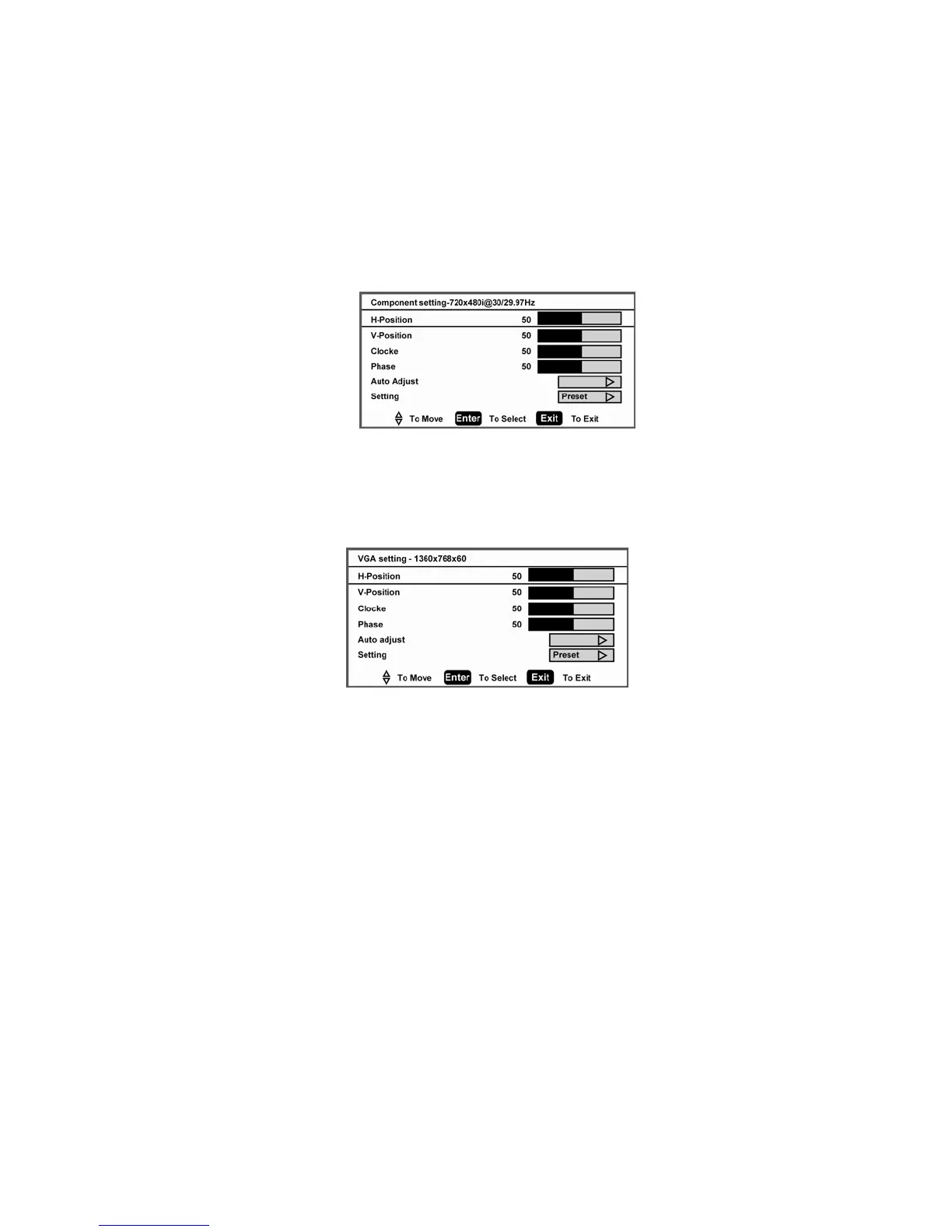

9. Component Set: This option only shows and is available in component mode,
which provides fine tuning component display, such as: 【H-Position】、【V-
Position】, 【Clock】,【Phase】 and【Auto Adjust】.All these items are
giving the tuning range from 0 to 100.【Setting】item providesthe default
componentsetting values restoring.
10. VGA Set: This option only shows and is available in VGA mode, which
provides several items for the VGA display fine tuning, such as : 【 H-
Position】、【V-Position】、【Clock】and 【Phase】. All these items giving
the tuning range from 0 to 100.【Setting】item provides the default VGA
setting values restoring.

AOC L42H861 Specifications

General

3D	No
Power LED	Yes
Pixel pitch	0.4845 x 0.4845 mm
Vertical scan range	60 - 75 Hz
Headphone connectivity	3.5 mm
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 60 kHz
Response time	8 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	6000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	251.46 mm
Package width	1155.7 mm
Package height	807.72 mm
Package weight	25600 g
Certification	FCC, cULus, RoHS, TUV-S
Audio (L/R) out	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	400 x 200 mm
Cables included	AC, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
RMS rated power	14 W
Tuner type	Analog
Analog signal format system	NTSC, PAL, PAL M, PAL N

Weight and Dimensions

Depth (with stand)	261.62 mm
Width (with stand)	1010.92 mm
Height (with stand)	688.34 mm
Depth (without stand)	99.06 mm
Height (without stand)	635 mm
