AOC L42H961 Service Manual

42ƎLCD TV AOC L42H961
14

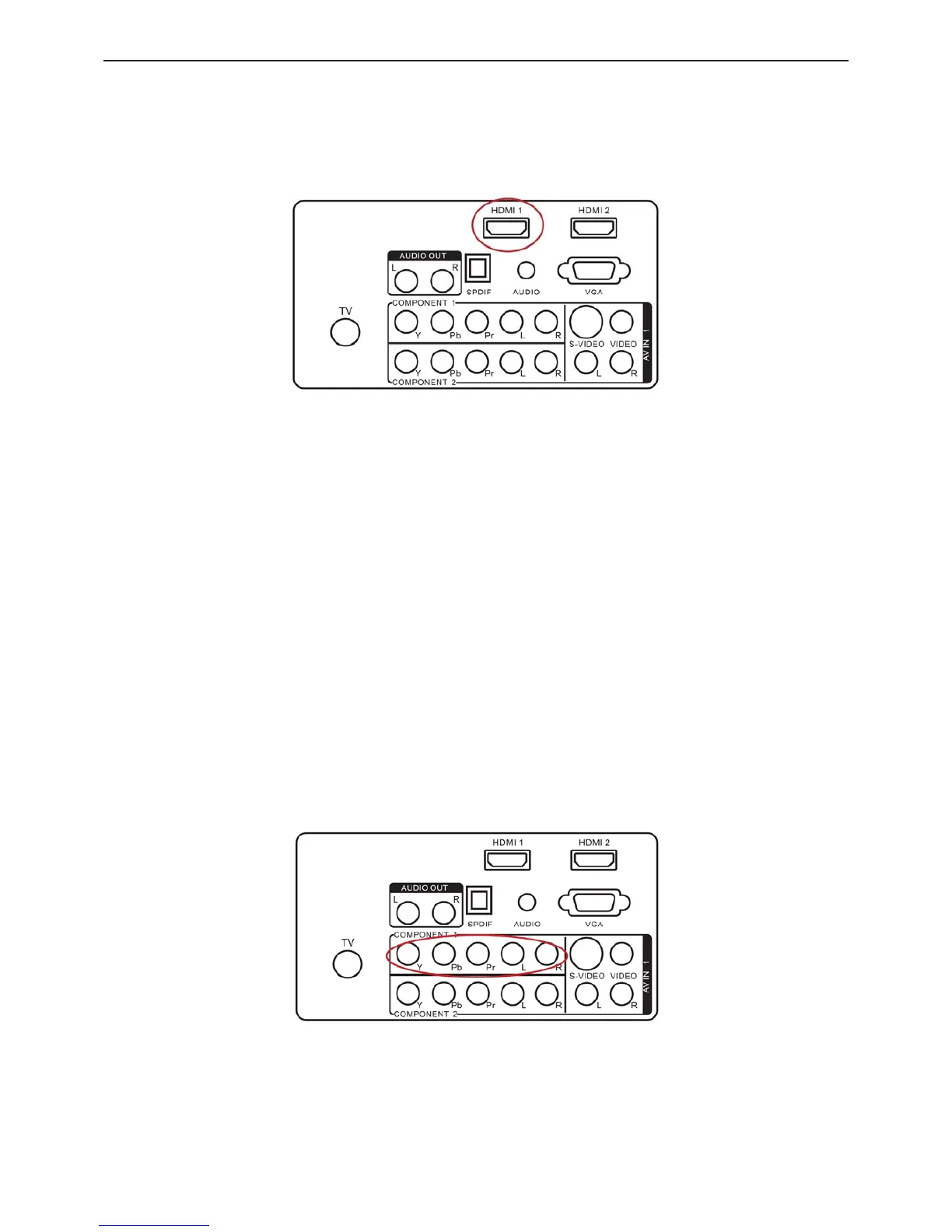

Connecting Your DVD Player
Using HDMI
DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be connected
to the HDMI input of the LCD HDTV for optimal results.
Connecting your DVD Player (Best)
1. Turn off the HDTV and DVD player.
2. Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI Input at the rear of
the HDTV.
3. Turn on the HDTV and DVD player.
4. Select HDMI using the SOURCE button on the remote, side of the HDTV or directly by pressing the HDMI/PC
button on the Remote Control.
For DVD Players with DVI:
1. Turn off the HDTV and DVD player.
2. Using a HDMI-DVI cable, connect the DVI end to your DVD player and the HDMI end to the HDMI Input at the
rear of the HDTV.
3. Turn on the HDTV and your DVD player.
4. Select HDMI using the SOURCE button on the remote or side of the HDTV, or directly by pressing the HDMI/PC
button on the Remote.
Using Component Video
Connecting your DVD Player (Better)
1. Turn off the HDTV and DVD player.
2. Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color) connector in the
Component at the rear of the HDTV.
3. Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue color) connector in the
Component group at the rear of the HDTV.

AOC L42H961 Specifications

General

Comb filter	3D
Response time	6.5 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Manual	Yes
Package depth	299 mm
Package width	1172 mm
Package height	858 mm
Package weight	25900 g
Certification	FCC, cULus, ROHS, EPA3.0
RF ports quantity	1
HDMI ports quantity	4
SCART ports quantity	0
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Headphone connectivity	3.5 mm
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	200 x 200 mm
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	275.5 mm
Width (with stand)	1015.3 mm
Height (with stand)	677.5 mm
Weight (with stand)	21000 g
Depth (without stand)	97.7 mm
Height (without stand)	648.6 mm
Weight (without stand)	18200 g
