AOC L42H961 Service Manual

42ƎLCD TV AOC L42H961
15
4. Connect the Y (green color) connector on your DVD player to the corresponding Y (green color) connector in the
Component group at the rear of the HDTV.
5. Using an audio cable (red and white connectors), connect the cable to the audio output connectors associated
with the Component output on your DVD player and connect the other end to the audio connectors associated with
the Component input at the rear of the HDTV.
6. Turn on the HDTV and DVD player.
7. Select Component using the SOURCE button on the remote, side of the HDTV or directly by pressing the COMP
button on the Remote Control.

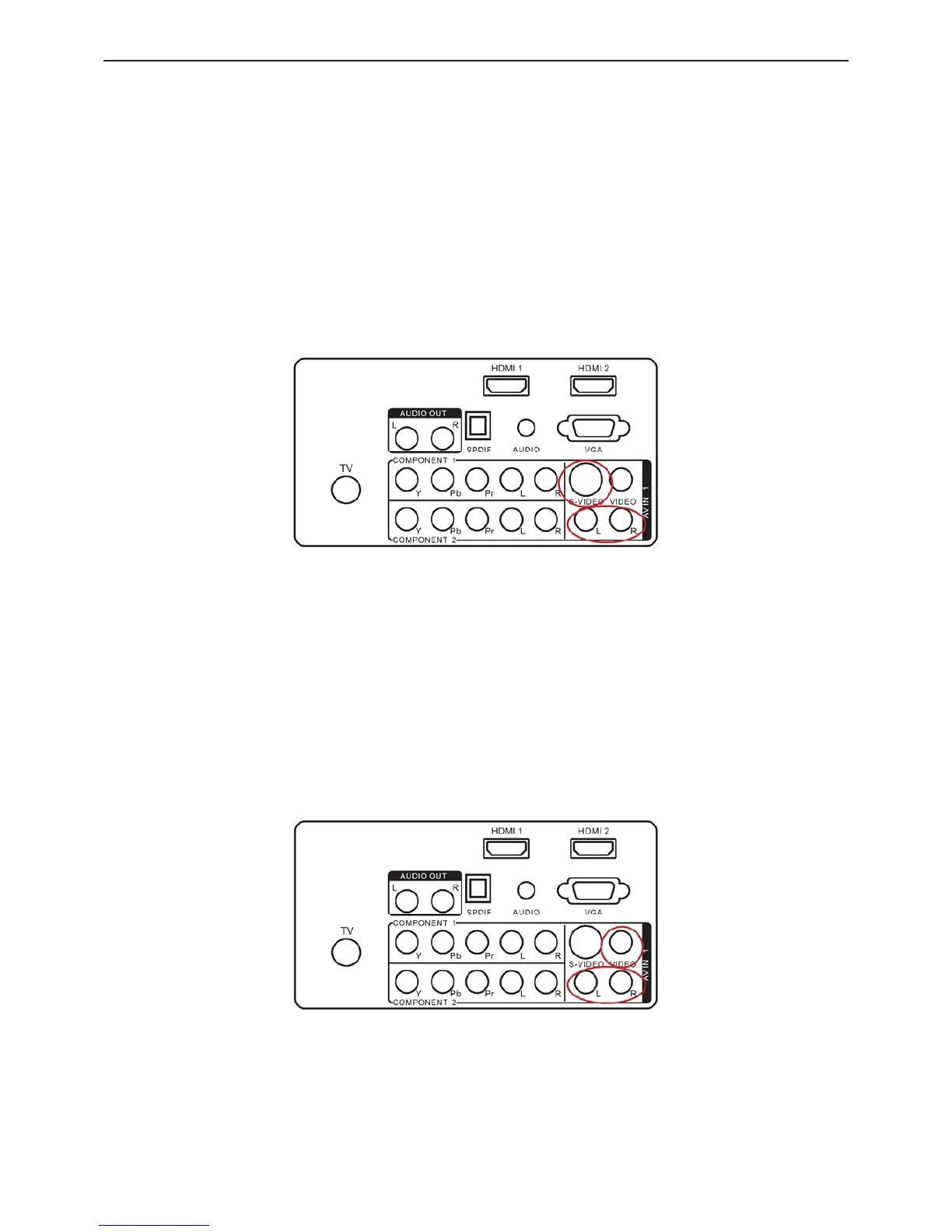

Using S-Video (AV)
Connecting your DVD Player (Good):
1. Turn off the HDTV and DVD player.
2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack in the AV group on the rear of the
HDTV.
3. Connect an audio cable (white and red connectors) to the audio output connectors associated with the S-Video
output on your DVD player and connect the other end to the audio connectors associated with the AV input on the
rear of the HDTV.
4. Turn on the HDTV and DVD player.
5. Select AV using the SOURCE button on the remote, side of the HDTV, or directly by pressing the VIDEO button
on the Remote Control.
Using Composite (AV) Video
Connecting your DVD Player (Good)
1. Turn off the HDTV and DVD player.
2. Connect the Video (yellow color) connector on your DVD player to the Video (yellow color) connector in the AV
group.
3. Connect the R (red color) and L (white color) audio connectors on your DVD player to the corresponding R (red
color) and L (white color) audio input connectors in the AV group.
4. Turn on the HDTV and DVD Player.
5. Select AV using the SOURCE button on the remote, side of the HDTV or directly by pressing the VIDEO button on

AOC L42H961 Specifications

General

Comb filter	3D
Response time	6.5 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Manual	Yes
Package depth	299 mm
Package width	1172 mm
Package height	858 mm
Package weight	25900 g
Certification	FCC, cULus, ROHS, EPA3.0
RF ports quantity	1
HDMI ports quantity	4
SCART ports quantity	0
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Headphone connectivity	3.5 mm
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	200 x 200 mm
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	275.5 mm
Width (with stand)	1015.3 mm
Height (with stand)	677.5 mm
Weight (with stand)	21000 g
Depth (without stand)	97.7 mm
Height (without stand)	648.6 mm
Weight (without stand)	18200 g
