AOC L42H961 Service Manual

42ƎLCD TV AOC L42H961
16
the Remote Control.

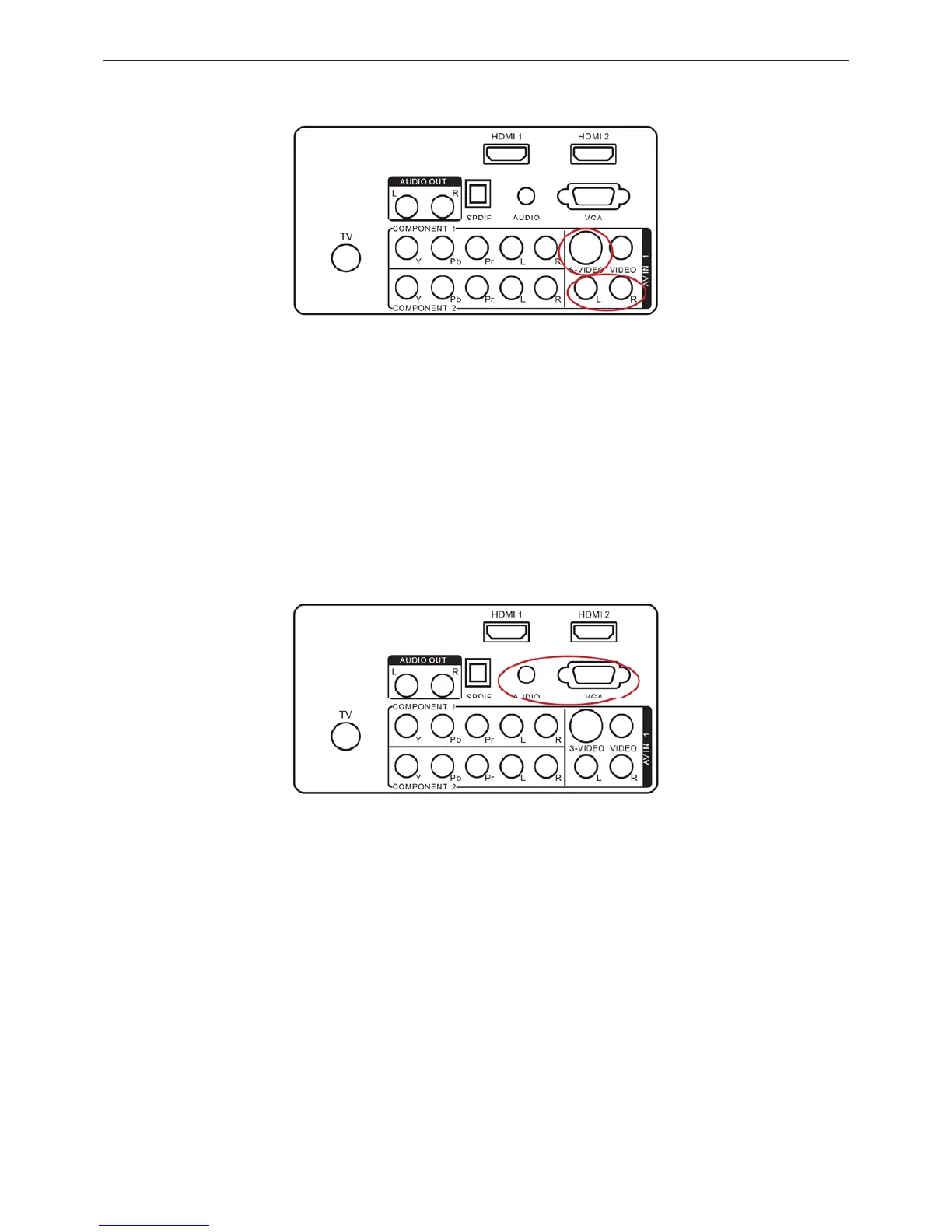

Connecting Your VCR or Video Camera
1. Turn off the HDTV and VCR or Video Camera.
2. Connect the S-Video jack on the rear of your VCR or Video Camera to the S-Video jack in the AV group on the
rear of the HDTV.
3. Connect an audio cable (white and red connectors) cable to the audio output connectors associated with the
S-Video output on your VCR or Video Camera and connect the other end to the audio connectors associated with
the AV input on the rear of the HDTV.
4. Turn on the HDTV and VCR or Video Camera.
5. Select AV using the SOURCE button on the remote, side of the HDTV or directly by pressing the VIDEO button on
the Remote Control.
Connecting to a PC
1. Turn off the HDTV and PC.
2. Connect a 15-pin D-Sub RGB (VGA) cable to the RGB output of your PC and the other end to the VGA input at
the rear of the HDTV.
3. Connect the Audio Out on your computer to the AUDIO input at the rear of the HDTV.
4. Turn on the HDTV and PC.
5. Select VGA using the SOURCE button on the remote, side of the HDTV or directly by pressing the HDMI/PC
button on the Remote.

AOC L42H961 Specifications

General

Comb filter	3D
Response time	6.5 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Manual	Yes
Package depth	299 mm
Package width	1172 mm
Package height	858 mm
Package weight	25900 g
Certification	FCC, cULus, ROHS, EPA3.0
RF ports quantity	1
HDMI ports quantity	4
SCART ports quantity	0
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Headphone connectivity	3.5 mm
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	200 x 200 mm
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	275.5 mm
Width (with stand)	1015.3 mm
Height (with stand)	677.5 mm
Weight (with stand)	21000 g
Depth (without stand)	97.7 mm
Height (without stand)	648.6 mm
Weight (without stand)	18200 g
