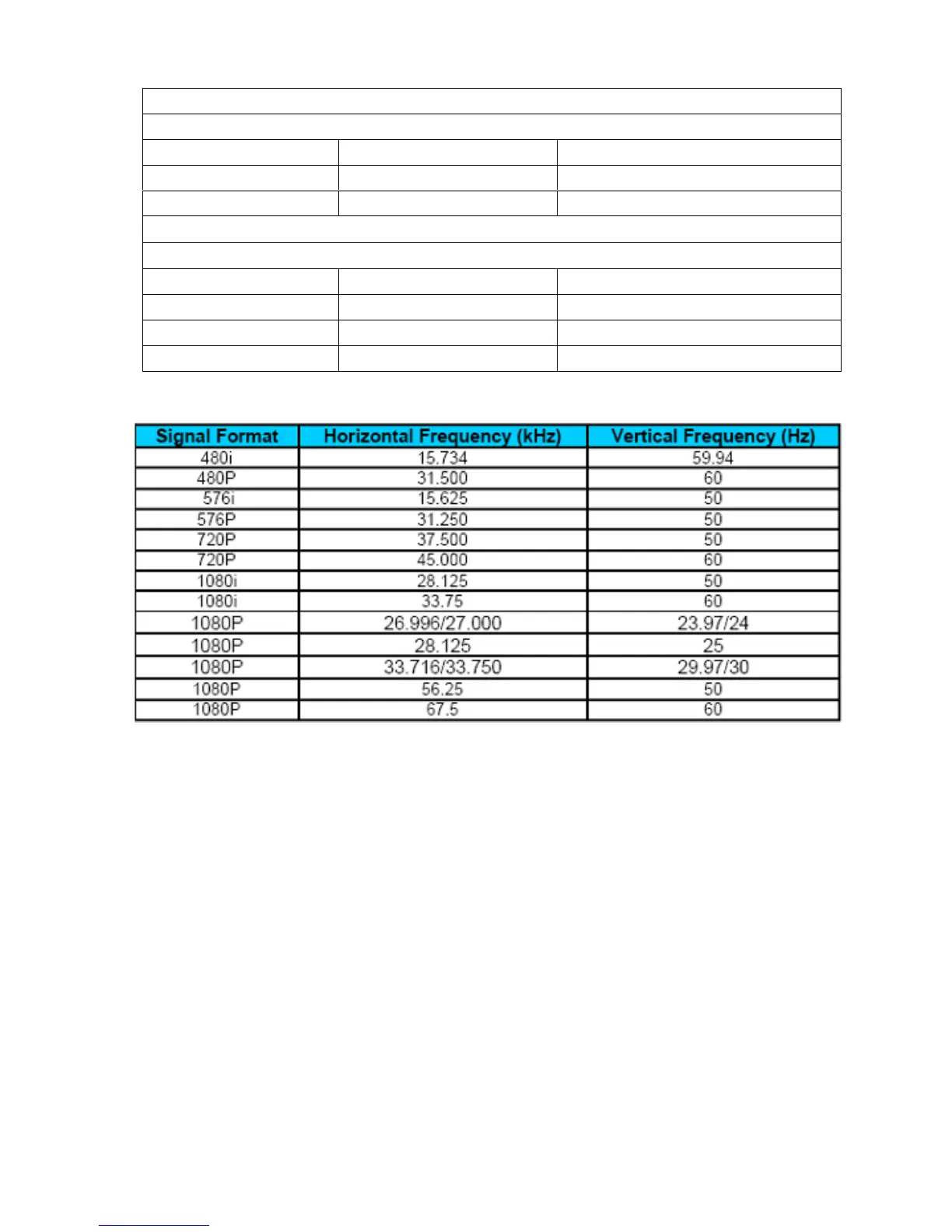

3.3 AV/S-Video/Component Video Inputs
Component (Y, Pb/Cb, Pr/Cr Input)
Video3
AV (Composite Video Input)
Video1
System PAL, SECAM and DVB-T
Amplitude 1Vpp (300mV-sync, 700mV-video)
Impedance 75 ohm terminated
S-Video (Y / C Input)
S-Video2
System PAL/ SECAM
Y signal amplitude 1VppY-signal
C signal amplitude +/-700mV C-signal
Impedance 75 ohm terminated
