AOC LE19K097 Service Manual

54

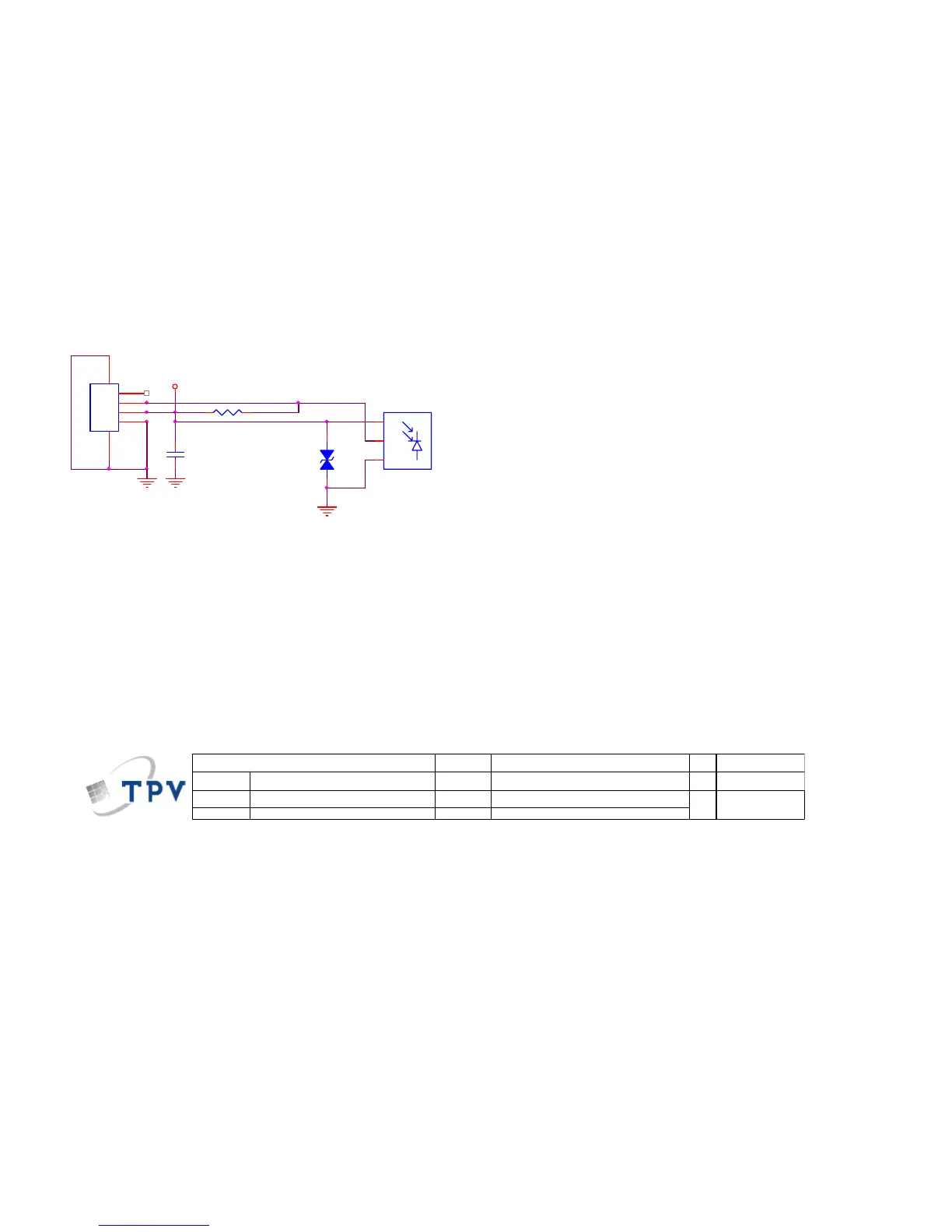

9.5 IR Board
715G4098R01000004B (for 19、22、24”)
IRRV
C201
100N 50V
VCC
R201 15K 1/10W
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 A
X
A
11Monday, August 16, 2010
<
称爹 >
02-IR
----><----|
1 2
CN201
CONN
1
2
3
4
6 5
IRRV
U201
IRM-3638TF16
VS
3
OUT
1
GND
2

AOC LE19K097 Specifications

General

Brand	AOC
Model	LE19K097
Category	LCD TV
Language	English
