U401 MSD8120PBN

U601 TAS5729

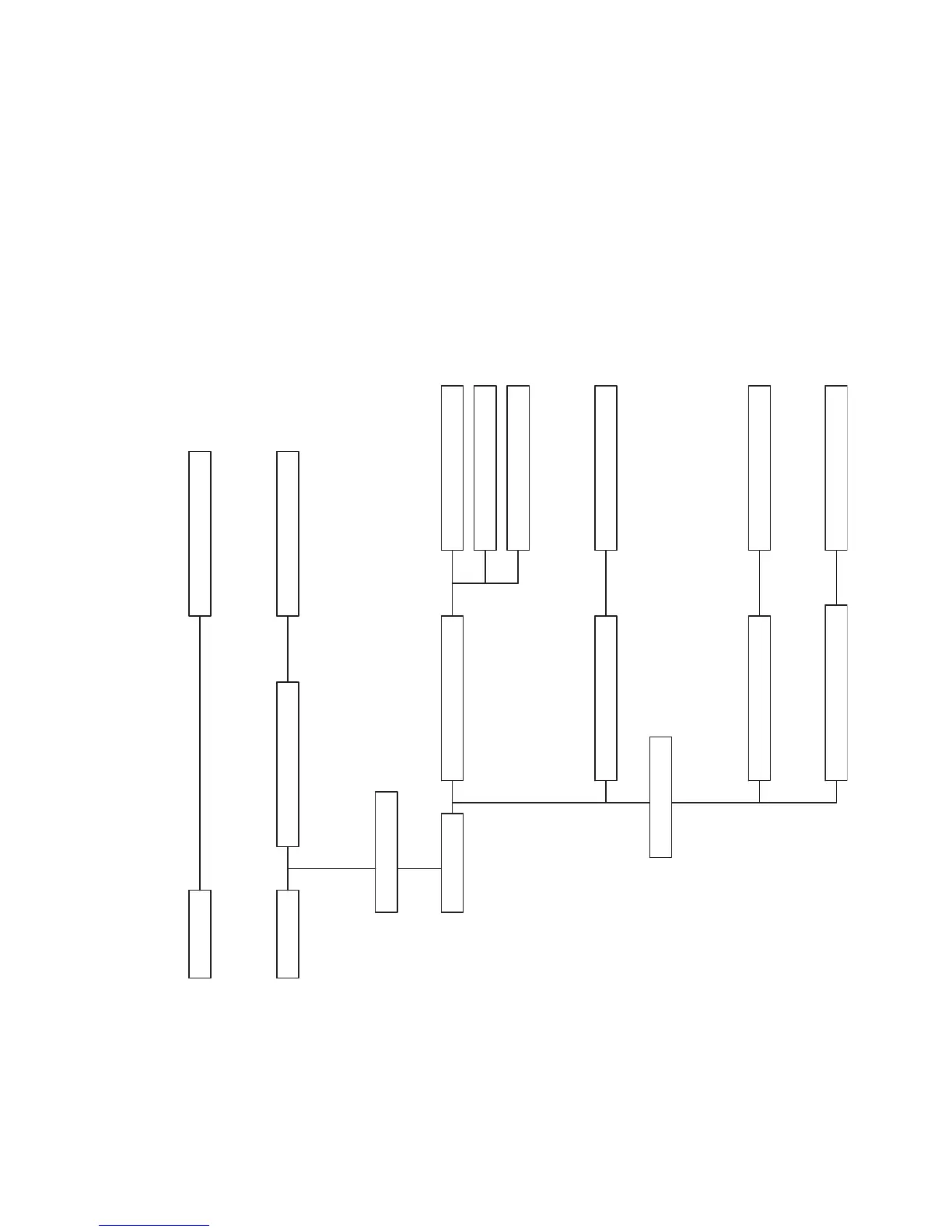

Main Board Power System

+3V3TUNER

U401 MSD8120PBN

PANEL LVDS Pow er

Q702 AO3401-4.2A

For Audio Amplifier

U403 W25Q32FVSSIG

5V_SW

U705 AT1529 For MSD8120PBN

For MSD8120PBN

U707 G5759F11U

P12V

3V3_STB

VCCK

P12V_AUD

U701 AP1117E33L-13-77

For Rese t IC

For SPI Flash

TU101 TUNER

DDRV

For MSD8120PBN

+12V_AUD

U401 MSD8120PBN

Q101 AO3401-4.2A

+5VSB

U102 AP1117E33L-13-77

U405 G690H293T73

U706 AP1117DG-13 1A ADJ

For TUNER 3.3V
