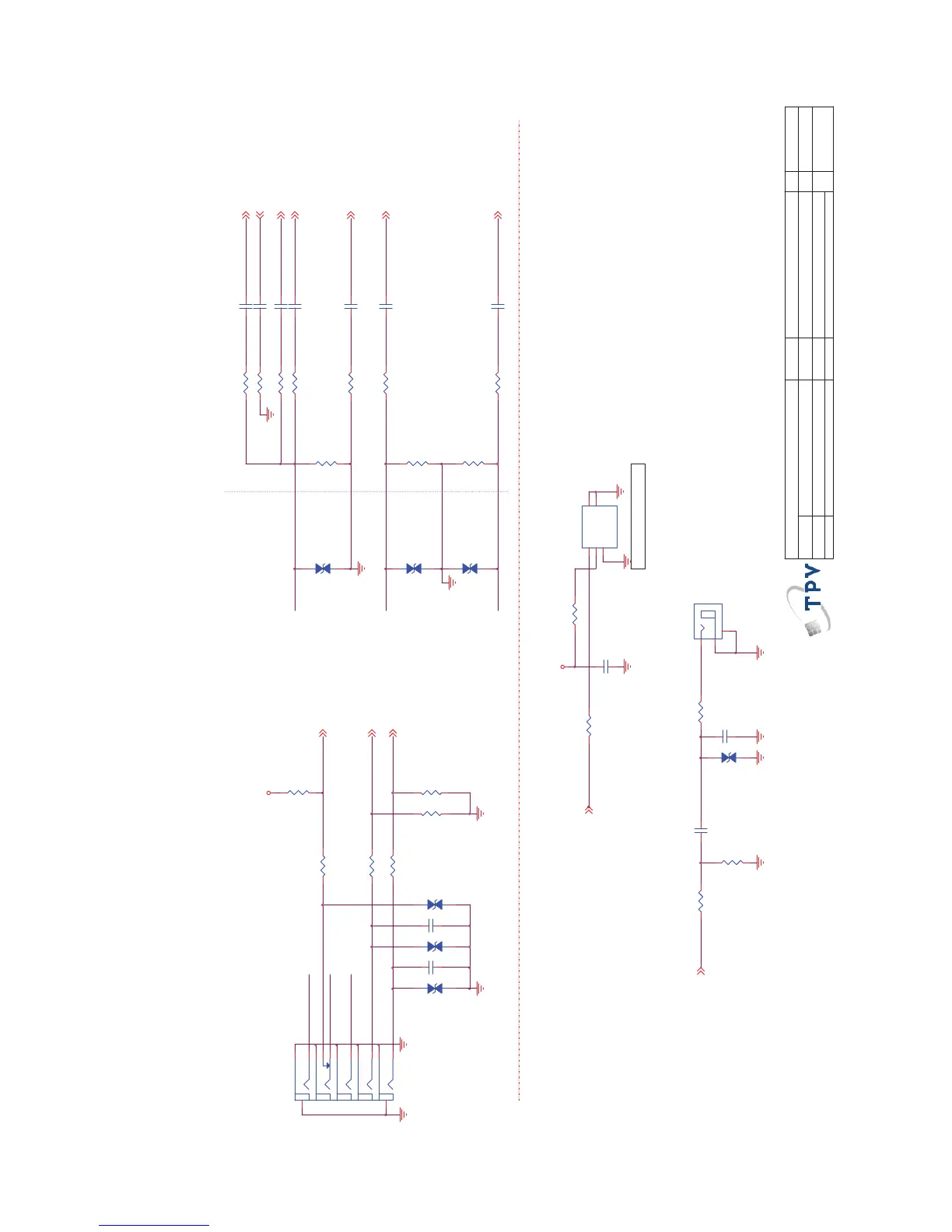

9. Schematic Diagram 9.1 Main Board 715G6689M0B001004N
Y_IN#1 PB_IN#1 PR_IN#1 YPBPR_L_IN#1 YPBPR_R_IN#1
C157 NC
PB_DET
YPbPr Video Input share with CVBS in Y 388G078G155AQS 088G 78G155ACL
PB_IN#1 COMP_PB Y_IN#1 PR_IN#1
COMP_SOY COMP_Y COMP_PR COMP_COM
OEM MODEL
Size Rev
Date
Sheet
of
TPV MODEL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
A B
39Friday , March 28, 2014
03. AV/YPbPr Inputs
<Variant Name>
R106 100R 1/16W 5%
C110 3.3NF 50V
R112 75R 1/16W 1%
R116 33R 1/16W 5%
R119 NC
R111 10K 1/16W 5%
R104 33R 1/16W 5% R102 150OHM 1/16W +/-5%
E A B C D
CN111 RCA JACK
1 2 3 4 6 7 8 9 10 11
12 13
5
R103 180R 1/16W 5%
C103 47NF 16V C108 47NF 16V C105 47NF 16V
R115 75R 1/16W 1% R107 75R 1/16W 1%
R109 10K 1/16W 5%
R113 12KOHM +-5% 1/16W
R108 68R 1/16W 5%
C104 1nF 50V C102 47NF 16V
C101 3.3NF 50V
R114 12KOHM +-5% 1/16W
R110 33R 1/16W 5%
C114 NC
R118 NC
C107 47NF 16V C112 47NF 16V
R105 33R 1/16W 5%
R101 4K7 1/16W 5%
5V_SW
COMP_PR 6 COMP_Y 6
+3V3SB
COMP_PB 6 COMP_COM 6 COMP_SOY 6
SPDIF_OUT6
CVBS_VCOM 6
CVBS0P 6
PB_DET 6
COLAY
R182
NC
COLAY
SPDIF_OUT
CVBS0PAV1_IN CVBS_VCOM
388G078G111AQS 388G078G111ACL
SPDIF_OUT6
YPbPr_R_In0 6
YPbPr_L_In0
YPbPr_L_In0 6
YPbPr_R_In0
R181
0R05 1/16W
A
CN604 NC
2 1
3
C113 100NF 16V
R117 33R 1/16W 5%
ZD102
NC
12
ZD103
NC
12
ZD106
NC
12
SPDIF_OUT
ZD105
NC
12
CN603
CONN
GND
1
VCC
2
VIN
3
TH1
4
TH2
5
Nearly IC
ZD104
NC
12
ZD101
NC
12
Optical X Coaxial V
ZD107
NC
12
SPDIF
Nearly Connector
SPDIF Co-Layout
088G 359 9A JT 088G 359 9B JT 088G 359 9B AT
Connected to connector GND
