AOC Q2963PM User Manual

44

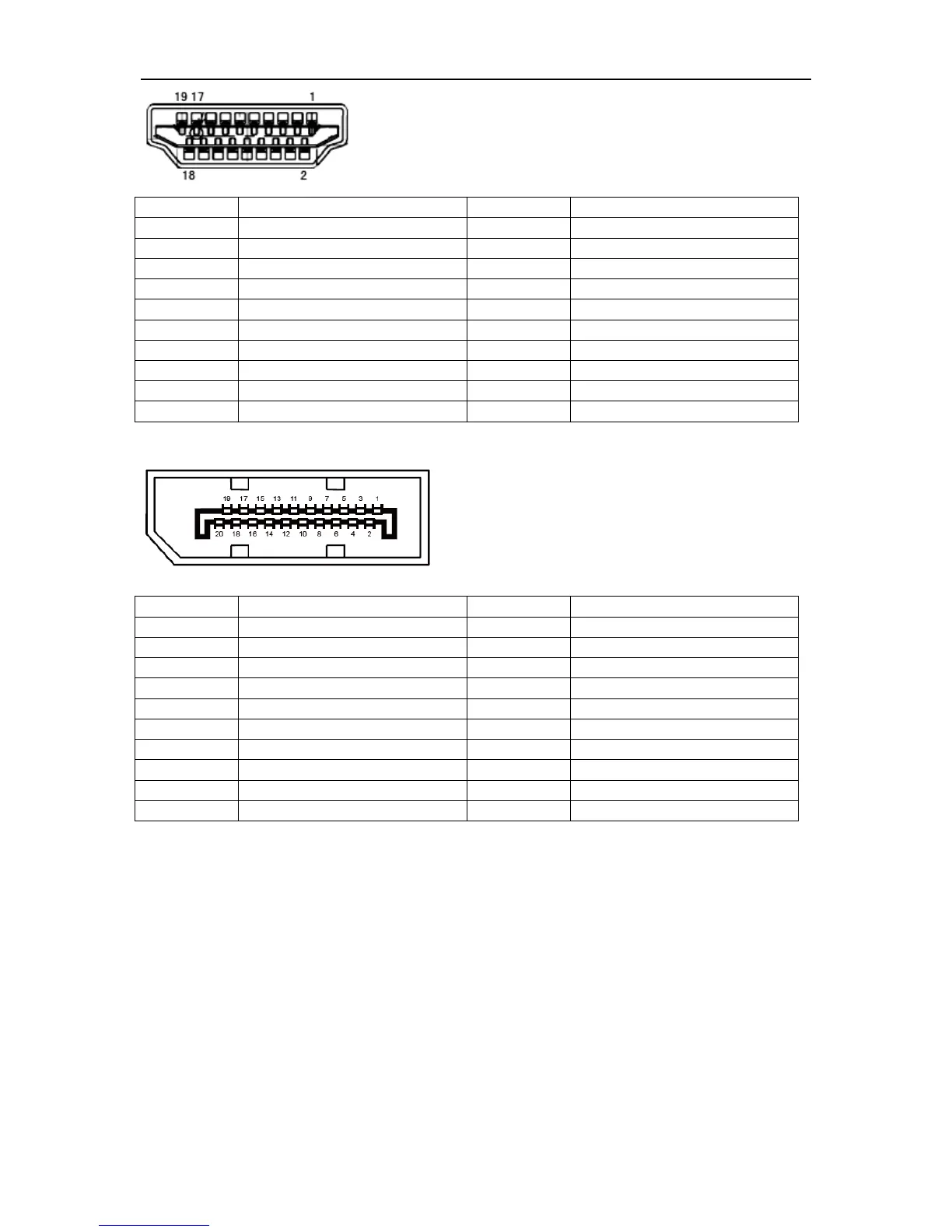

19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
Reserved (N.C. on device
5
TMDS Data 1Shield
15
SCL
6
TMDS Data 1
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +
20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML_Lane 3 (n)
11
GND
2
GND
12
ML_Lane 0 (p)
3
ML_Lane 3 (p)
13
CONFIG1
4
ML_Lane 2 (n)
14
CONFIG2
5
GND
15
AUX_CH(p)
6
ML_Lane 2 (p)
16
GND
7
ML_Lane 1 (n)
17
AUX_CH(n)
8
GND
18
Hot Plug Detect
9
ML_Lane 1 (p)
19
Return DP_PWR
10
ML_Lane 0 (n)
20
DP_PWR

AOC Q2963PM Specifications

General

Color	black
Tiltable	no
Touch Screen	no
OS Compatibility	mac, windows
Screen Size	29 inches
Aspect Ratio	21:9
Resolution	2560 x 1080
Refresh Rate	60hz
Response Time	5 milliseconds
Brightness	300 candela per square meter
Contrast Ratio	50, 000, 000:1
Horizontal Scan Rate	99 kilohertz
Built-In Speakers	yes
Power Consumption	65 watts
Width with Stand	28.1 inches
Net Weight without Stand	15.2 pounds
