AOC U2790PQU User Manual

31

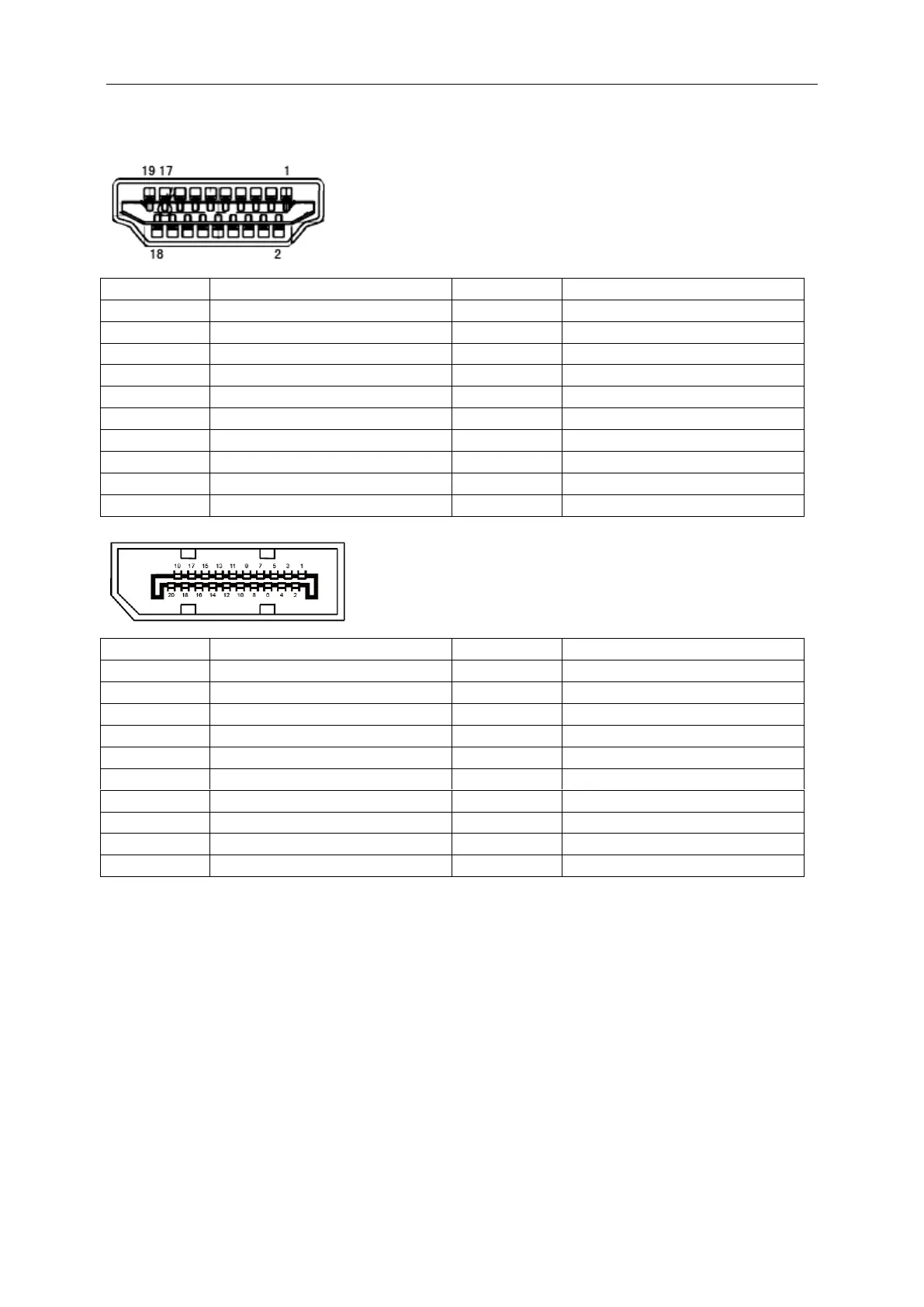

Pin Assignments
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
Reserved (N.C. on device
5
TMDS Data 1Shield
15
SCL
6
TMDS Data 1
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +
20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML Lane 3(n)
11
GND
2
GND
12
ML Lane 0(p)
3
ML Lane 3(p)
13
CONFIG1
4
ML Lane 2(n)
14
CONFIG2
5
GND
15
AUX CH(p)
6
ML Lane 2(p)
16
GND
7
ML Lane 1(n)
17
AUX CH(n)
8
GND
18
Hot Plug Detect
9
ML Lane 1(p)
19
Return OP PWR
10
ML Lane 0(n)
20
DP PWR

AOC U2790PQU Specifications

General

3D	No
Pixel pitch	0.1554 x 0.1554 mm
Screen shape	Flat
Backlight type	W-LED
Display diagonal	27 \
Surface hardness	3H
Separate H/V sync	Yes
Adobe RGB coverage	80 %
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 99 kHz
Supported video modes	2160p
NTSC coverage (typical)	77 %
Viewable size, vertical	335.66 mm
sRGB coverage (typical)	108 %
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	68.58 cm
Viewable size, horizontal	596.73 mm
Digital vertical frequency	23 - 80 Hz
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 350, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 960, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	65 W
Power consumption (off)	0.3 W
Power consumption (typical)	35 W
Power consumption (PowerSave)	0.5 W
RMS rated power	2 W
Number of speakers	2
HDMI version	1.4/2.0
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
Headphone connectivity	3.5 mm
USB upstream port type	USB Type-B
VGA (D-Sub) ports quantity	0
Sustainability certificates	RoHS, ENERGY STAR
Feet color	Titanium
Certification	True
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Business
Pivot angle	0 - 90 °
Tilt angle range	-5 - 21 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Exterior finish type	Gloss
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Package depth	226 mm
Package width	703 mm
Package height	468 mm
Package weight	10600 g
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Cables included	AC
HDMI cable length	1.8 m
Compatibility	VESA-P1
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	199.5 mm
Width (with stand)	614.9 mm
Height (with stand)	535 mm
Weight (with stand)	6500 g
Depth (without stand)	43.5 mm
Height (without stand)	364.1 mm
Weight (without stand)	4650 g
