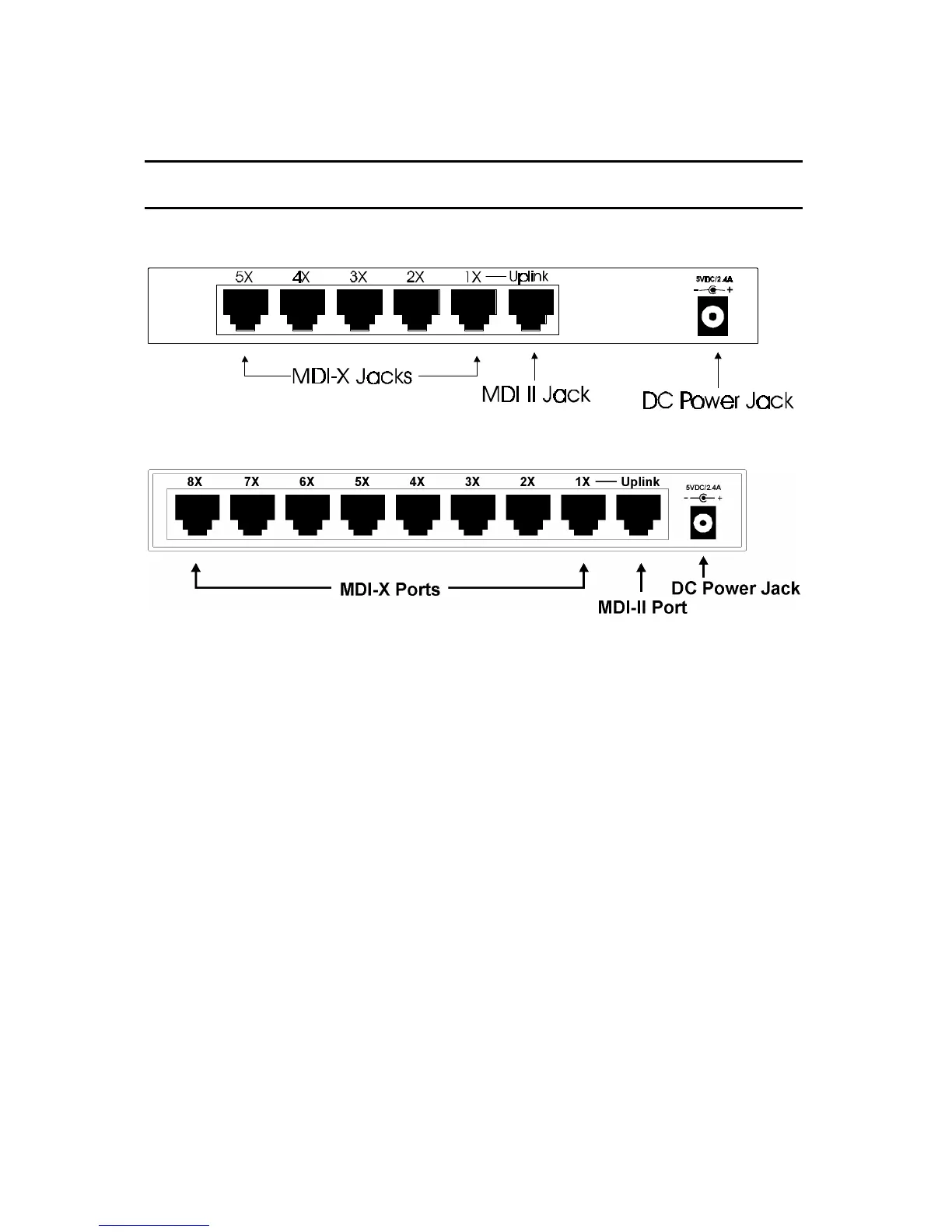

Rear Panel
AOW-605 5-port SOHO 10/100Mbps Switch Hub
AOW-608 8-port SOHO 10/100Mbps Switch Hub
• DC Power Jack: Power is supplied through an
external AC power adapter. Check the technical
specification section for information about the AC
power input voltage.
• MDI-X Jacks: Use these jacks to connect
stations to the hub. These are MDI-X (Medium-
Dependent Interface, Cross-wired) jacks, which
mean, you can use ordinary straight-through
twisted-pair cables to connect user machines and
servers to the hub through them. If you need to
connect another device with an MDI-X jack, such
as another hub or an Ethernet switch, you should
use a crossover cable, or make the connection
