AOpen XC Mini MP57 - Rear I;O Connector Diagram

7
Security Lock
eSATA
Port
Speaker out
Microphone in
PDA
Card Reader/Flash Memory
Web Camera
Joystick
Mouse/Keyboard
Fax/Scanner/Printer
Bluetooth Dongle
Wireless Lan Card
USB TV Tuner BOX
USB HDD
Power Cord
USB 2.0 Port
Expender
(USB HUB)
ADSL(Cable) Modem
Line in
(S/PDIF out)
DVI to HDMI
Connector
DVI to VGA &
DVI Adapter
HDMI TVProjector LCD MonitorCRT Monitor
Internet

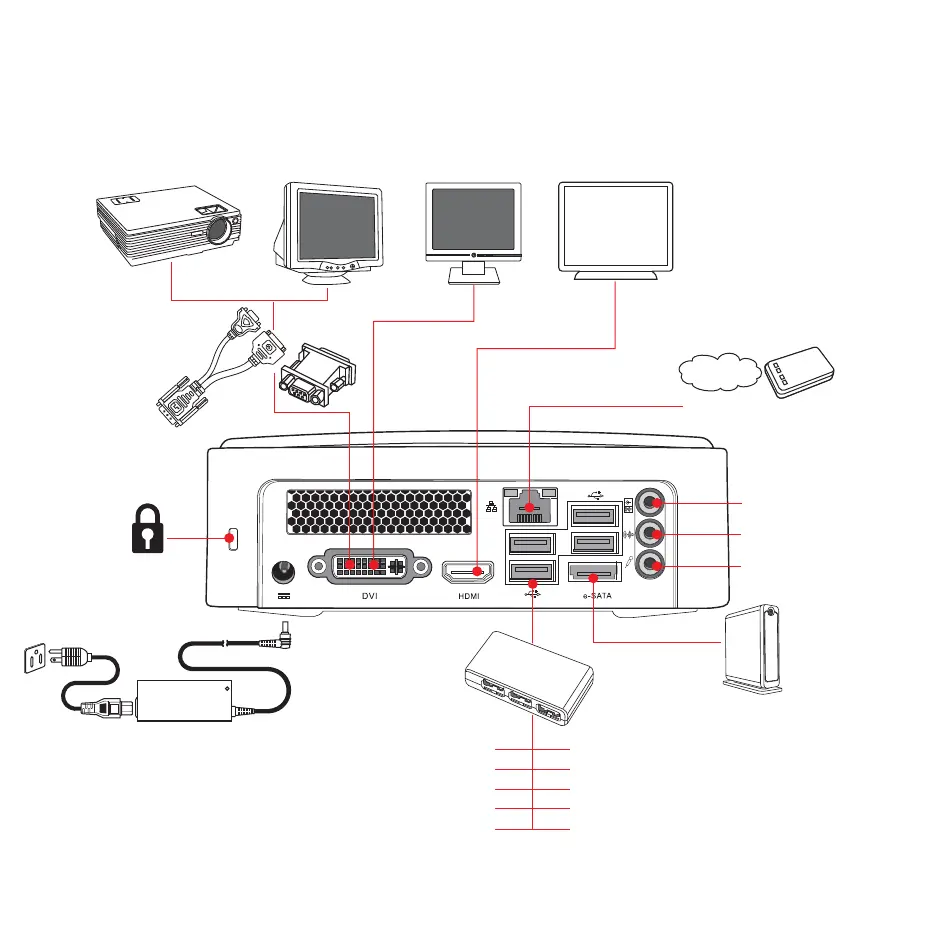

Rear side I/O Connector
