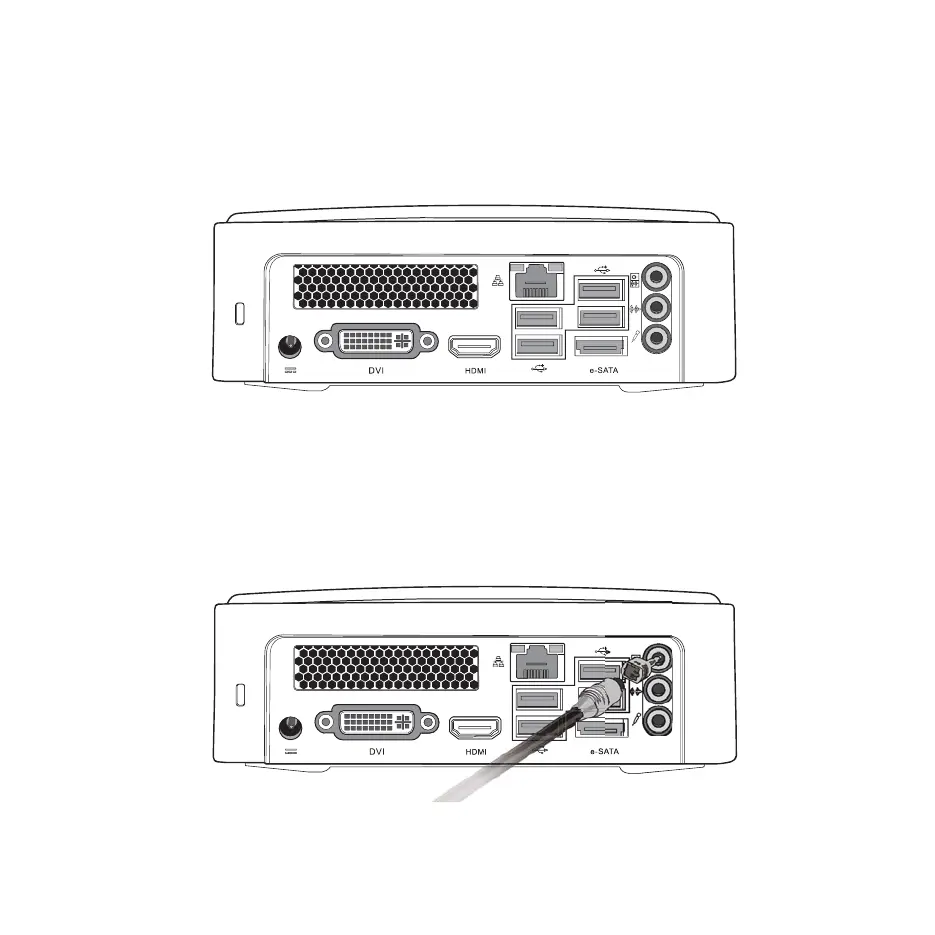

The Rear View
You can fi nd the connectors for the power source, DVI, network, USB 2.0, Line in (S/PDIF
out), Line out, and MIC as illustrated below.
S/PDIF cable connector
There is one S/PDIF cable connector in your package box. To connect to the back panel of your
machine correctly, please refer to the diagram as shown below:
