APART E-VOL20 - E-VOL120 Volume Control Overview; Please Avoid Guidelines; E-VOL120 Technical Specifications

WWW.APART-AUDIO.COM
Volume Control
OUTIN - 24V +
100Volt
100Volt
com
com
TOTAL LOUDSPEAKER POWER : 3 - 120 WATTS MAXIMUM !!!
USE ONLY HIGH IMPEDANCE
100VOLT LOUDSPEAKERS
E-VOL120
• Type : Euro
• Handling power : 120 watt
• Voltage : 100 Volt
• 24V priority : Yes (20mA)
• Attenuation steps : 11 + “0”
• Build-on box : E-MODON
• Dimensions (H x W x D) : 80 x 80 x 70 mm
• Weight : 0.3 Kg
• Colour : white
Introduction
Tech. Specifications
The APart E-VOL120 is a 100 Volt volume control that can handle up to 120 watt of power.
It is very durable due to the step by step attenuation in 11 steps + zero position.
The volume control is equipped with a 24V priority relais. This way a microphone call will always come through at
maximum volume, no matter what position the volume control is in.
The E-VOL120 is build on a universal chassis that can easily be integrated with
Gira, Jung and Euro. Different cover plates are available for the UK market.

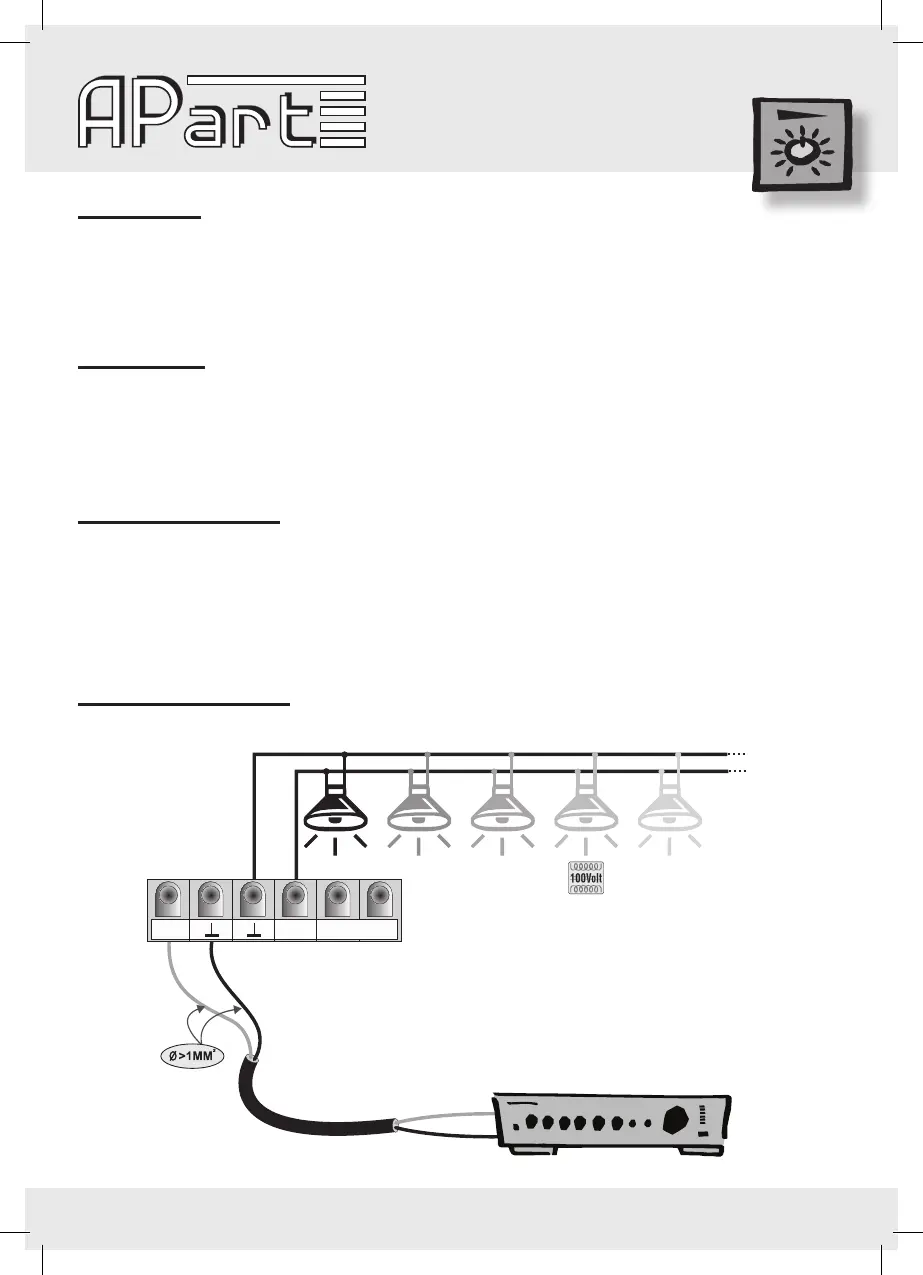

2-WIRE CONNECTION
Please avoid
- Please avoid any power overload, measure your speakerlines before connecting.
- In reality, a lot of speakers have much higher load than the value listed in their specication.
Our APART speakers are especially engineered within their specication, so no risk for overload when using them !
- Please never apply clipped or overloaded levels from your amplier to this volume control.
It may cause overheating and damage ! Our APART ampliers are automatically limited to avoid such
distorted signals !
