Mounting the speaker
1. Before mounting the base plate to the wall, test-fit the speaker-
bracket combination to see if you can reach the desired
mounting angle. Determine the position of the mounting holes
using the base plate as a template and drill the holes.
2. Keep in mind: minimum distance to ceiling for MASK4 is
45 mm and for MASK6 90 mm.
3. Place the shaft / ball to the snap-on plate and secure it with the
XXL nut. After this screw the butterfly nut on the shaft / ball.
4. Thread the assembled snap-on unit onto your MASK speaker as
The intelligent mounting system helps you to install the MASK4(T)
and MASK6(T) speaker in a safe and easy way.

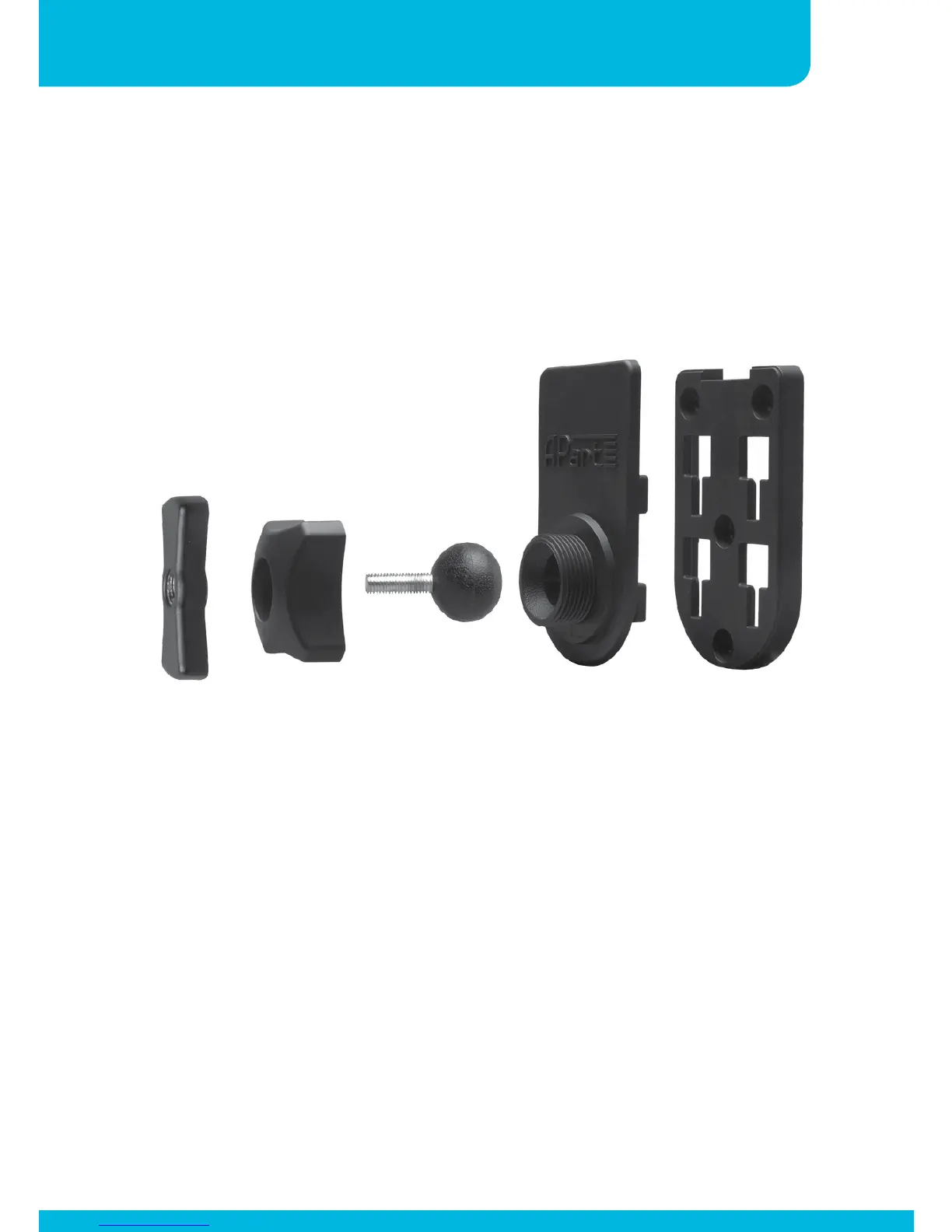

butterfly
nut
XXL
nut
shaft / ball snap-on
plate
base
plate
