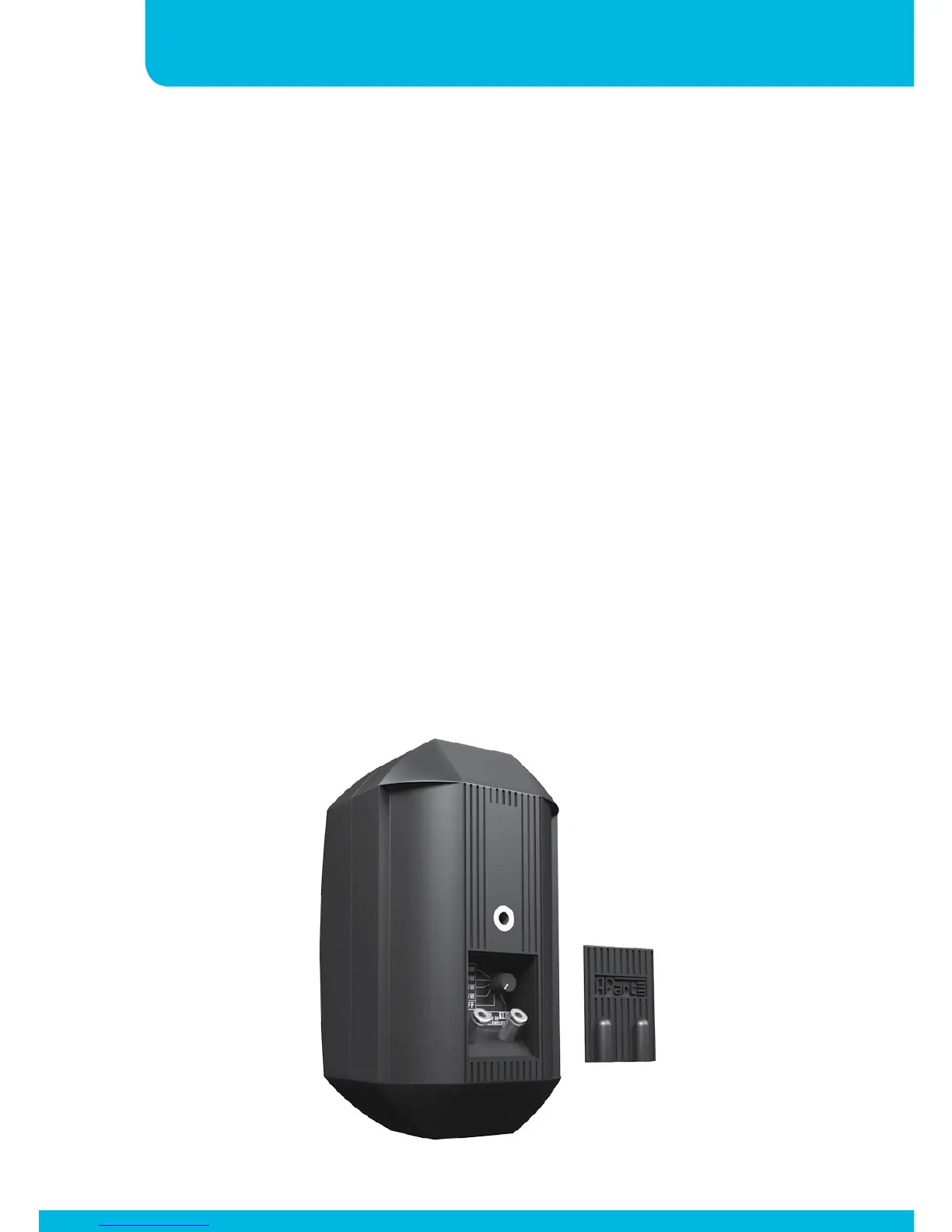

Connecting the speaker
The connectors can be found behind the rubber IP64 Protection
cover. The cables are connected with “push-terminals”.
far as it goes and tighten it firmly. Screw the butterfly nut to the
MASK speaker to secure it.
5. Select the desired voltage tap setting on the speaker. (MASK4T
and MASK6T only)
6. Hook the snap-on-plate into the base plate, insert the security
screw and tighten.
7. Position the loudspeaker correctly so that it is pointed to the
correct place in the room (remembering the 5% internal down
tilt of the speakers) and tighten the XXL-nut.
