2 Installation and Quick Start
How to Avoid Equipment Damage
Use bypass
mode for
Matrix-UPS
Matrix-UPS. Before you install the Management Card, put the
UPS into bypass mode to continue to provide power to the
load:

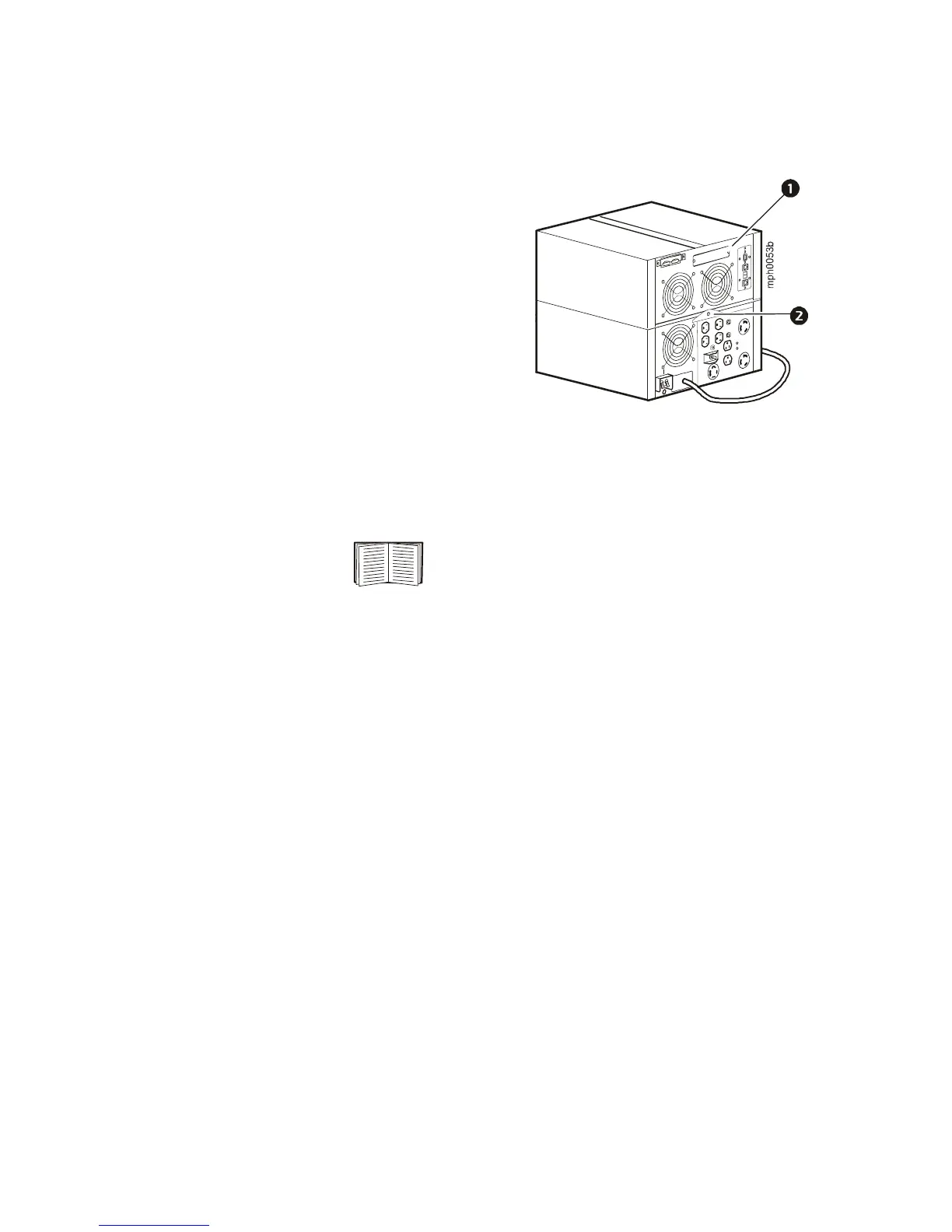

1. Loosen the
thumbscrew
at
the center of the
back of the UPS to
remove power
from the
electronics unit,
which contains the
slot
for the
Management
Card. The
isolation unit (the part of the UPS below the
thumbscrew) continues to provide power to the load.
2. Install the Management Card.
3. To restore power to the Electronics Unit, taking the UPS
out of bypass mode:
a. At the back of the UPS, tighten the thumbscrew
.
b. At the front of the UPS, press any one of the three
buttons below the LCD on the Electronics Unit. Then
respond to the prompt to take the UPS out of bypass
mode.
For instructions, see “Installation in a UPS”
on page 6.
