4 Automatic Transfer Switch - Installation and Quick Start

Installation

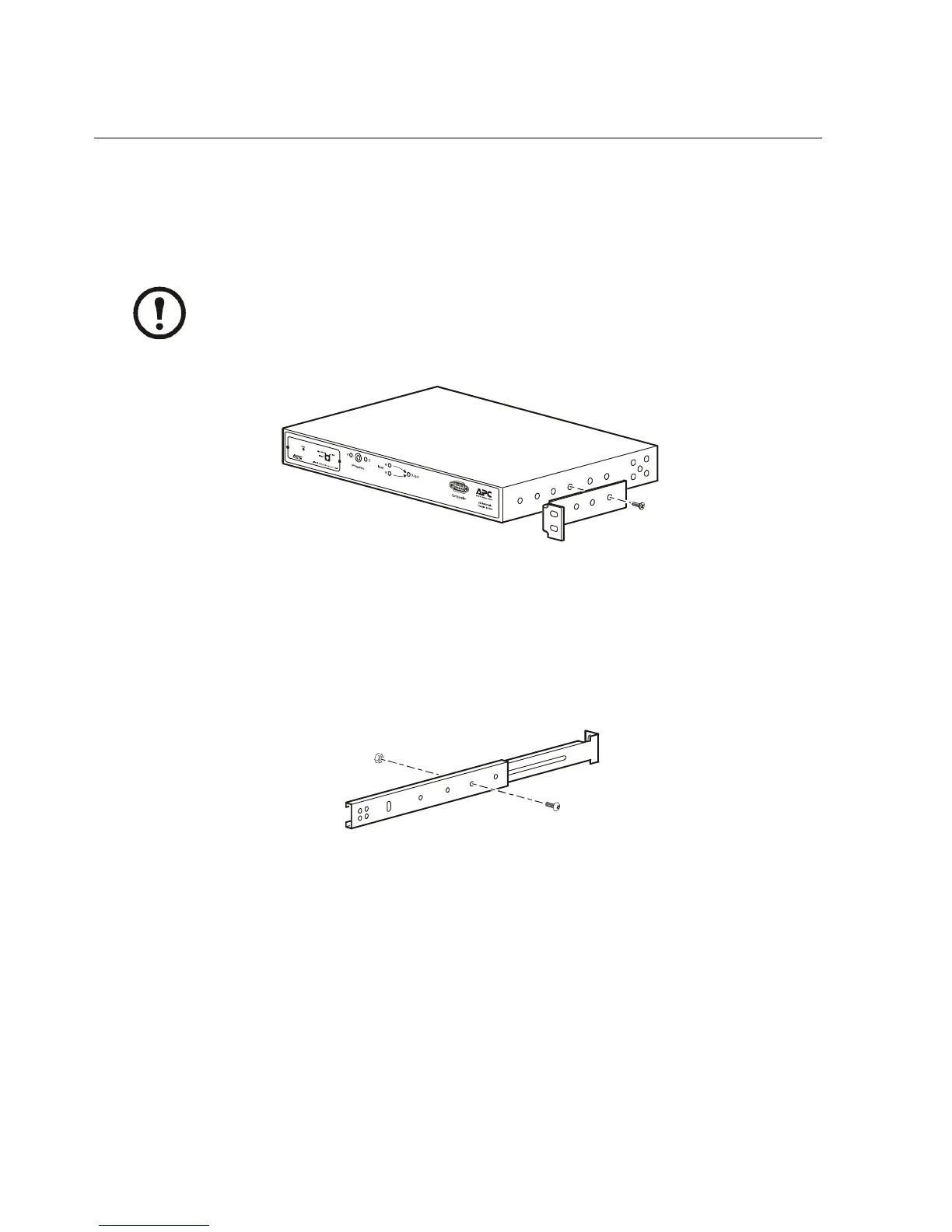

Attach mounting brackets

Attach the left and right mounting brackets to the unit, using two flat-head, Phillips screws (provided)

for each bracket.

Disassemble the adjustable brackets

The adjustable brackets are necessary only if you are using a four-post enclosure or rack. If you are

using a two-post rack, the Automatic Transfer Switch is supported by the mounting brackets alone.

1. Disassemble each adjustable bracket by removing the slide screw and nut.

2. Set the screws, nuts, and adjustable bracket segments aside.

Note

Place the brackets flush with the front of the rack to leave room for routing cables.

mph0096a

mph0014a
