APC Network Management Card Installation And Quick Start Manual


UPS Installation
Overview
The Management Card can be installed in an expansion slot in a
Smart-UPS, Matrix-UPS, or Symmetra UPS models. For a
Silcon DP300E series UPS, the Management Card installs in a
Triple Chassis (either an AP9604R or AP9604SR).
Step 1: Install
PowerChute
plus
If you are installing PowerChute
®
plus and a Management Card
for the same server, first install PowerChute plus. This allows
you to make sure that PowerChute plus is working properly
before you install the Management Card.

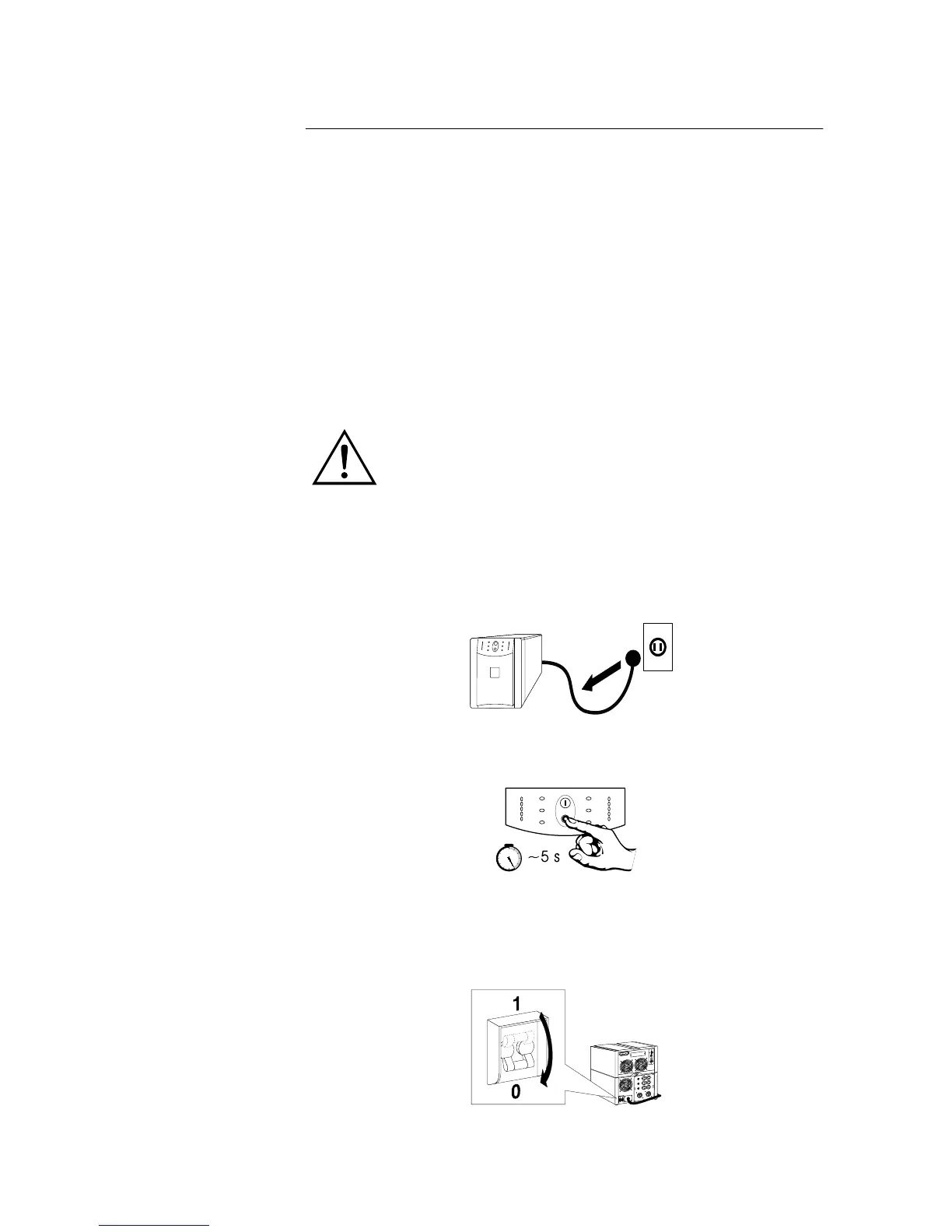

Step 2: Turn off
all power
(Smart-UPS or
Matrix-UPS)
Caution: Damage to the UPS or Management Card can result
if you do not remove all AC and DC power from a
Smart-UPS or Matrix-UPS model UPS. You do not
need to turn power off for a Symmetra UPS.
Smart-UPS
1. Turn off the equipment that connects to the UPS.
2. Disconnect the UPS from its AC input source.
3. Press the OFF button on the UPS for approximately five sec-
onds to turn off the DC (battery) power.
Matrix-UPS
1. Turn off the equipment that connects to the UPS.
2. Turn off the circuit breaker on the rear panel of the UPS.
Continued on next page

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
