APC Network Management Card User Manual

Page 14 - 34003641EN/AF
Card Settings
RS232 Download
66074
UPS
data
Reset
100 10
1 2
ON
ETHERNET
RS232
1 2
ON
ON
OFF
IP=
MAC=00E0D8FF855E
2. Installation
2.1 Installation

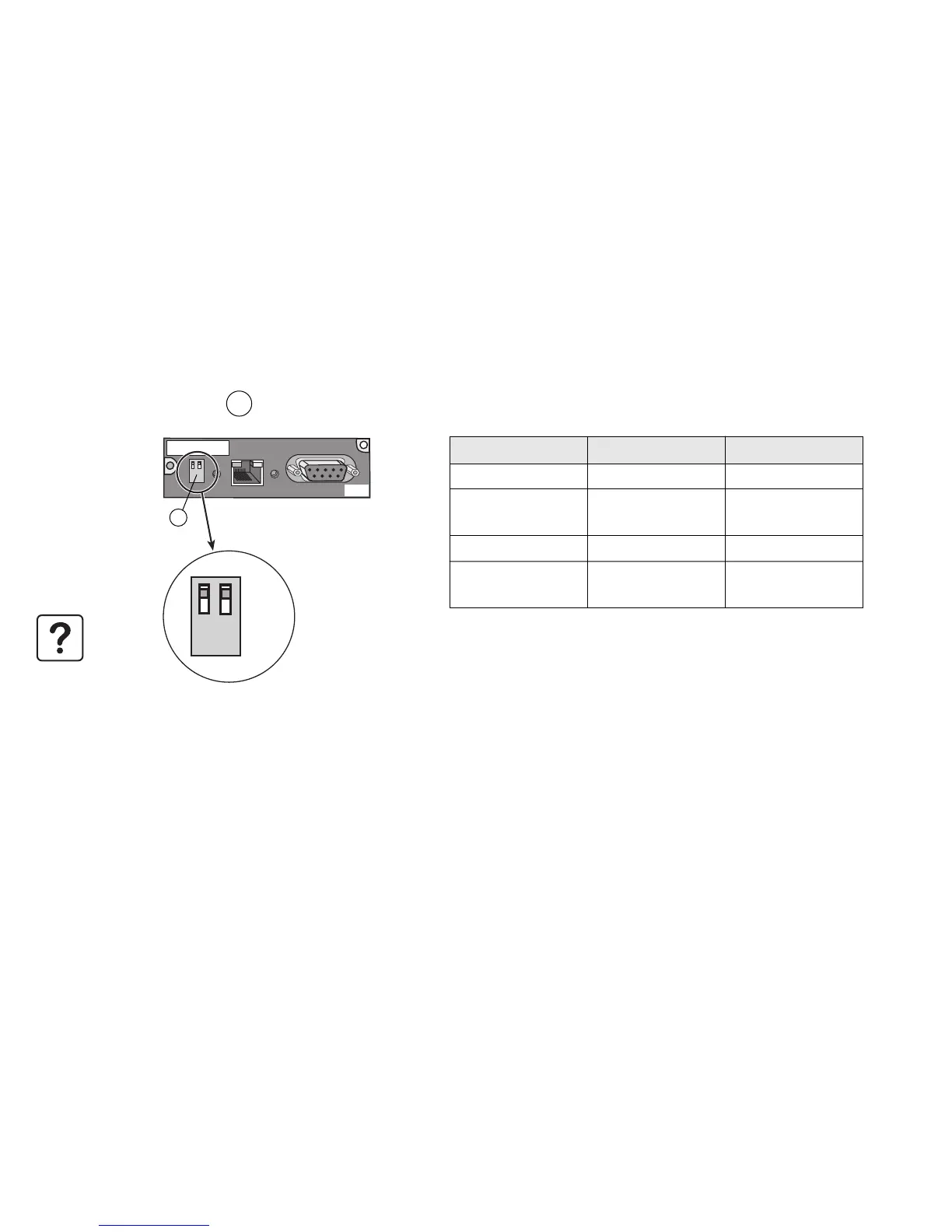

DIP-switch settings 7
7
Switch 1
ON
ON
OFF
OFF
Function
Reserved
Serial link
downloads enabled
Reserved
Operational mode
(default)
Switch 2
ON
OFF
ON
OFF
To get more information about downloading, see section 5.3.

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
