APC Network Management Card User Manual

34003641EN/AF - Page 15
U-Talk
Card Settings
RS232 Download
66074
UPS data
Reset
100 10
1 2 ON
ETHERNET
RS232
ASI
Card Settings
RS232 Download
66074
UPS
data
Reset
100 10
1 2
ON
ETHERNET
RS232
Us/Out/Ausg
10A/250V
2
U-Talk
MultiSlot
ASI
IP=
MAC=00E0D8FF855E

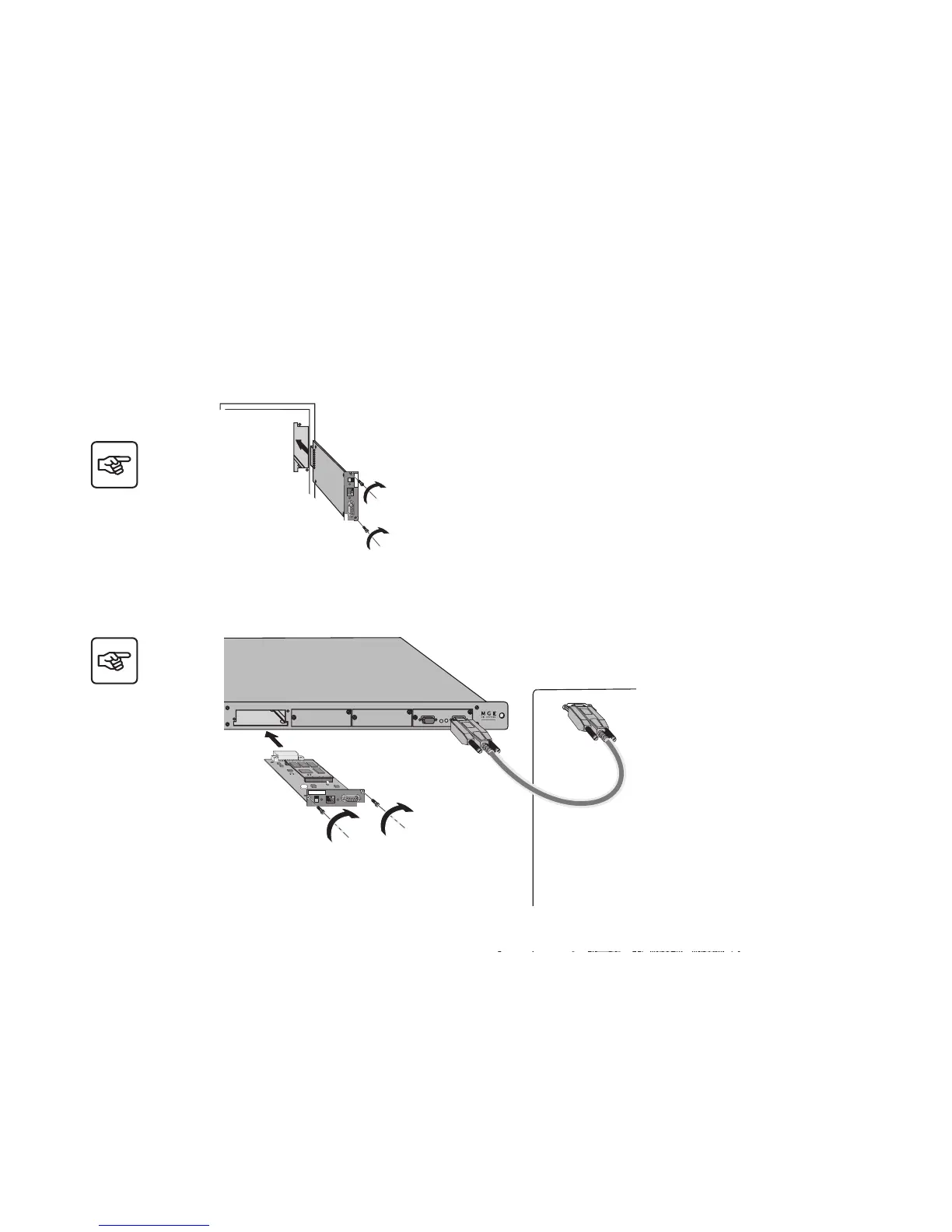

2. Installation
Installation in a UPS or STS equipped with slots
It is not necessary to turn the UPS or STS
off.
1 - Using a screwdriver, remove the cover
from a free slot in the UPS or STS.
2 - Insert and secure the communication
card in the UPS or STS.
Installation in a MultiSlot module (UPS only)
1 - Using a screwdriver, remove the cover
from a free slot in the MultiSlot module.
2 - Insert and secure the communication
card in the MultiSlot module.
UPS
or
STS
UPS

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
