2. Installation
2.2 Environment Sensor installation
Refer to the 34003783EN installation manual included in the Environment Sensor kit (66846).
2.3 Connection of the Ethernet link

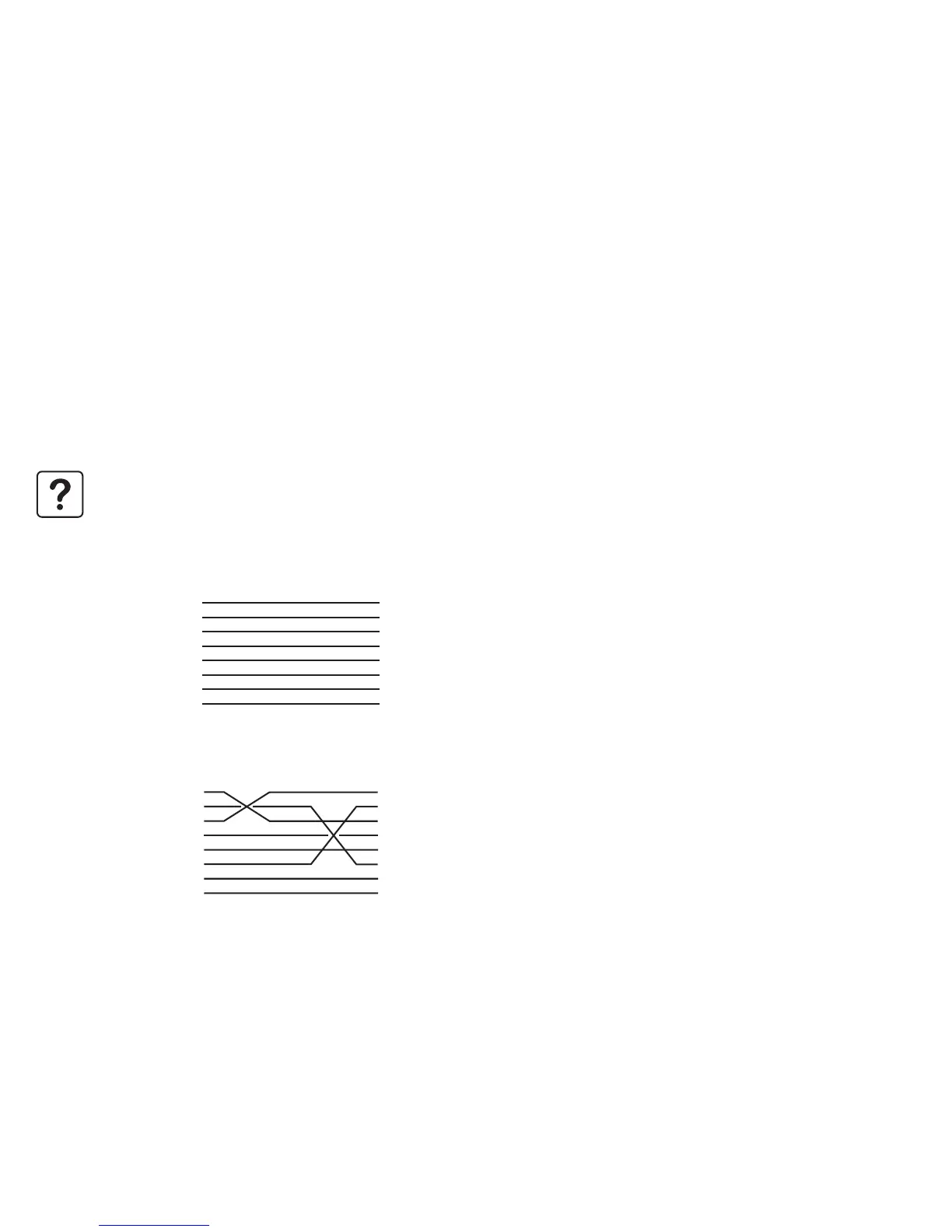

Crossover 10/100 Base-T cable
Connection to a computer
If the Network Management Card is
connected to a computer, use a crossover
cable.
To make use of the full potential of your installation, we recommend using shielded cables with shielded RJ45
connectors.
Connection to a hub
If the Network Management Card is
connected to a hub, use a straight-through
cable.
Straight-through 10/100 Base-T cable
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
RJ45 RJ45
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
RJ45 RJ45

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
