APC Network Management Card User Manual

34003641EN/AF - Page 17
Card Settings
RS232 Download
66074
UPS
Data
Reset
100 10
1 2
ON
ETHERNET
RS232
IP=
MAC=00E0D8FF855E
Card Settings
RS232 Download
66074
UPS
Data
Reset
100 10
1 2
ON
ETHERNET
RS232
IP=
MAC=00E0D8FF855E
2. Installation

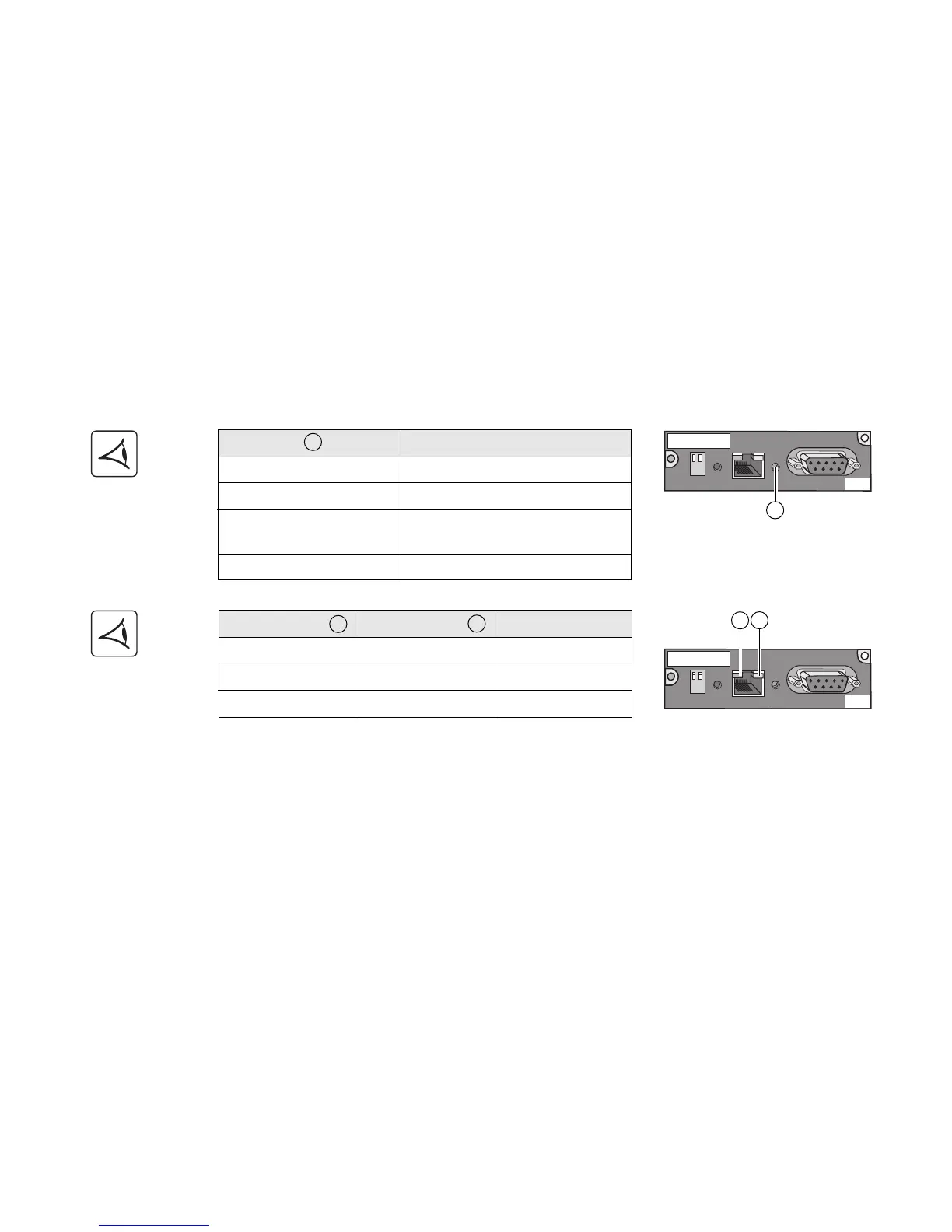

2.4 Indications
Green LED 6 UPS Data
Slowly flashing (1 s)
Rapidly flashing
Random flashing
Off
Function
Start phase
Dialogue with the UPS / STS / MultiSlot
Data exchange with the UPS / STS /
MultiSlot
Card fault
6
Green 100 LED 2
Slowly flashing (1 s)
Off
Off
Function
100M Ethernet traffic
10M Ethernet traffic
Ethernet not connected
Orange 10 LED 3
Off
Slowly flashing (1 s)
Off
2
3
The card is operational approximately 30 seconds after insertion.

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
