Page 24 - 34003641EN/AF

4. Operation

4.1 Operating test following installation and configuration

◗ Launch the "Run" command in Windows on a station connected to the same subnet.

◗ Enter ping @IP (example: ping 172.17.10.21).

If no answer is sent by the card, check the network parameters.

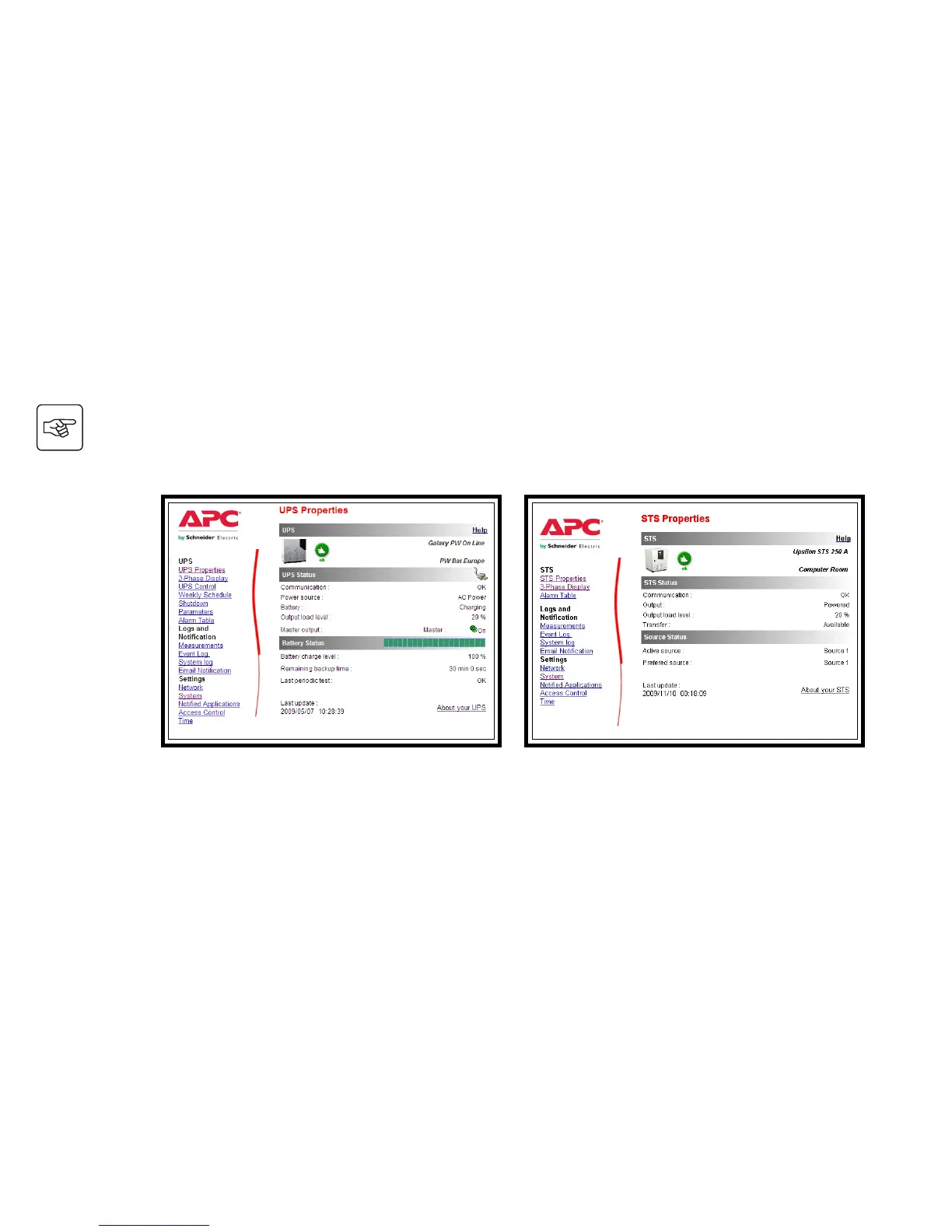

◗ Use the browser to go to the URL address http://@IP/ and check the page for the "UPS Properties" or "STS Properties".
