APC Symmetra LX Operation Manual

CHAPTER 3: MENU COMMANDS
6
Bypass Operation
The bypass operation can be performed manually using the Maintenance Bypass Switch, or automatically using
the PowerView to issue Commands.
Command Bypass Procedure:
The Command Bypass operation is done using commands on the PowerView display.
This procedure is done when you want to bypass the UPS to directly supply power to the load while the
UPS and input circuit breaker are turned ON.
Follow the steps below to directly connect the output of the UPS to the branch circuit (mains) using the command
bypass operation.






>Control Logging
Status Display
Setup Diags
Accessories Help
>UPS into Bypass
Do Self Test
Simulate Power Fail
Graceful Reboot 
Confirm:
UPS into Bypass
NO, ABORT
> YES, UPS into Bypass
UPS IS BYPASSED
Press any key...

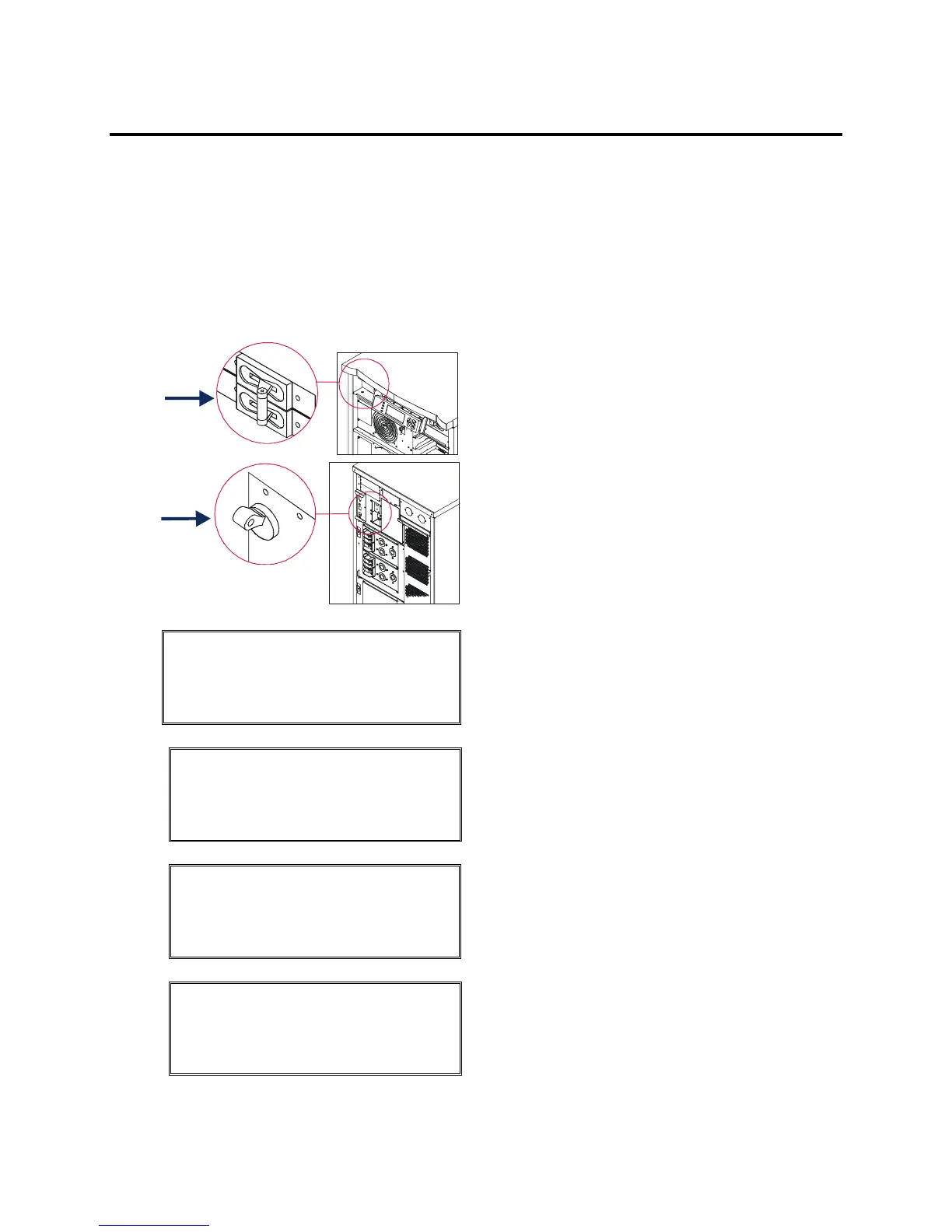

1. Ensure that the input circuit breaker  is
turned ON
.
2. Ensure that the System Enable switch
 is
turned ON.
3. Use ‘ESC’ to view to Main Menu
, and then
select CONTROL.
4. Scroll down and select the UPS INTO
BYPASS
 command.
5. Confirm choice by selecting YES
.
6. You will see message
. In addition, the
green LOAD ON and yellow BYPASS status
indicators will be ON.

APC Symmetra LX Specifications

General

Form factor	1U
Certification	CSA, UL 1778
Product color	Silver
Battery voltage	120 V
Battery capacity	864000 mAh
Battery technology	Sealed Lead Acid (VRLA)
Dimensions (WxDxH)	210 x 546 x 140 mm
Battery life	3 year(s)
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	85079080

Weight and Dimensions

Weight	29100 g
Package weight	32280 g
