16
A Switched Fused Connection Unit to BS 1363 Part 4 is
recommended
The fuse must be rated at 30 Amps.
The wires in the mains lead are coloured in accordance
with the following code:
Brown = L - Live
Blue = N - Neutral
Green and Yellow =
- Earth
The connection point must be placed in a position adjacent
to the appliance so as to be readily accessible for an
engineer in the event of a breakdown.
Disconnect the appliance from the mains supply before
carrying out any kind of maintenance or cleaning.

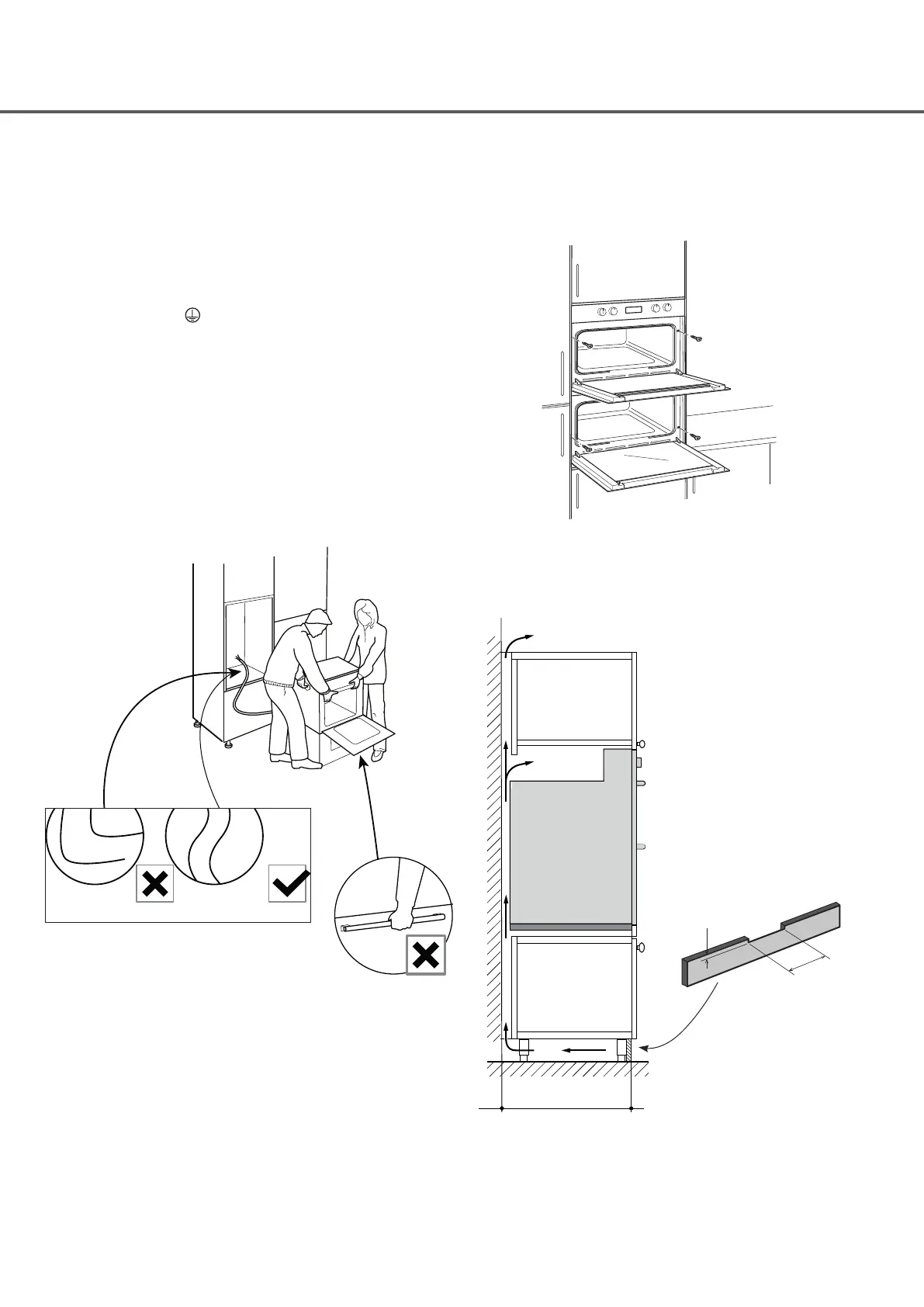

FIXING THE DOUBLE OVEN
Lift oven into housing unit as shown below, do not lift
the oven with the handle otherwise the glass door might
shatter.
Once the oven has been lifted into place insert the
4x plastic washers into the holes located within the sides
of the metal casing of the oven as shown and secure with
4x screws [Ø4mm x 25mm].
Also ensure that you adjust the furniture doors adjacent to
the sides of the oven so there is a 5 - 7mm gap between
them, otherwise heat displaced from the oven might
damage the furniture door.
VENTILATION
An air circulation slot that should be cut into the plinth if
tted. See below for air circulation requirements.
It is essential when installing
your oven there is adequate
air circulation around the
appliance to ensure the correct
operation of the appliance.
Inadequate air circulation will
greatly impair the operation of
the appliance and can affect
surround cabinets due to the
rise in temperature.
570mm
200mm
10mm
THE APPLIANCE IS NOW READY TO USE.
