2500+ Bus Compressor API
9.0 Side Chain Input
The 2500+ provides access to the side chain to allow external keying of the gain reduction via the
SIDE CHAIN input jack on the rear panel.
SIDE CHAIN: Balanced, line-level input
• ¼” TRS connector
• Tip=+, Ring=-, Sleeve=ground
NOTE: Only active when TYPE is set to NEW.

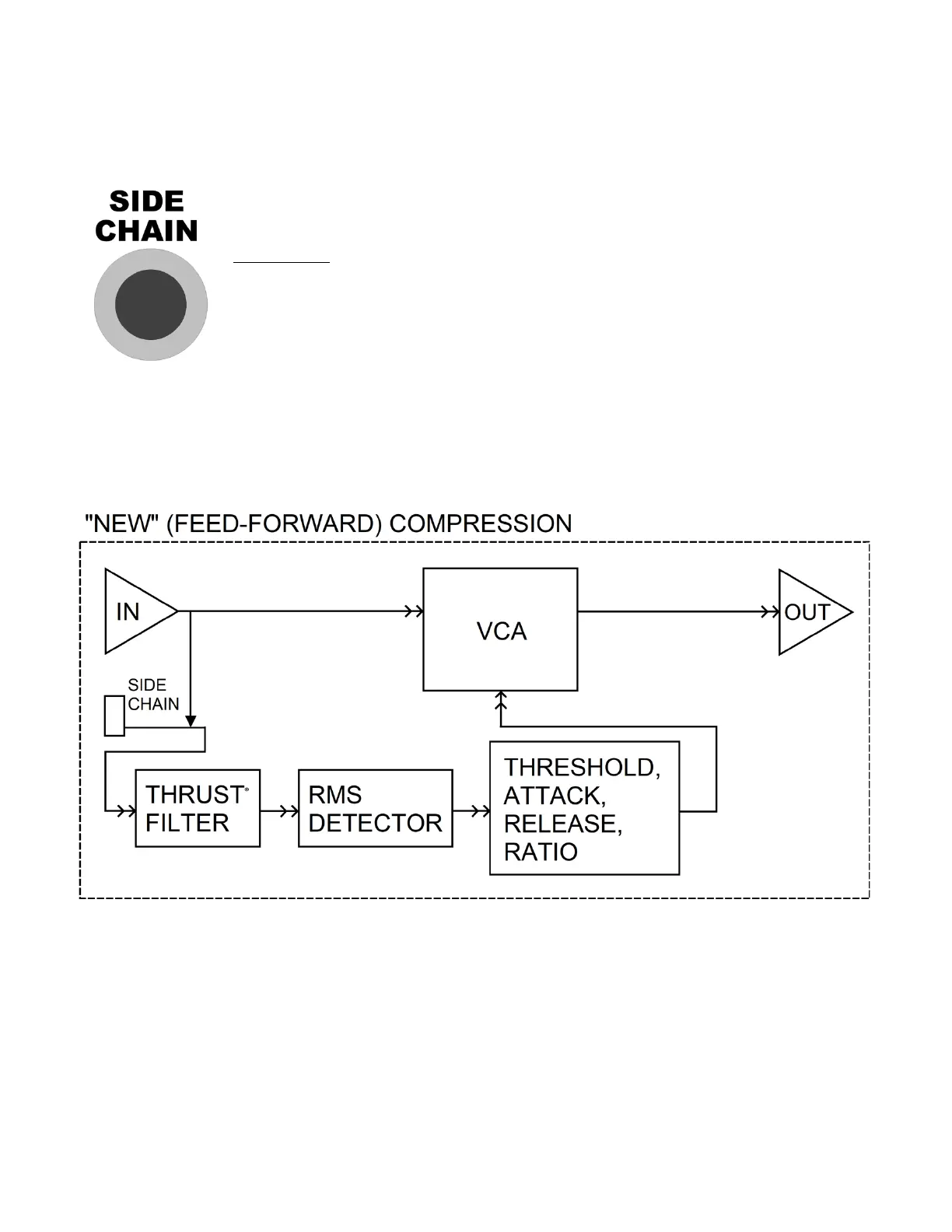

When the TYPE control is set to NEW, the signal arriving at the INPUT connector is routed to the RMS
detector via the SIDE CHAIN input jack. When a plug is not inserted in the SIDE CHAIN input jack, the
input signal continues to the RMS detector. When a plug is inserted the SIDE CHAIN input jack, the
input signal is replaced with the external signal.
