ARCHMI-8XX Series User Manual
1.8 VESA Mounting
The ARCHMI series is designed to be VESA mounted as shown in Picture. Just
carefully place the unit through the hole and tighten the given screws from the rear
to secure the mounting.

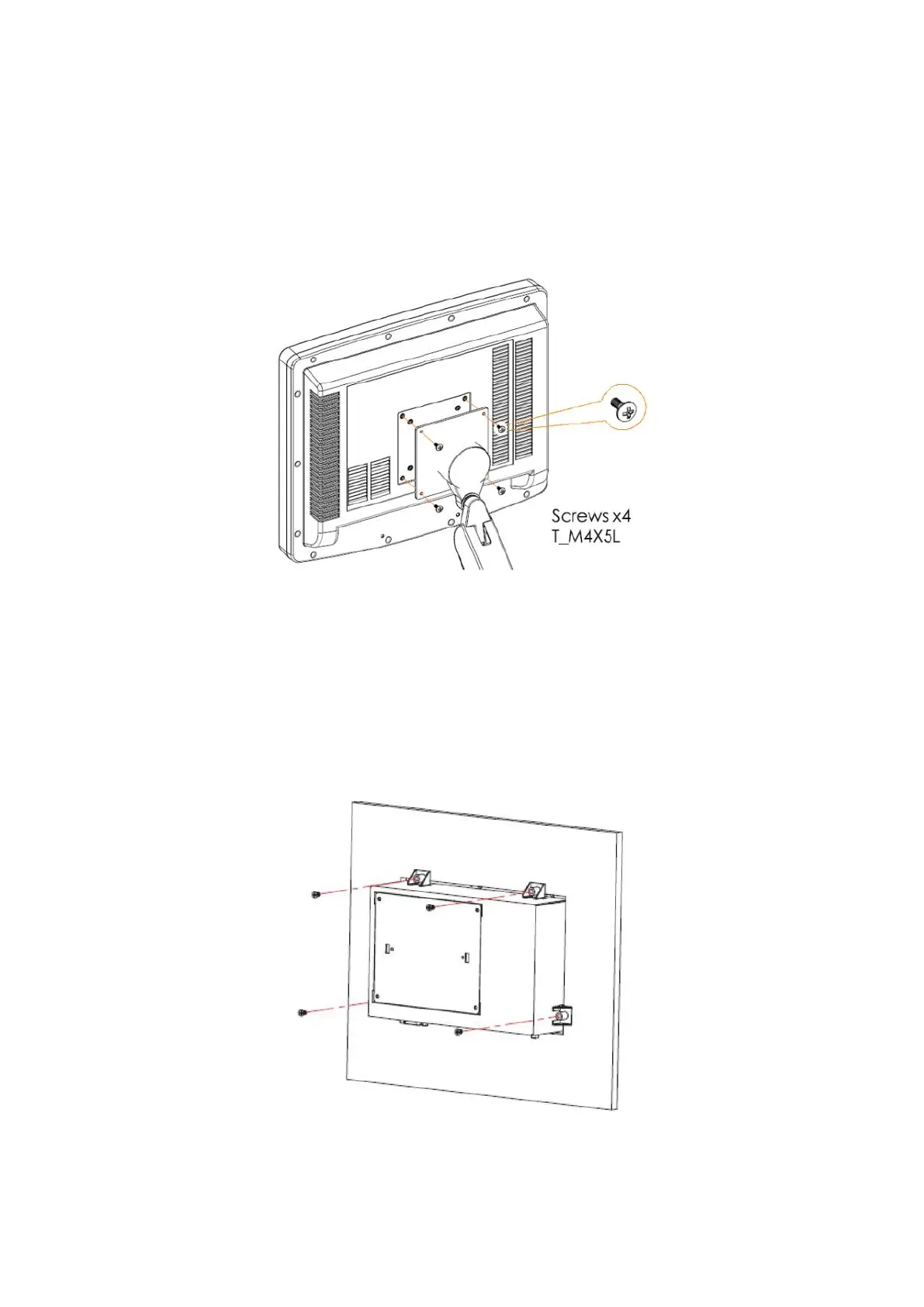

Figure 1.22: ARCHMI Series VESA Mounting
1.9 Panel Mounting
There are four holes located along the four sides of the HMI. Insert the clamp from
the four sides and tighten them with the nuts provided.
Figure 1.23: ARCHMI Series Panel Mounting
