Aplex ARCHMI-807 - Jumpers and Connectors Location; Figure 2.2: Jumpers and Connectors Location-Board Top; Figure 2.3: Jumpers and Connectors Location-Board Bottom

ARCHMI-8XX Series User Manual
32
2.3 Jumpers and Connectors Location

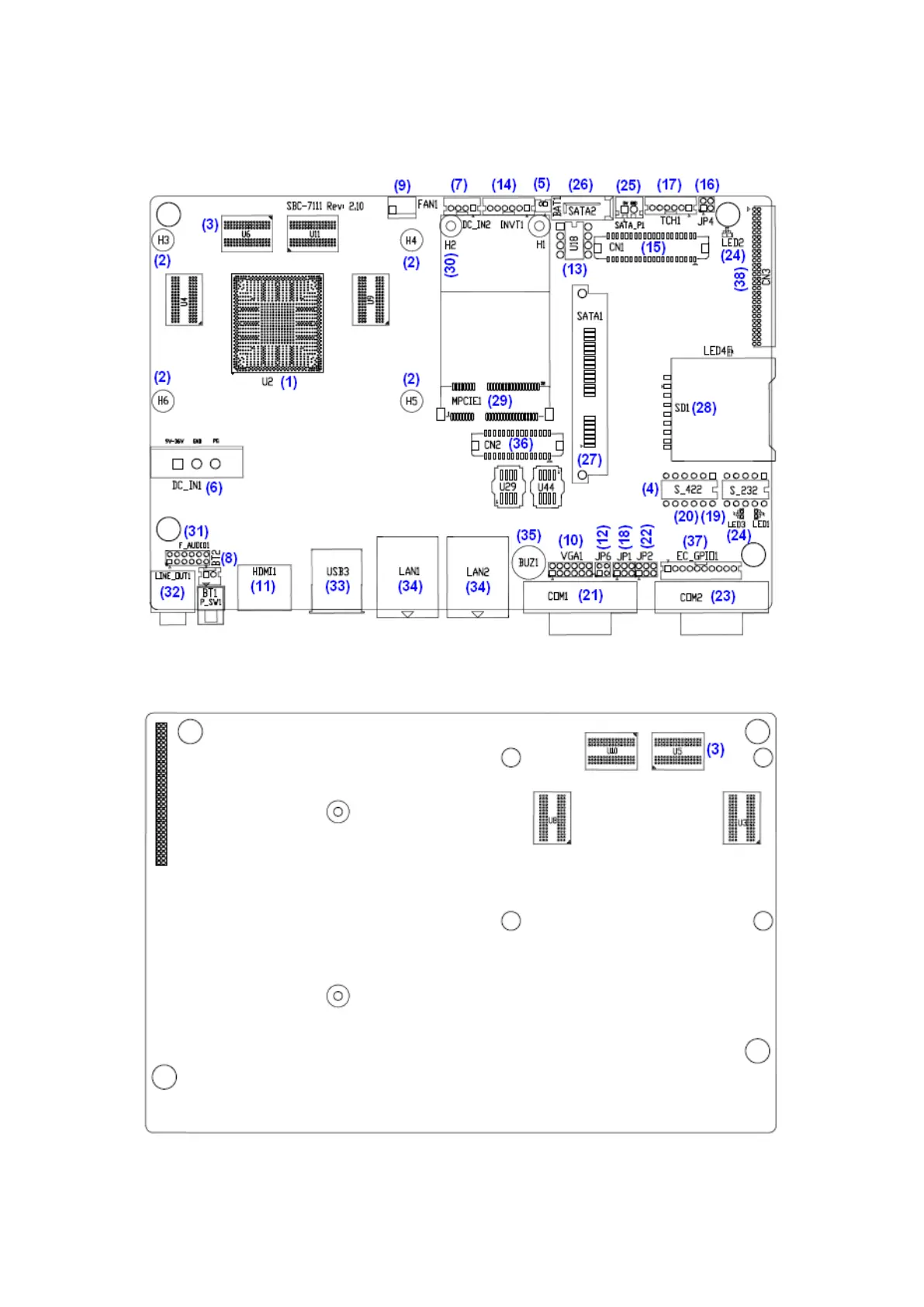

Figure 2.2: Jumpers and Connectors Location- Board Top
Figure 2.3: Jumpers and Connectors Location- Board Bottom
