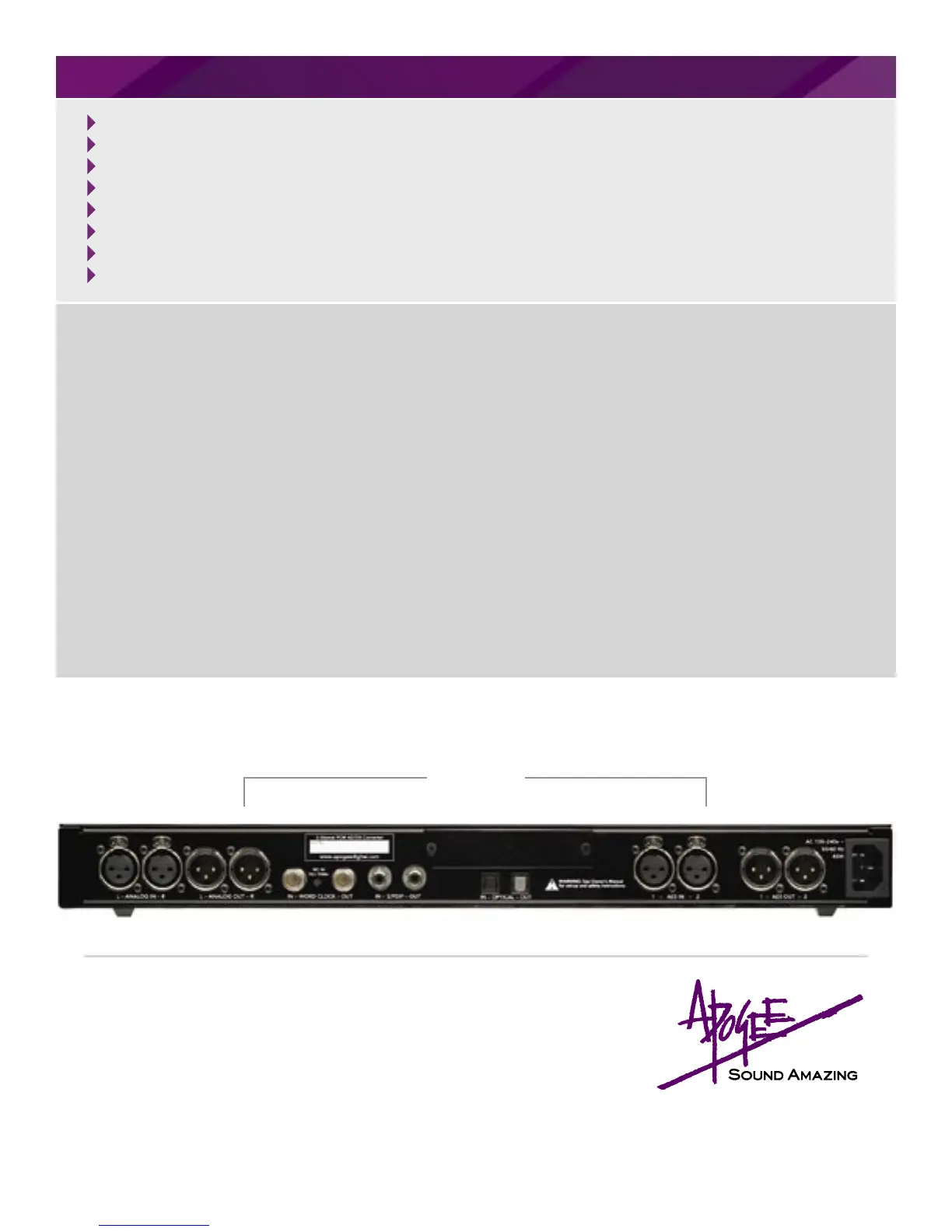

Rear Panel
ROSETTA 200 Features & Specifications (preliminary)
2 channels of premium 24-bit AD/DA conversion
Sample rates up to 192kHz with Apogee’s “Intelliclock”
2 channels of AES, S/PDIF (coax & optical), and ADAT/SMUX I/O MIDI I/O
Optional FireWire expansion card for compatibility with OS X, and Windows XP (X-FireWire card)
Optional expansion card for direct connection to Pro Tools HD & Mix systems (X-HD card, X-Digi-Mix card)
“Soft Limit” for maximum digital level without overs
“CODA”: The “Aptomizer” Level Normalizer, Sample Rate Conversion (SRC), and Apogee’s “UV22HR” for superior dither to 16-bit
Full channel metering
For more info: 310 915.1000
www.apogeedigital.com/rosetta200
Due to on-going development Apogee reserves the right to change all information and specifications without notice.
APOGEE DIGITAL • Santa Monica, CA • www.apogeedigital.com • 310 915.1000
© 2004 Apogee Electronics Corporation. All trademarks herein are property of their respective holders.
Doc: ROSETTA200_DS, APR/04 • PRINTED IN USA
Inputs:
• Analog In 1-2: Balanced, XLR connectors
• AES in: x 2, transformer balanced, XLR connectors
• S/PDIF In: Toslink and Coax
• ADAT/SMUX In: Toslink
• WC In: BNC 75 ohm
Outputs:
• Analog Out 1-2: Balanced, XLR connector.
• AES Out: x 2, transformer balanced, XLR connector
• S/PDIF Out: Toslink and Coax
• ADAT/SMUX Out: Toslink
• WC Out: BNC 75 ohm
Specs:
• Sample rates: 44.1 - 48k, 88.2 - 96k, 176.4 - 192k (+/-10%);
• Frequency response: 10 ˆ20k (+/- 0.2 dB) at 44.1k
• Analog max levels: +6dBV, +20dBu, +24dBu max
(set by internal jumper)
• Dynamic range: 114 dB A weighted (AD + DA)
• THD+N: -105 dB (AD), -103 dB (DA)
• Power: 90-250 VAC, 50-60Hz, 45Watt
Prototype version shown without MIDI connectors
