AIR CONDITIONING
—
HEATER
CONTROLS
Fan
comes
on automatically
when
any mode
is selected.
hree
speeds
and off
positions
are provided.
Modes:
MAX
AC
— Recirculates
cooled
interior
air. Set
top bar at
MAX
A/C
and bottom
bar at
COOL.
A/C
—
Cools
incoming
fresh
air.
Set top bar at
A/C and bot-
tom
bar at
COOL.
' NOTE."
IfA/C
is desired
on windshield
for demisting
on a
humid
day, set
top bar on DEF
and
bottom
bar on
COOL.
VENT — Opens exterior
vent door for the introduction
of
fresh
ambient air.
Set top
bar at
VENT and bottom bar at
COOL.
HEAT
— Turns on heater and
directs warm air through
registers
under dash. Set
top bar on HEAT and bottom bar on
WARM.
NOTE: Ifyou prefer heat out the dash face registers, set
top
bar
on
VENT
and
bottom bar
on
WARM.
DEF —- Directs air through registers in top of dash to de-ice
windshield.
Set top bar on DEF and bottom bar on
WARM.

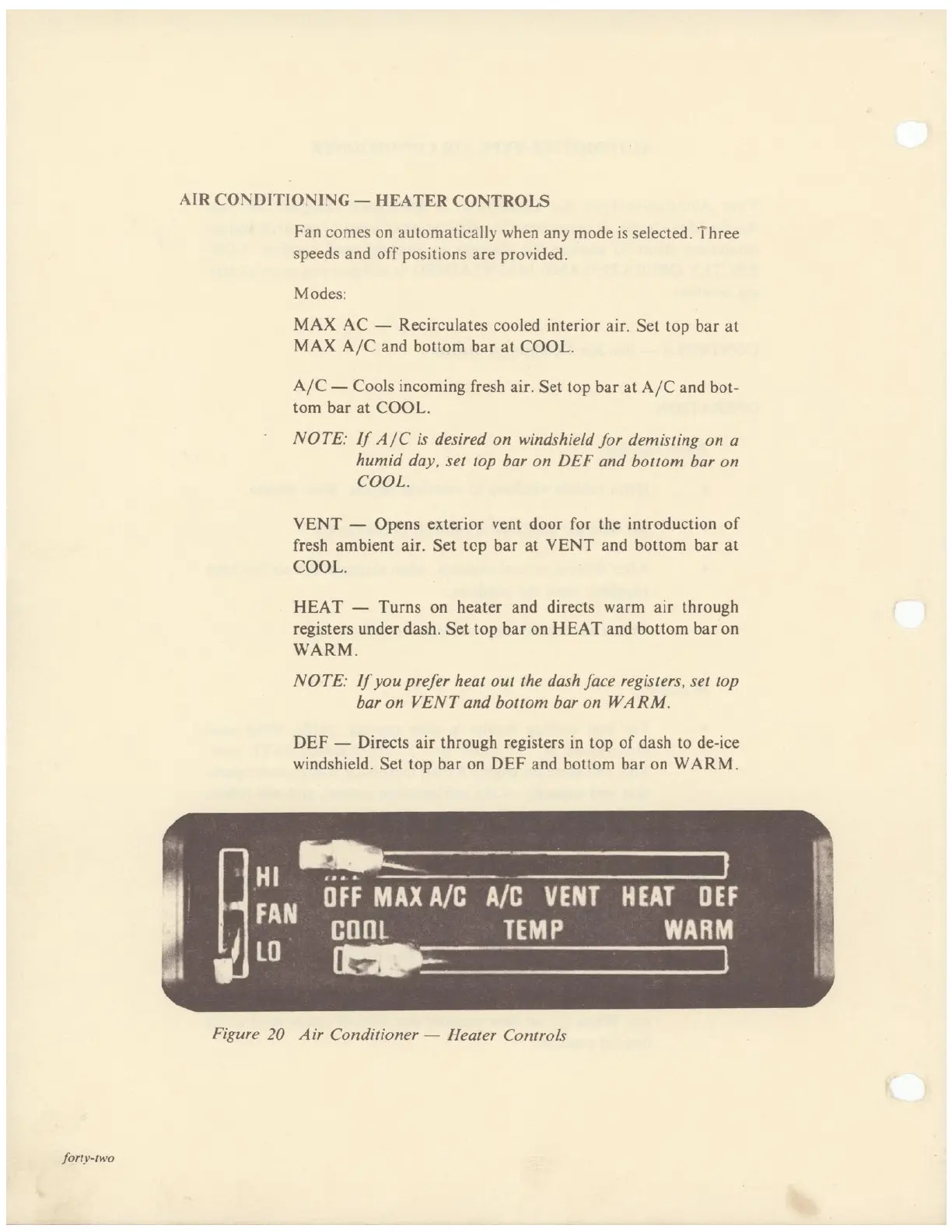

Figure
20
Air
Conditioner —
Heater
Controls
