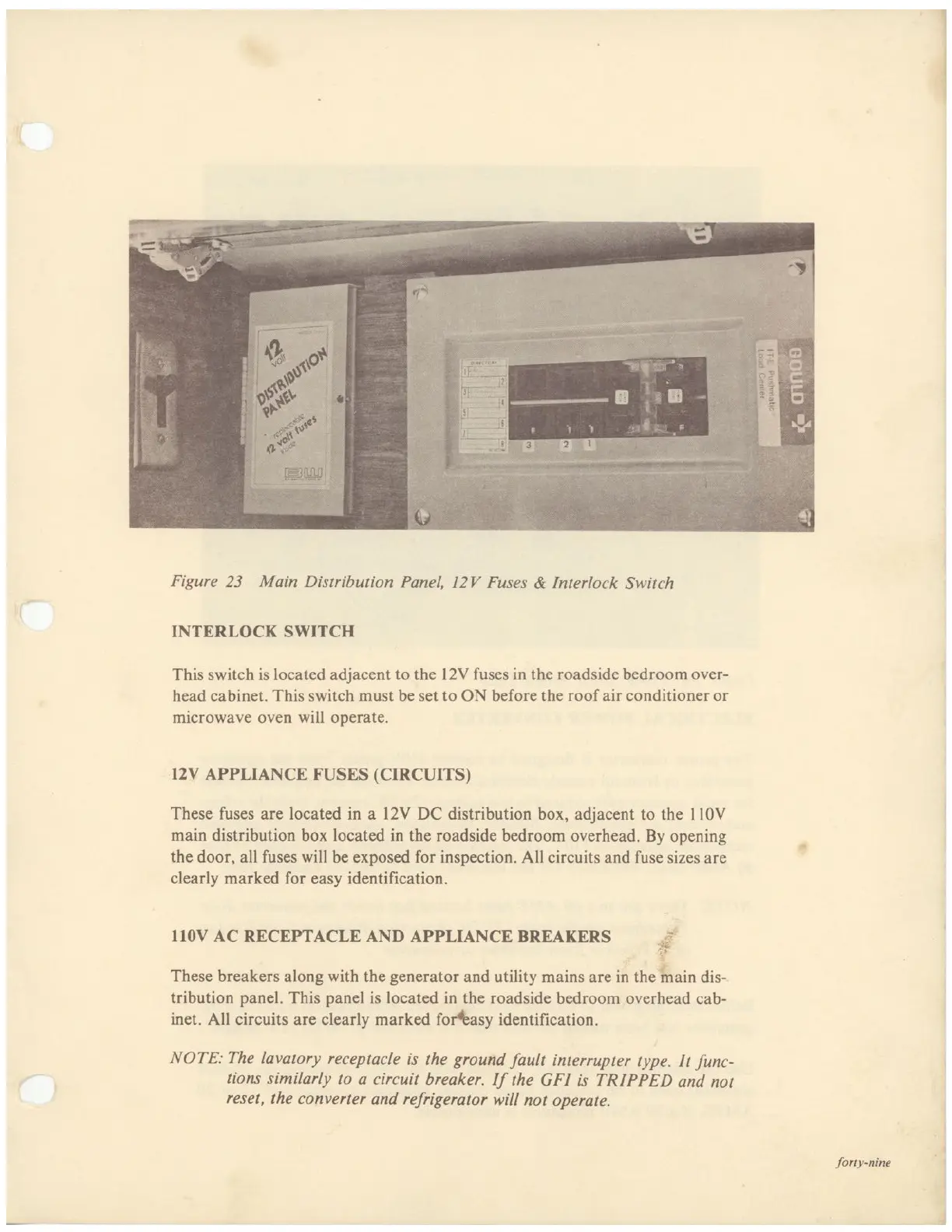

Figure
23
Main
Distribution
Panel,
12V Fuses
&
Interlock
Switch
INTERLOCK
SWITCH
This switch is located adjacent to the
12V fuses in the roadside bedroom over-
head cabinet.
This switch must be set to ON before
the roof air conditioner or
microwave oven will operate.
12V APPLIANCE
FUSES
(CIRCUITS)
These
fuses are located in a 12V DC
distribution box, adjacent
to the 110V
main
distribution box located in the roadside
bedroom overhead.
By opening
the
door,
all
fuses
will be exposed for inspection.
All circuits and fuse
sizes are
clearly
marked for easy
identification.
110V
AC RECEPTACLE
AND APPLIANCE BREAKERS
These breakers
along with the generator and utility
mains are in the
main dis-
tribution panel. This
panel is located in the roadside
bedroom overhead
cab-
inet. All circuits are
clearly marked for‘easy identification.
NOTE:
The
lavatory
receptacle
is the
ground
fault
interrupter
type.
It
junc-
tions similarly
to
a circuit
breaker.
If
the
GFI
is TRIPPED
and
not
reset,
the converter
and refrigerator
will
not
operate.
forty-nine
