fty

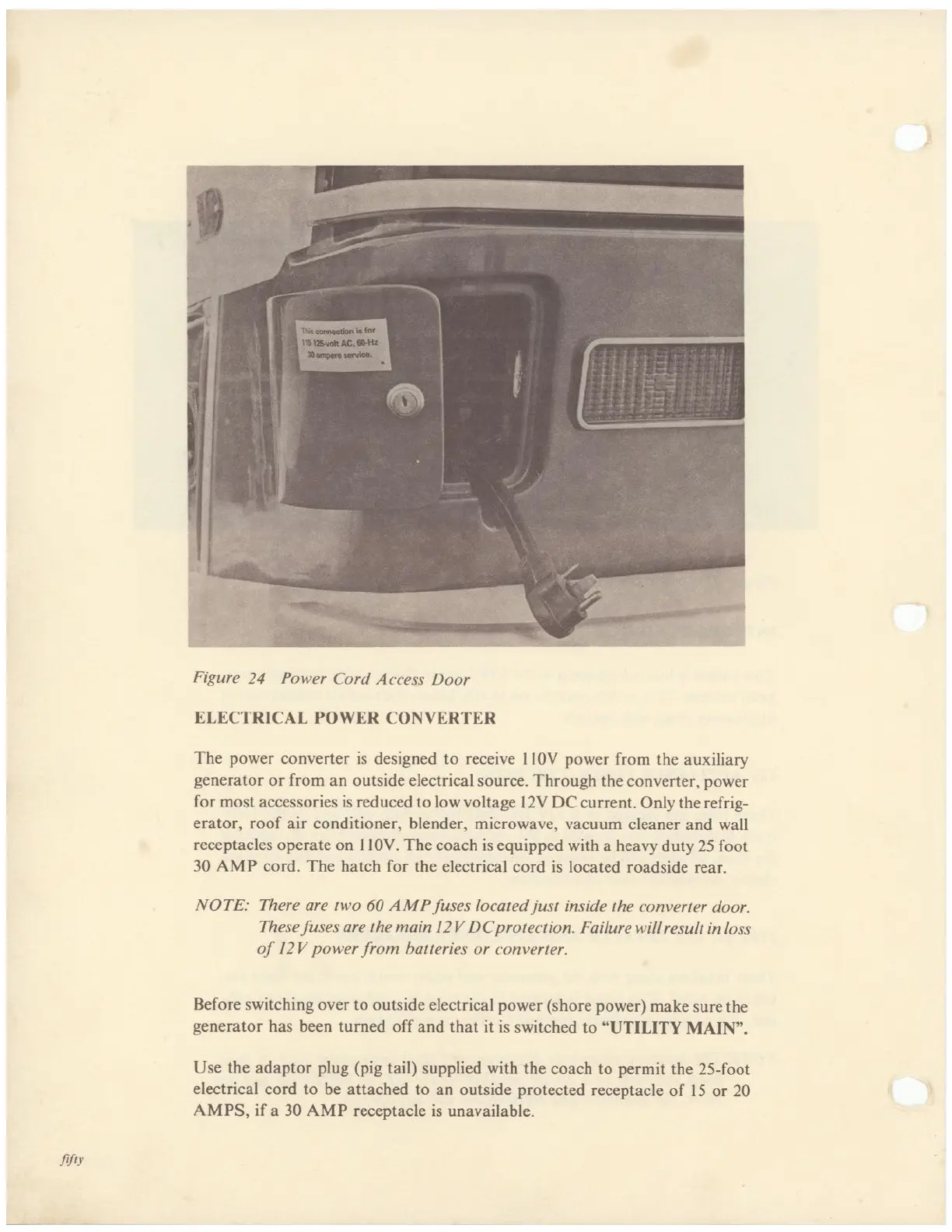

Figure
24
Power
Cord
Access
Door
ELECTRICAL
POWER CONVERTER
The
power
converter is designed
to receive ll()V
power from
the auxiliary
generator
or from an
outside electrical
source. Through
the converter,
power
for
most accessories
is reduced
to low voltage
12V DC current.
Only the refrig-
erator, roof air conditioner,
blender,
microwave,
vacuum
cleaner
and wall
receptacles operate
on l 10V. The coach
is equipped
with
a heavy duty
25 foot
30 AMP cord. The hatch
for the electrical
cord
is located
roadside
rear.
NOTE: There are two
60 AMPfuses
located
just inside
the
converter
door.
Thesefuses
are the main I2 V
DCprotection.
Failure
will
result
in
loss
of I2 V power from
batteries
or converter.
Before switching over to
outside electrical
power
(shore power)
make
sure
the
generator has been
turned off
and that
it is switched
to “UTILITY
MAIN”.
Use the adaptor plug (pig
tail) supplied
with
the coach
to permit
the
25-foot
electrical
cord
to be attached
to an outside
protected
receptacle
of 15 or
20
AMPS,
if a 30 AMP
receptacle
is unavailable.
