Apollo 51000-600 - Detector Mounting Base; Contents of Box; Operation and Status Indicators; Detector Status LED and Sounder Modes

2.3 DETECTOR MOUNTING BASE

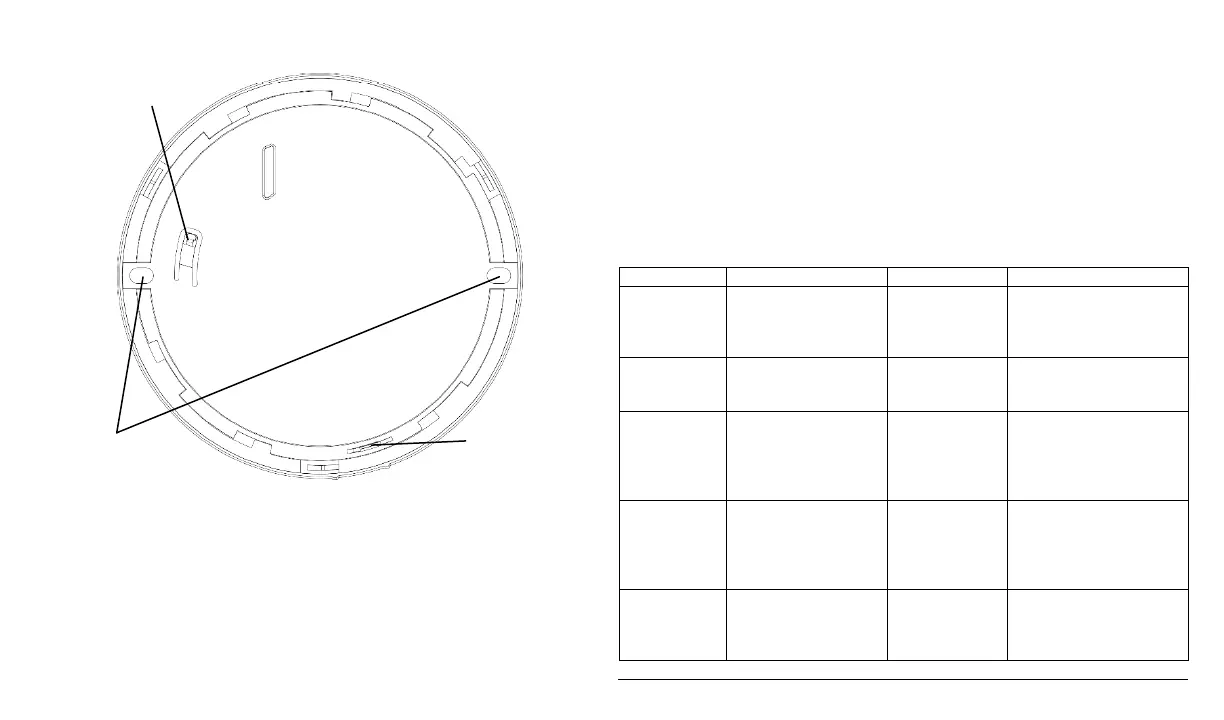

Figure 3 - Mounting Base
3. CONTENTS OF BOX
• Wireless Combination Smoke, Heat and Carbon Monoxide Alarm with
mounting base
• Installation guide (APD0812)
• Pack of screws and anchors
• Labels or decals as appropriate
• 2 CR123A Panasonic batteries or 2 EL123AP Energizer batteries
4. OPERATION
The Wireless Combination Smoke, Heat and Carbon Monoxide Detector contains a
sounder which generates ANSI S3.41 Temporal-3 pattern when fire is detected or
ANSI S3.42 Temporal-4 pattern when Carbon Monoxide is detected. In alarm, a
message is also sent to the control panel and the detector’s ID is displayed. During
an alarm condition, pressing either of the FIRE or CO test/hush buttons will silence
the sounder for a short period (see LED and sounder operating modes table).
A multi-color LED indicator provides visual indication for the detector operating
modes and states. In general, RED is used to indicate ALARM conditions, YELLOW
is used to indicate FAULT conditions and GREEN is used for normal operation (see
Detector Status LED & Sounder operating modes table).
4.1 DETECTOR STATUS LED & SOUNDER OPERATING MODES
Status
Description
LEDs
Sounder
Smoke Alarm
Smoke has been
detected
3 RED flashes
in time with
sounder
Temporal-3
BEEP-BEEP-BEEP-pause
(press either button to
hush for 7 minutes)
Heat Alarm
Heat has been
detected
3 RED flashes
in time with
sounder
Temporal-3
BEEP-BEEP-BEEP-pause
CO Alarm
Carbon Monoxide
has been detected
4 RED flashes
in time with
sounder
Temporal-4
PIP-PIP-PIP-PIP-long
pause
(press either button to
hush for 5 minutes)
CO GO/NO-
GO Test
Test mode for
checking Carbon
Monoxide
functionality with
test gas
1 GREEN flash
followed by
1 BLUE flash
every 12
seconds
None
Freeze
Warning
Temperature is
below 41°F (5°C)
3 YELLOW
flashes
every 4
seconds
None
Anti-Tamper
Locking Tab
Tamper Switch
Mechanism
Screw Mounting Holes
