Apollo 7200ETL - Chain Bracket Installation; Chain & Chain Bolt Installation

8

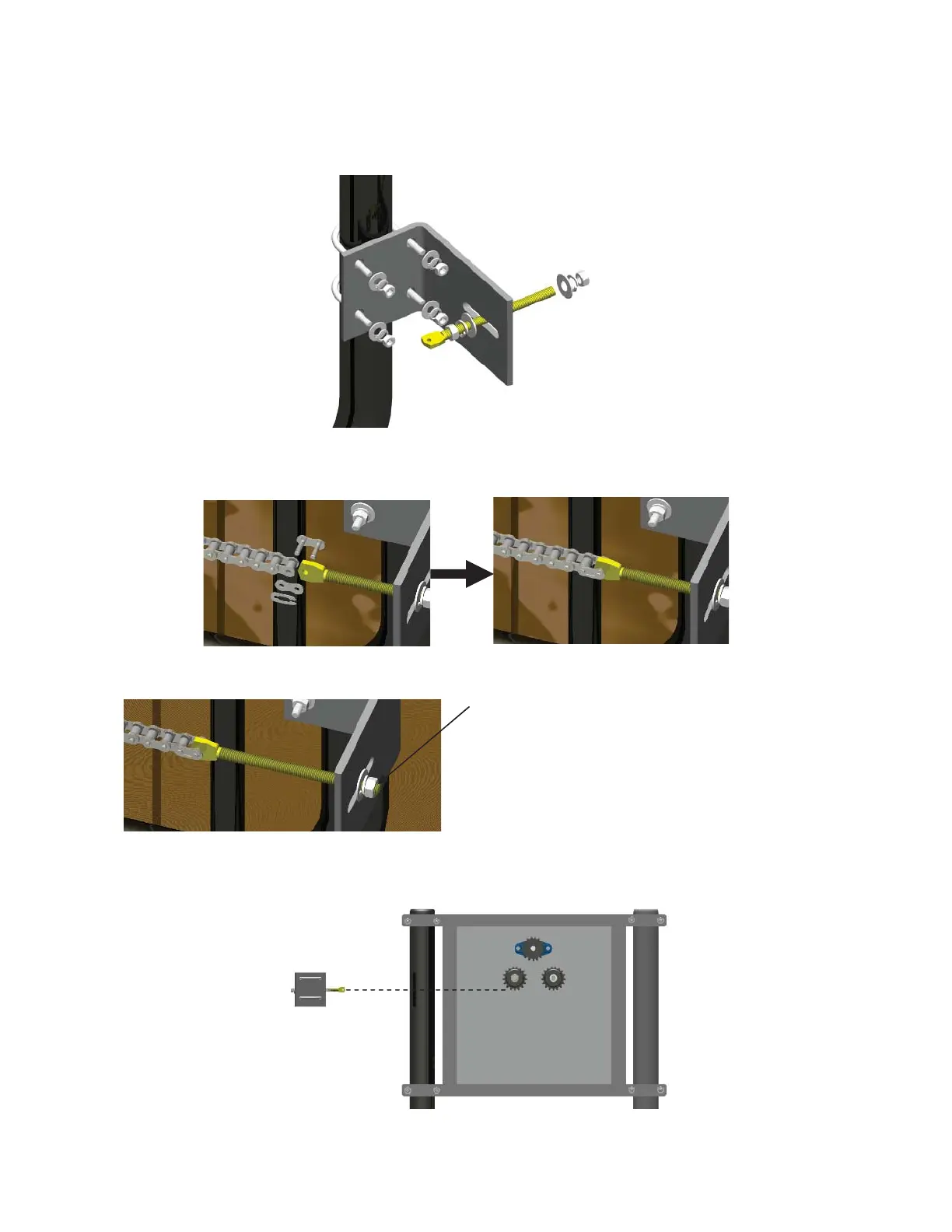

STEP 3. Install one of the gate brackets and chain bolts on right side of gate using the supplied
2” U-bolts. Do not tighten at this time.
STEP 4. Attach the chain to the chain bolt using the master chain link.
Adjust the chain bolt to allow for
maximum tightening
Note: The height of
the chain bolt should
align with the bottom
teeth of the idler
sprockets.
