13 AIM-4SL Hardware Manual
© 2011 Apollo Security Inc.

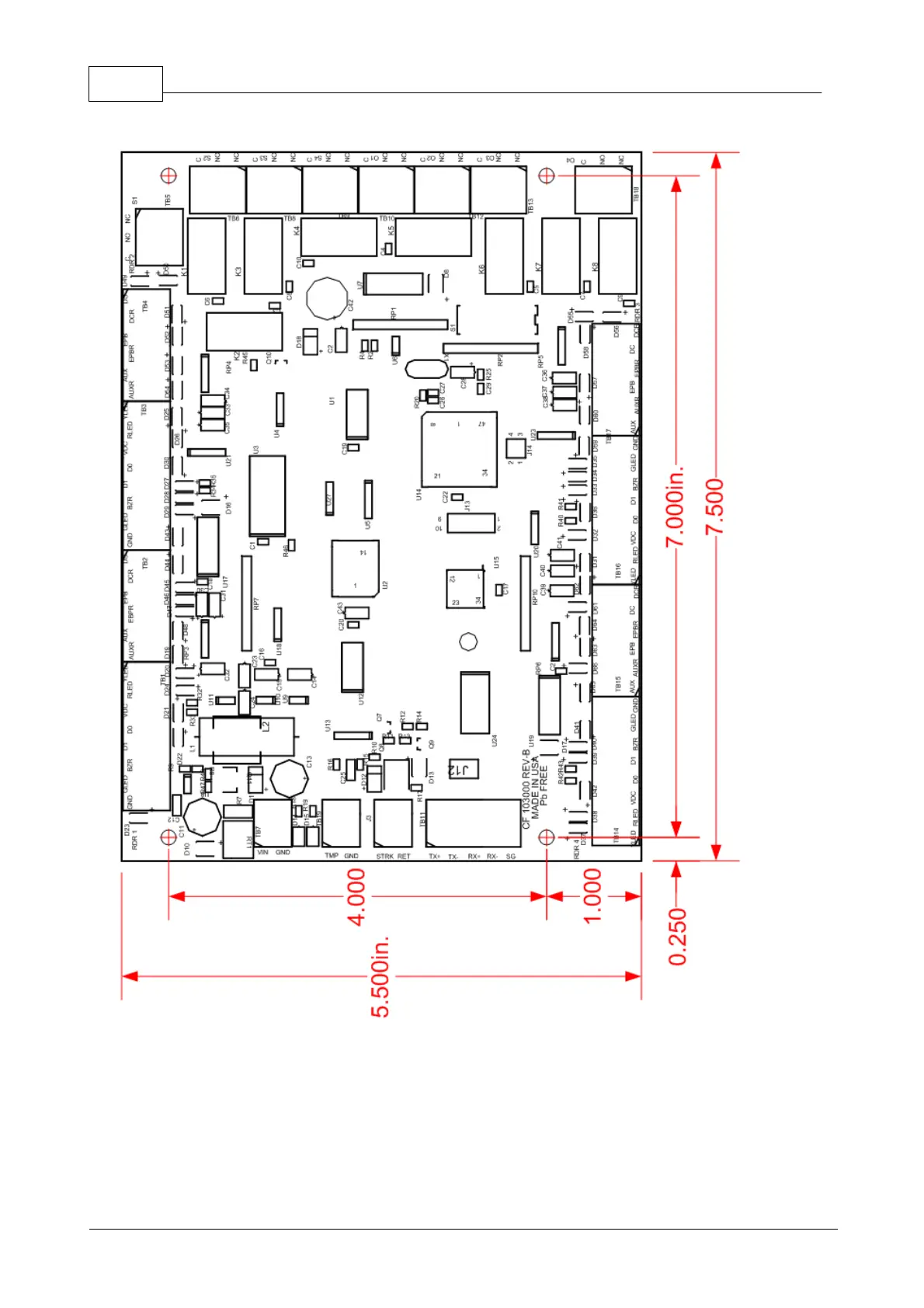

Figure 2.7.1 AIM-4SL Mounting Holes.
Location of mounting holes for the AIM-4SL is shown in
scale. Note that the drawing will not print the exact size of the actual circuit board.
