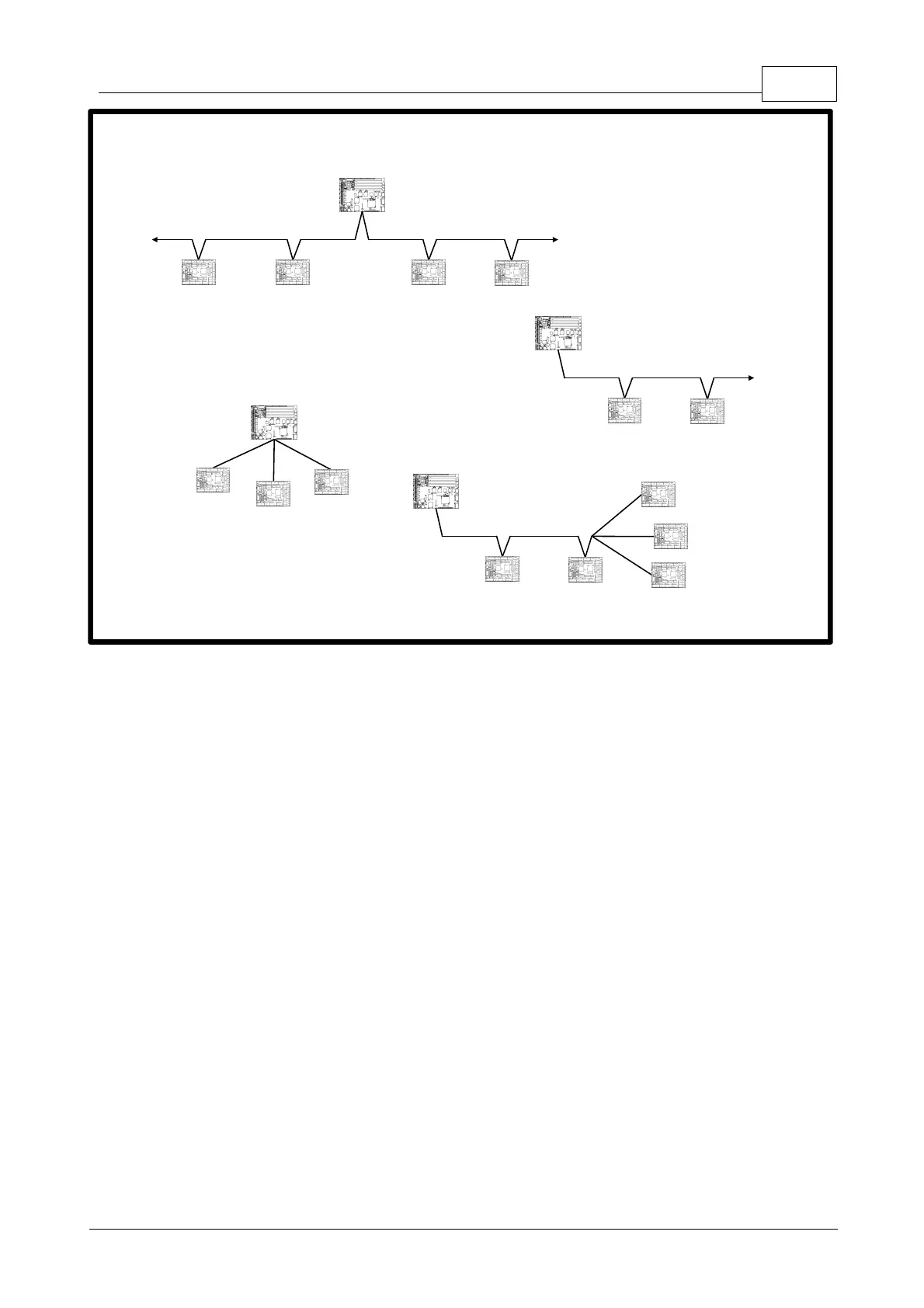

Figure 3.4.1.1 RS-485 Bus Configuration.
The RS-485 communication line must be laid out in a
daisy-chain wiring pattern. Avoid wiring devices in a ‘star’ configuration to avoid reflections and termination
problems.
