Apollo RPLF4A - Bypass Single Check (Type 2) Details

22
Customer Service (704) 841-6000
www.apolloflowcontrols.com
“Apl”
Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL

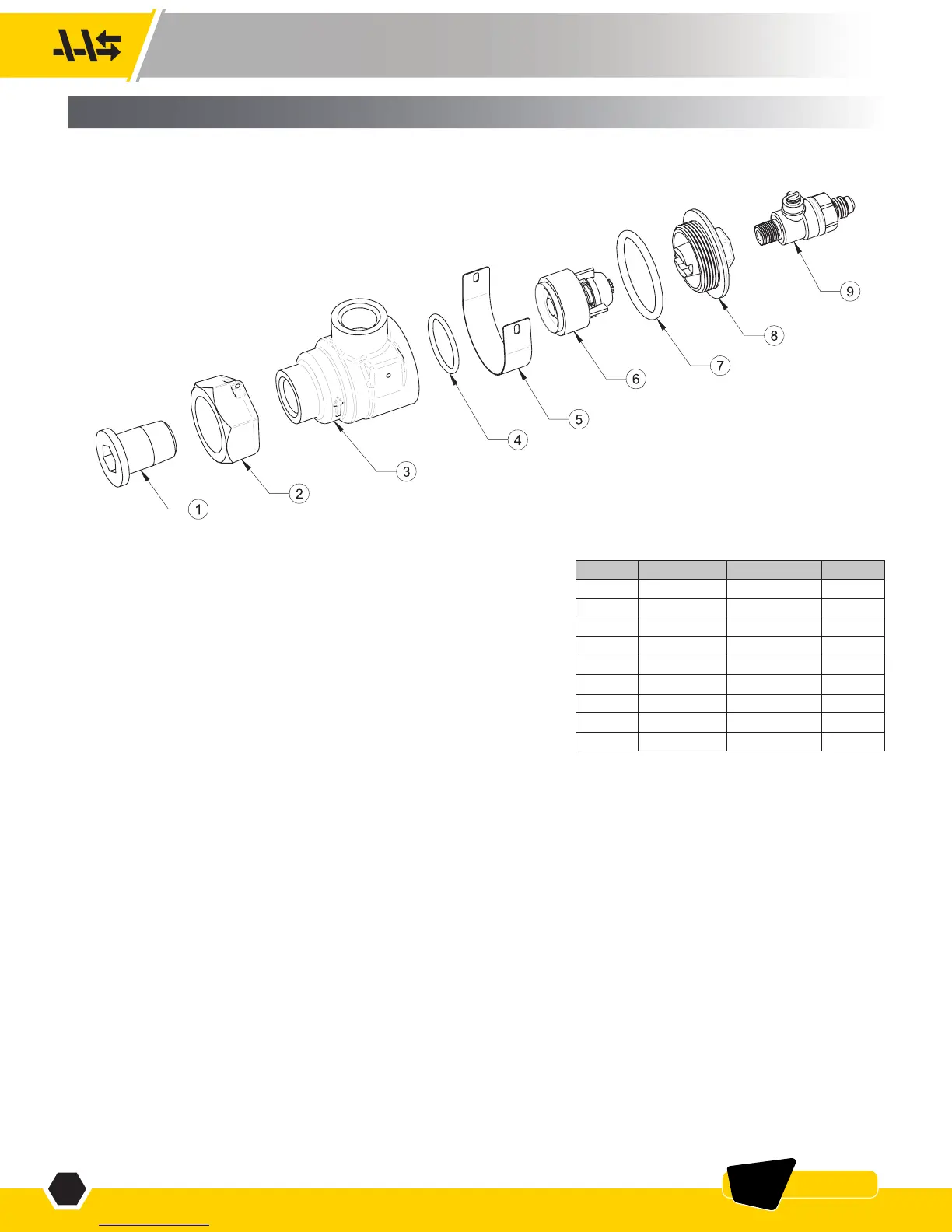

ITEM PART # DESCRIPTION QTY
1 K-4587-06 Tailpiece 1
2 C-1844-05 Union Nut 1
3 Q-7281-05 Body 1
4 D-3885-00 Check O-ring 1
5 I-9342-00 Nameplate 1
6 F-3228-00 Check Valve 1
7 D-3589-00 Cap O-ring 1
8 F-4042-05 Cap 1
9 78LF-270-01 Test Cock 1
INDIVIDUAL PARTS ARE ONLY AVAILABLE FOR BULK SALES.
PLEASE REFER TO THE APPROPRIATE REPAIR KITS BELOW.
BYPASS SINGLE CHECK REPAIR KITS
4A-003-12: CHECK REPAIR KIT: INCLUDES ITEMS 4, 6, AND 7 (1 EA.)
4A-003-13: CHECK COMPLETE KIT: INCLUDES ITEMS 1-9 (1 EA.)
Note: All bronze components listed are lead-free*
* LEAD FREE: The wetted surfaces of this product shall contain no more than
0.25% lead by weighted average. Complies with CA AB1953, VT Act 193, MD
HB372, LA HB471, and Federal Public Law 111-380.
FIGURE 13
W977005 SINGLE CHECK VALVE (LEAD FREE*)
PART LIST - BYPASS SINGLE CHECK (TYPE 2)
