Apollo RPLF4A User Manual

28
Customer Service (704) 841-6000
www.apolloflowcontrols.com
“Apl”
Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL

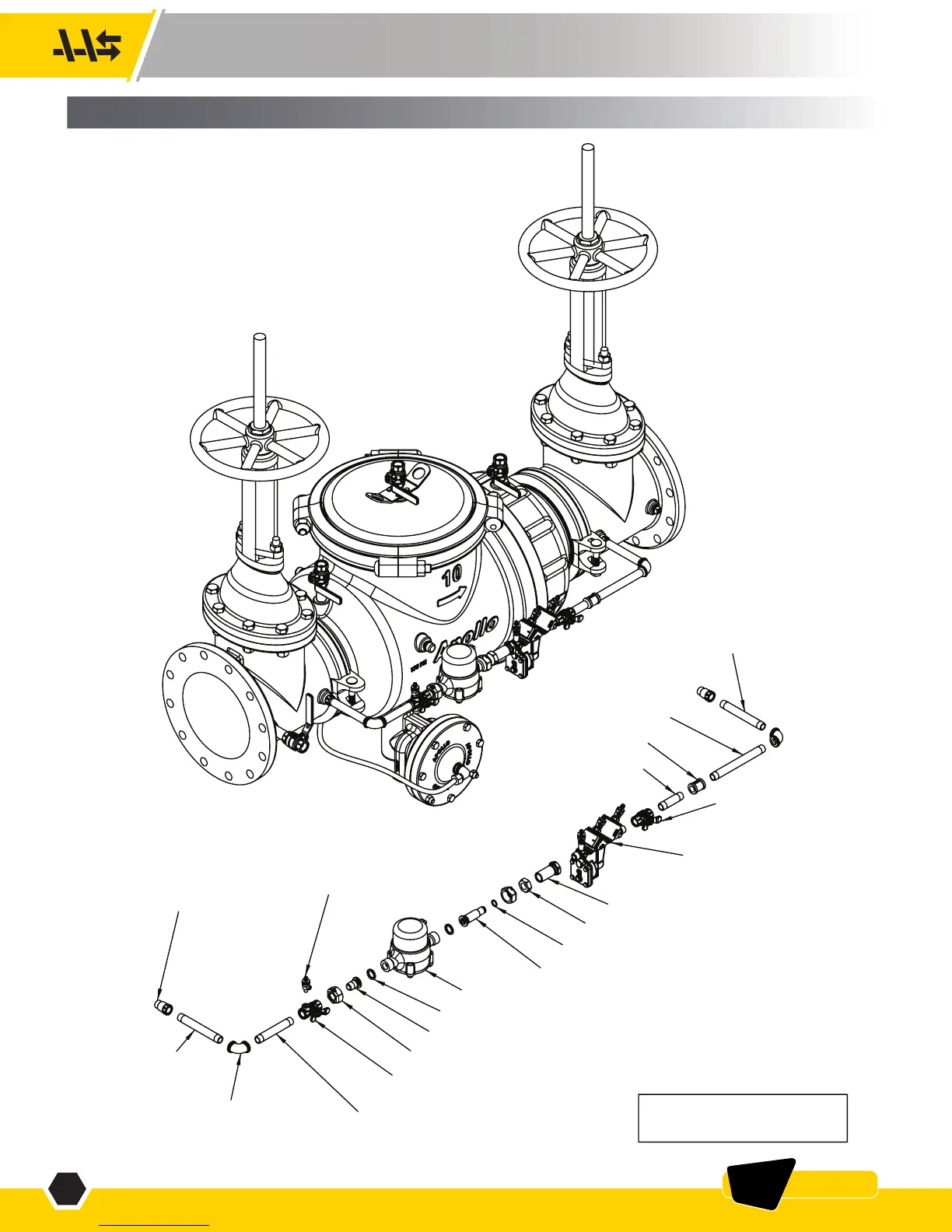

10"
TYPE 1
BYPASS
LINE
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
3/4" Male X
1/2" Female Fitting
(2 ea.)
1/2" X 6"
Long Nipple
1/2" X 5" Long Nipple
1/2" Ball Valve with Tapped Port
(Note Location of Port)
Meter Nut (2 ea.)
Rubber Washer (2 ea.)
Water Meter
Meter Connector
Adjustment Joint Adapter
Adjustment Joint O-ring
Adjustment Joint Nut
Adjustment Joint Retainer
1/2" RPLF4A
Reduced Pressure
Backflow Preventer
1/2" Ball Valve
without Tapped Port
1/2" X 3" Long Nipple
1/2" Coupling
1/2" X 7-1/2" Long Nipple
1/2" X 6" Long Nipple
1/2" 90°
Elbow (2 ea.)
Test Cock
