XP95 MOUNTING BASE
XP95 Mounting Bases and
XPERT cards.
The XP95 smoke and heat
detectors all fit the XP95
mounting base. The base is
a zero insertion force base
with dual finger receptacles
of stainless steel into which
the detector terminals slide.
Cable connections of up to
2.5mm diameter are made
via captive cable clamps.
There are four double
terminals and one single one.
L1 line IN and OUT,
double terminal
L2 line IN and OUT,
double terminal
+R remote LED positive
supply, double terminal
-R remote LED negative
supply, double terminal
The remaining single terminal
is isolated and can be used
to provide continuity of an
earth or shield.
Universal address cards,
known as XPERT cards are
supplied with all bases.
Consult the coding guide to
determine which pips are to
be removed. Pre-printed and
pre-punched address cards
that save time and increase
accuracy during
commissioning are
available in sets, part
number: 38531-771
The base has a ‘one way
only’ fit and detectors can
be locked into the base by a
grub screw with the aid of a
1.5mm hexagonal driver,
part number: 29600-095.
For more information on
Apollo’s range of bases,
please refer to the Range of
Bases & Mounting Accessories
brochure, PP1089.

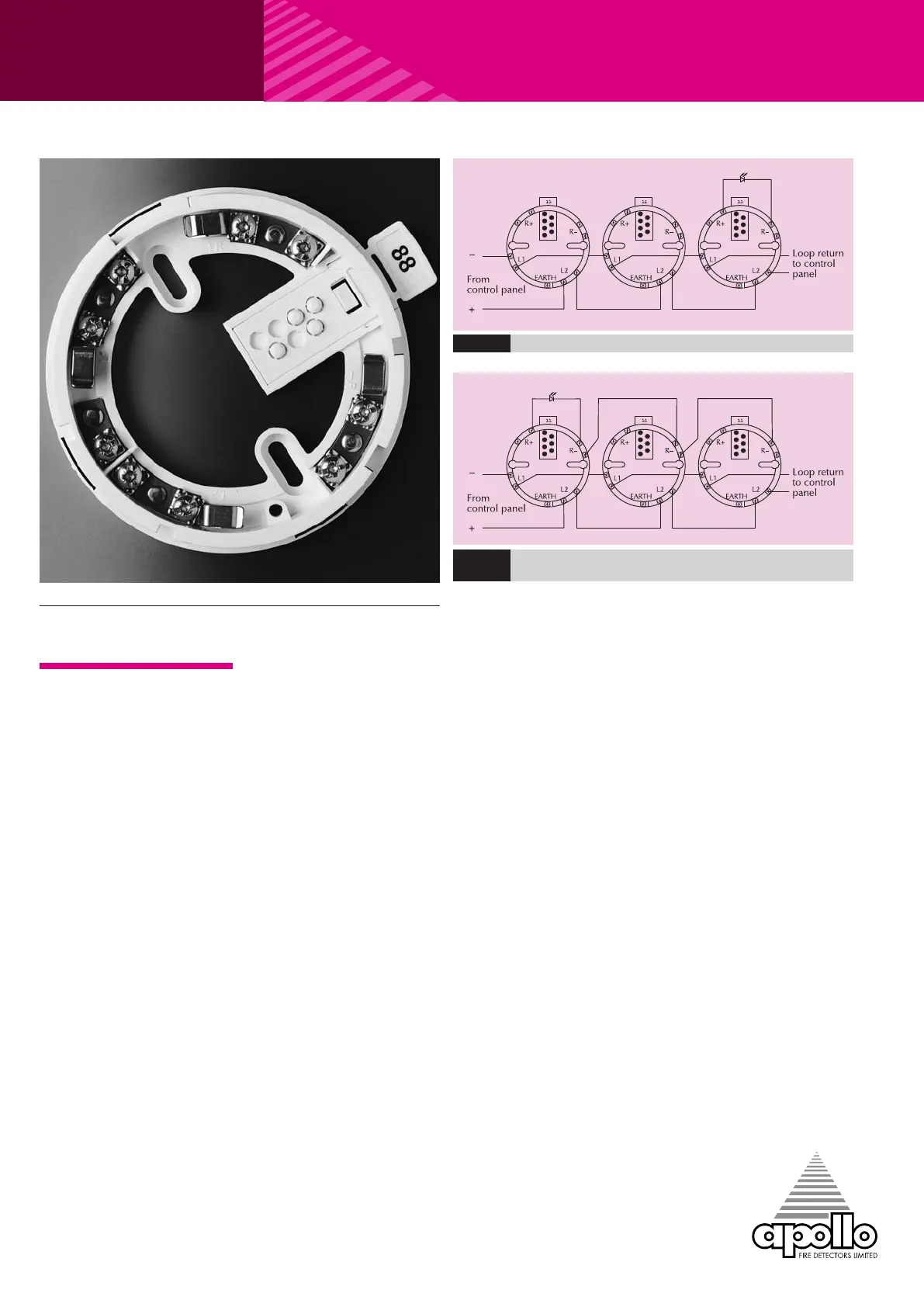

XP95 Mounting Base  Part Number 45681-210
Fig.17 Schematic wiring diagram - XP95 mounting base
Fig.18 Schematic wiring diagram of XP95 detector circuit with a
common remote LED
