for power, a micro SD connector, a video and digital audio output,
three USB connectors for keyboard, mouse and joypad, RJ45-
Ethernet port and two DB9 connectors for Amiga joystick or
Amiga mouse.

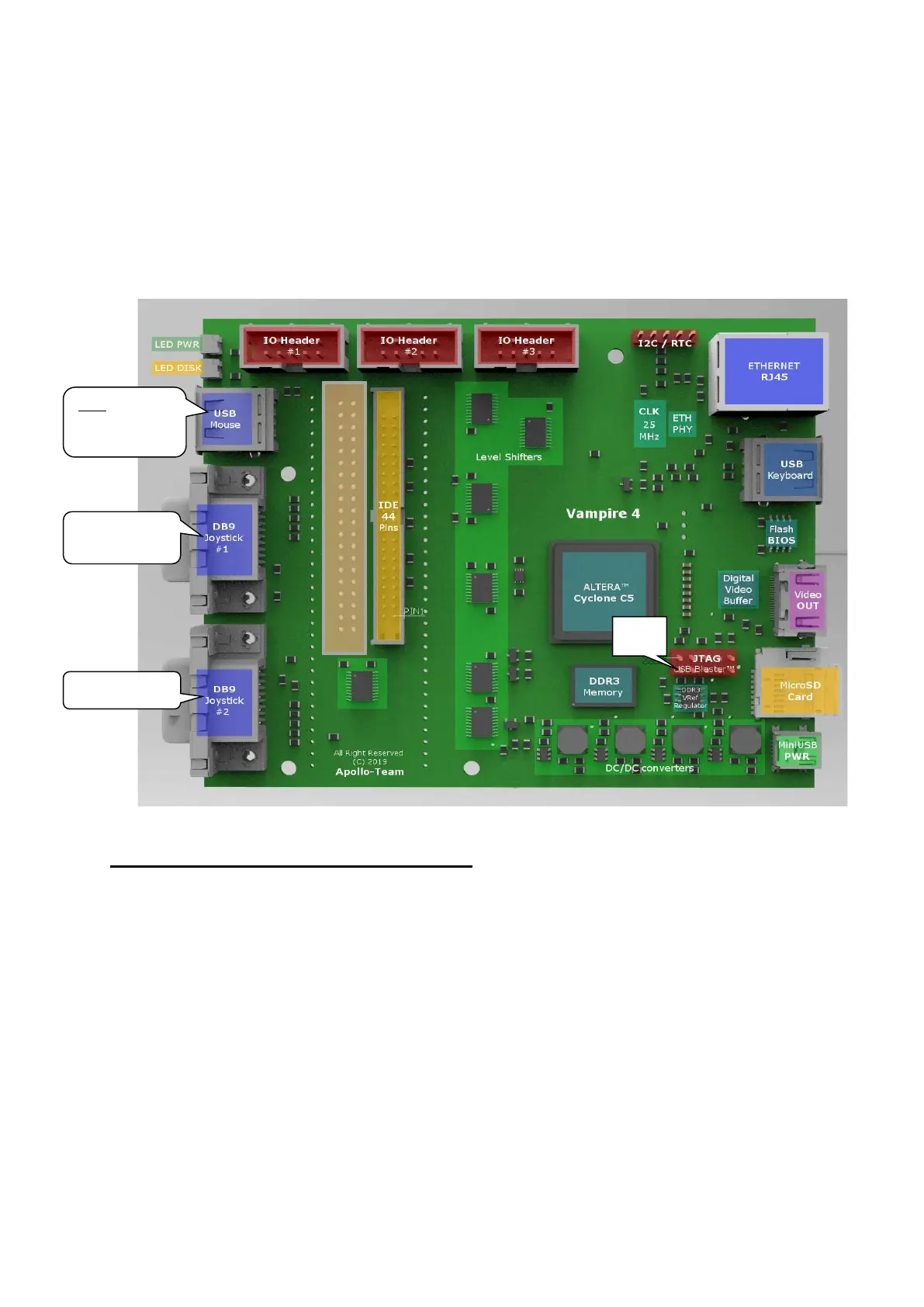

The card has the following internal connectors: 3 Expansion ports
for future extensions, a RTC connector for a clock module, a 44-
pin IDE port for mass storage is used for CF/SD- Adapter+ card, a
a 40-pin IDE port, and a JTAG port for updating the core.
5) How to use & good to know:
Self test: At power ON, the screen will change color quickly; this is
a normal self test of the system and Amiga Mainboard.
Ethernet: DMA accelerated Ethernet; drivers are included in
ApolloOS.
USB: The Apollo-computer-shop sells compatible USB devices.
For other USB mice and Joypad look at the periraphel list, at:
www.apollo-computer.com.
Joystick: Support of AMIGA Joystick (like Competition Pro on
the DB9 port.
OCS/AGA: Over 90% of the games and demos work perfectly.
This is continually improving.
Boot drives: boot from IDE/CF or microSD. You can also use
microSD card for data exchange.
PIN 1
Red wire
Top: Joypad
Bottom: mouse
Joystick Player2
IDE
40
Pins
-2-
