506/506B
EN

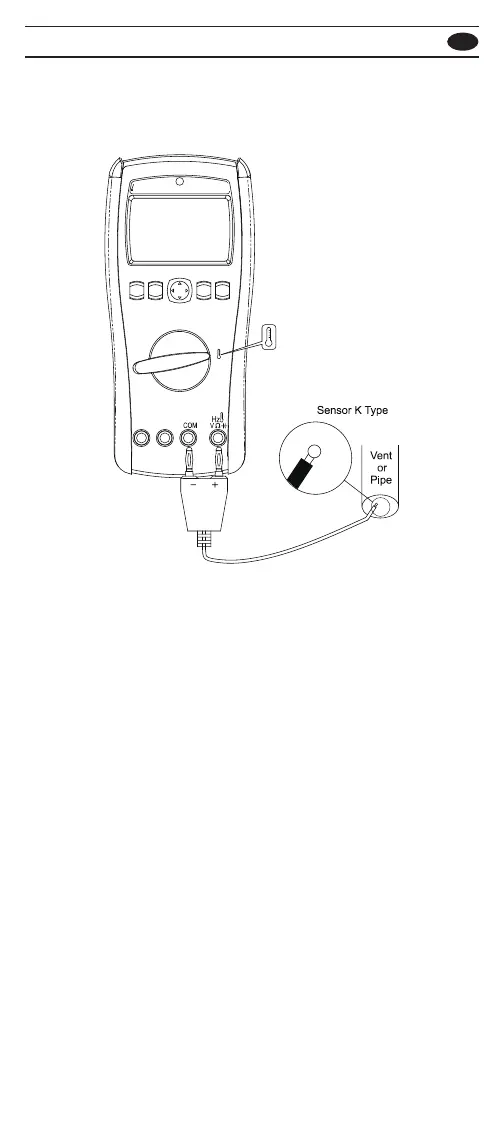

Measuring Temperature
The meter measures the temperature of a K-Type
thermocouple.
You can press the function (yellow) button to choose
degrees Celsius (°C) or degrees Fahrenheit (°F). Display
ranges are -200°C to +1200°C and -328°F to +2192°F.
Readings outside of these ranges show “OL” on the display.
When there is no thermocouple connected, the display also
shows “OL”.
To use temperature measurement, turn the rotary switch to
temperature position, then press the function (yellow) button
to select measuring mode.
