The default sorting standard value is the current value, and the
default tolerance is ±1.0%.

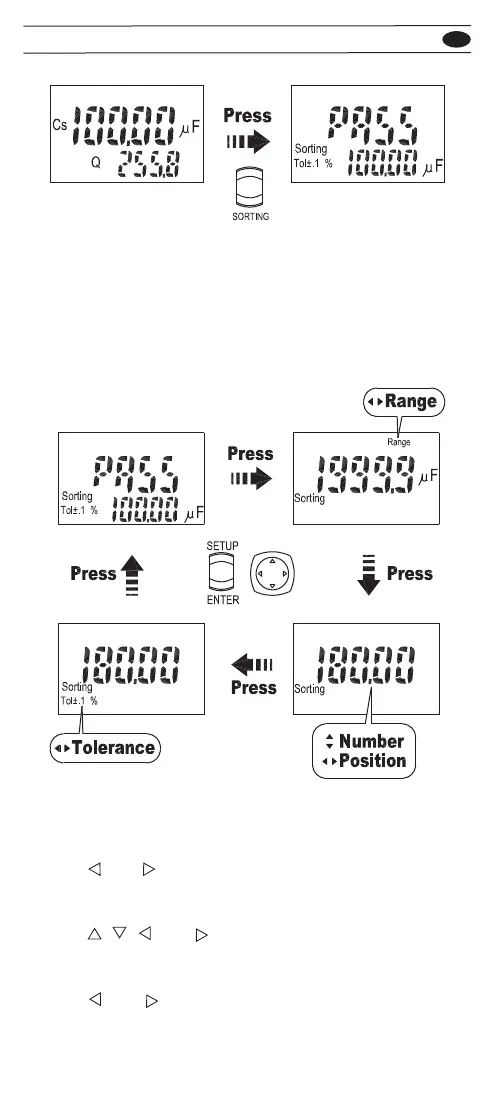

Setup Sorting Standard
To setup the sorting standard value, follow the steps below.
1. Press the SETUP button to enter the setup mode.
2. Press
and
button to setup the range of the standard
value. Then press the ENTER button to save the setup value
and enter the next step.
3. Press ,
,
and
button to setup the standard value.
Then press the ENTER button to save the setup value and
enter the next step.
4. Press
and
button to setup the tolerance value. Then
press the ENTER button to save the setup value and exit this
mode.
EN
703
19
