Apple EMac - eMac - Side View

eMac (ATI Graphics) Take Apart - 11
Power Button
Procedure

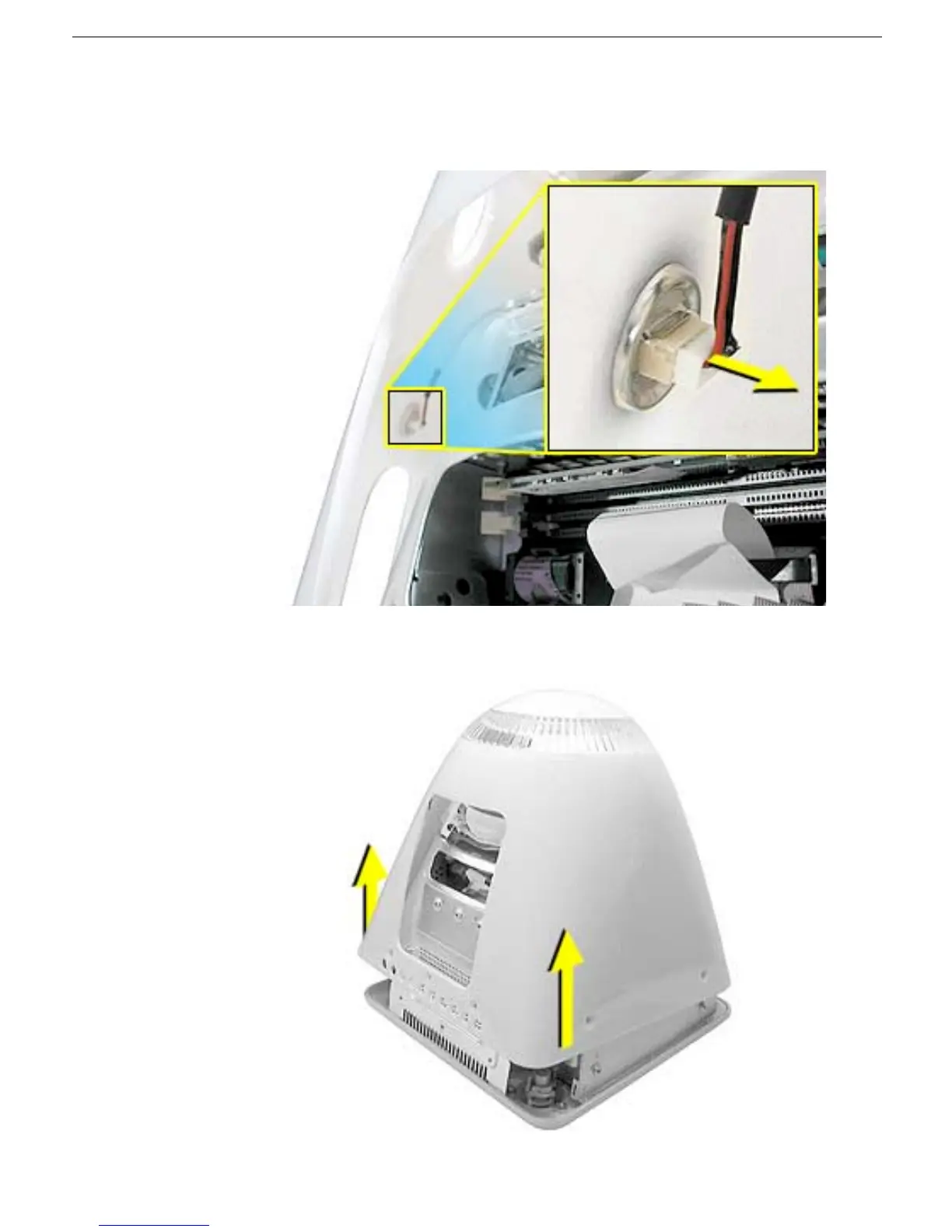

1. Disconnect the power button cable from the power button located inside the rear
housing.
2. Lift the rear housing off the bezel. Replacement Note: Refer to the topic on the next
page, “Power Button Cable Check” before replacing the rear housing.
