Apple iMac (24-inch) - Upper Exploded View of iMac Components

iMac (24-inch) — Views 228

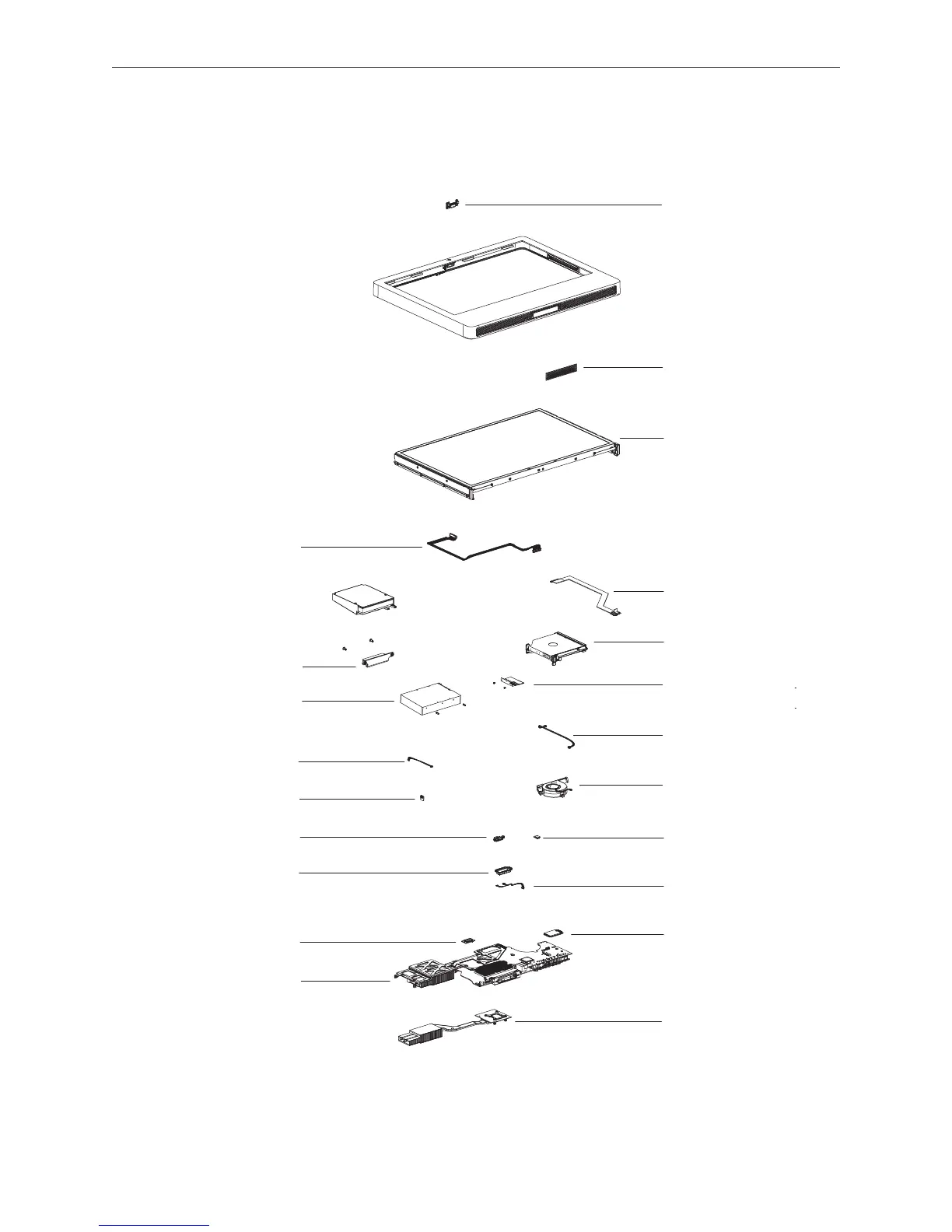

iMac (24-inch)—Upper Exploded View
Camera Board
922-7833
Access Door
922-7819
LCD Display Panel
661-4184
LVDS Cable
922-7786
Super Drive
661-3949
Cable, Optical Flex
922-7794
Cable, Optical Temp Sensor
922-7788
Optical Fan
922-7783
ALS Board
922-7805
IR/ALS Cable
922-7803
AirPort Extreme Card
661-4060
Video Card
661-4179 7300 GT, 128 MB
661-4180 7600 GT, 256 MB
Front Bezel
(Includes Camera Board)
922-7820
Inverter Cable
922-7787
Power Supply
(Includes Gasket)
661-4183
Clip, Hard Drive
922-7826
Hard Drive
250 GB 661-3948
500 GB 661-3988
IR Board
922-7804
IR/ALS Shield
922-7821
Bluetooth Card
922-7289
Logic Board
661-4181 2.33 GHz
661-4182 2.16 GHz
Cable, HD Temp Sensor
922-7795
HD Temp Sensor
922-7791
Not Shown:
661-4176 SDRAM, 512 MB
661-4177 SDRAM, 1 GB
661-4178 SDRAM, 2 GB
