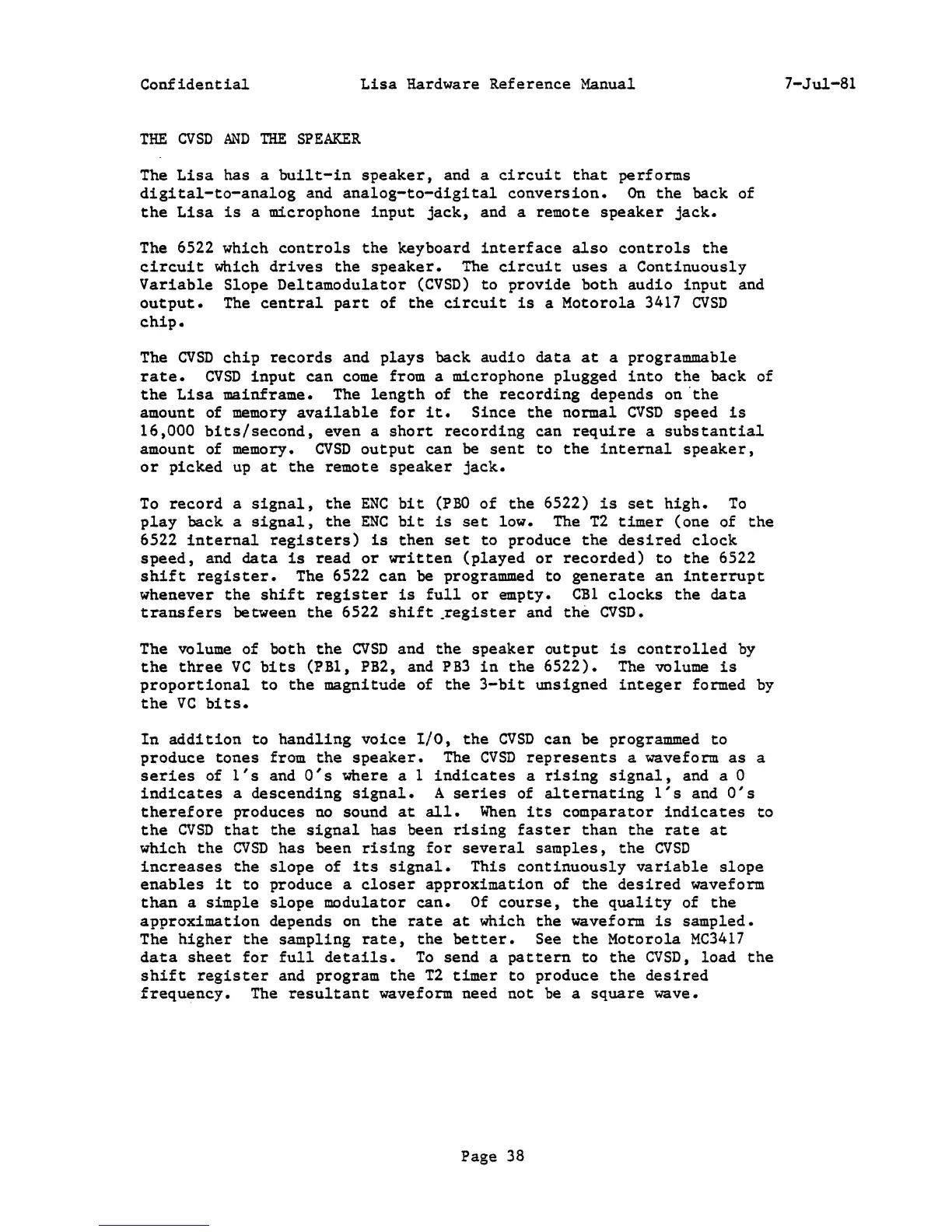

Confidential
Lisa
Hardware Reference Manual
THE
CVSD
AND
THE
SPEAKER
The
Lisa
has a
built-in
speaker,
and a
circuit
that
performs
digital-to-analog
and
analog-to-digital
conversion.
On
the
back of
the
Lisa
is
a microphone
input
jack,
and a remote
speaker
jack.
The
6522 which
controls
the
keyboard
interface
also
controls
the
circuit
which
drives
the
speaker.
The
circuit
uses
a
Continuously
Variable
Slope
Deltamodulator
(CVSD)
to
provide
both
audio
input
and
output.
The
central
part
of
the
circuit
is
a Motorola 3417
CVSD
chip.
The
CVSD
chip
records
and
plays
back audio
data
at
a programmable
rate.
CVSD
input
can
come
from a microphone plugged
into
the
back of
the
Lisa
mainframe.
The
length
of
the
recording
depends on "the
amount of
memory
available
for
it.
Since
the
normal
CVSD
speed
is
16,000
bits/second,
even a
short
recording
can
require
a
substantial
amount of
memory.
CVSD
output
can
be
sent
to
the
internal
speaker,
or
picked
up
at
the
remote
speaker
jack.
To
record
a
signal,
the
ENC
bit
(PBO
of
the
6522)
is
set
high.
To
play
back a
signal,
the
ENC
bit
is
set
low.
The
T2
timer
(one of
the
6522
internal
registers)
is
then
set
to
produce
the
desired
clock
speed,
and
data
is
read
or
written
(played
or
recorded)
to
the
6522
shift
register.
The 6522 can
be
programmed
to
generate
an
interrupt
whenever
the
shift
register
is
full
or
empty.
CB1
clocks
the
data
transfers
between
the
6522
shift
.register
and
the
CVSD.
The volume of
both
the
CVSD
and
the
speaker
output
is
controlled
by
the
three
VC
bits
(PBl,
PB2,
and
PB3
in
the
6522).
The
volume
is
proportional
to
the
magnitude of
the
3-bit
unsigned
integer
formed
by
the
VC
bits.
In
addition
to
handling
voice
I/O,
the
CVSD
can be programmed
to
produce tones from
the
speaker.
The
CVSD
represents
a waveform
as
a
series
of
l's
and
O's
where a 1
indicates
a
rising
signal,
and a 0
indicates
a descending
signal.
A
series
of
alternating
l's
and
a's
therefore
produces
no
sound
at
all.
When
its
comparator
indicates
to
the
CVSD
that
the
signal
has been
rising
faster
than
the
rate
at
which
the
CVSD
has been
rising
for
several
samples,
the
CVSD
increases
the
slope
of
its
signal.
This
continuously
variable
slope
enables
it
to
produce a
closer
approximation of
the
desired
waveform
than
a simple
slope
modulator
can.
Of
course,
the
quality
of
the
approximation
depends
on
the
rate
at
which
the
waveform
is
sampled.
The
higher
the
sampling
rate,
the
better.
See
the
Motorola
MC3417
data
sheet
for
full
details.
To
send a
pattern
to
the
CVSD,
load
the
shift
register
and program
the
T2
timer
to produce
the
desired
frequency.
The
resultant
waveform need
not
be
a
square
wave.
Page
38
7-Jul-81
