Apple Mac mini - Page 90

Mac mini (Late 2009) Take Apart — Internal Frame 90
2009-11-03
Removal
Note: Depending on
the conguration, the
internal frame will
either have an optical
drive or a second
hard drive installed
on the internal frame.
The internal frame
removal procedure is
the same for both.

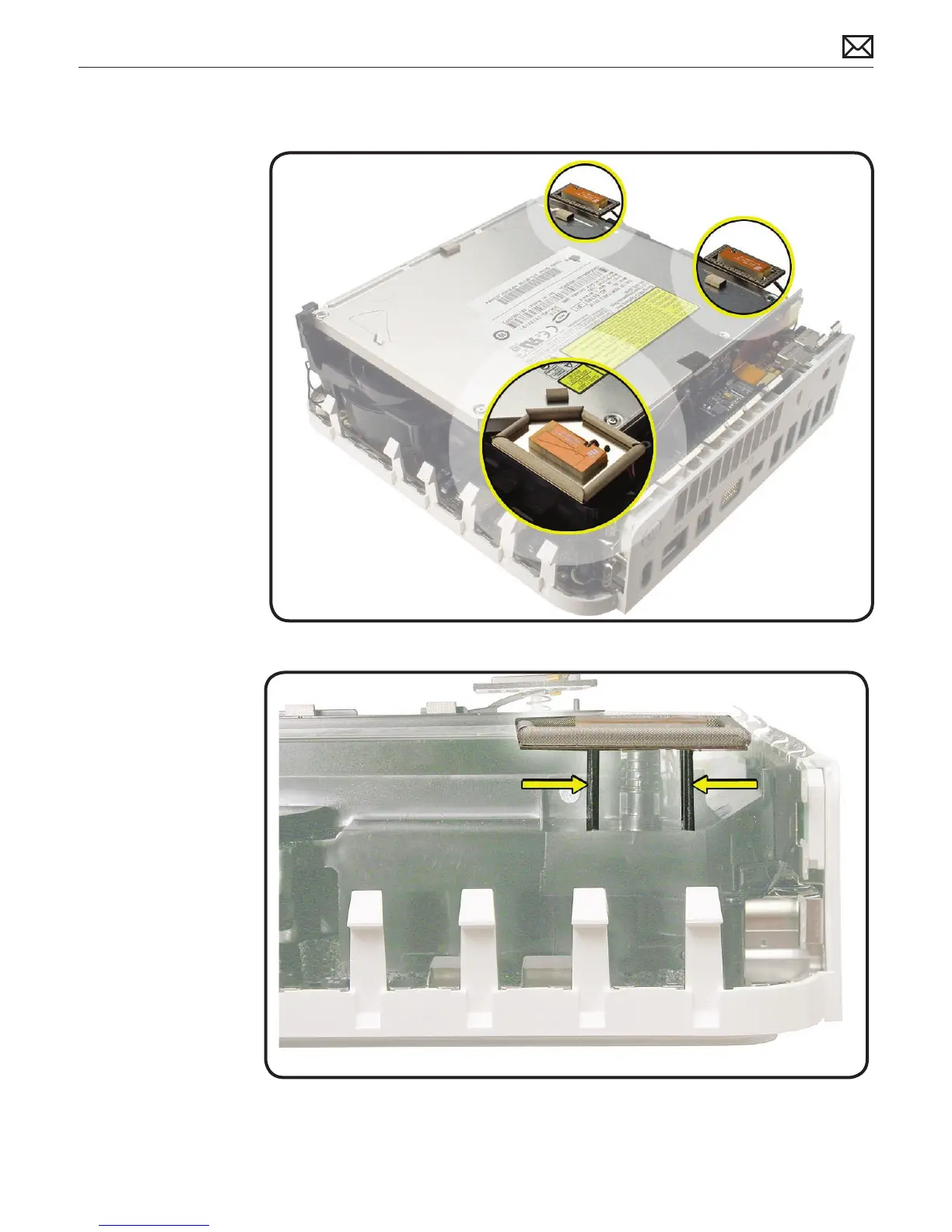

Locate 3 antennas on 1
internal frame.
2 Squeeze black posts
together and pull
AirPort antenna board
straight up and o
the post.
