Mac mini (Late 2009) Take Apart — Internal Frame 91
2009-11-03

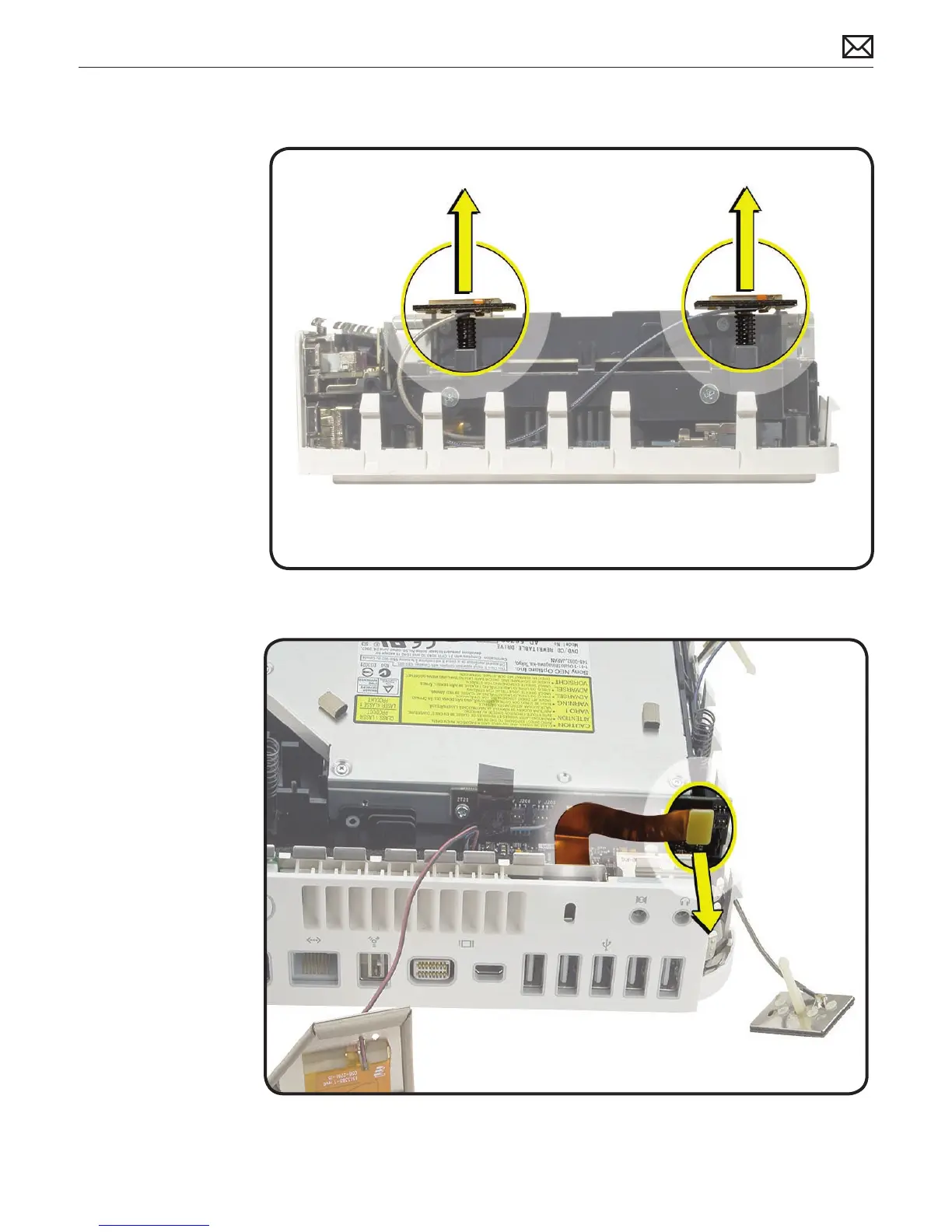

3 Pull the 2 other
antennas straight up
and o the spring
posts.
Important: Leave
antennas connected
to the AirPort/
Bluetooth card unless
you are replacing
the antennas or the
AirPort/Bluetooth
card.
4 With a black stick,
disconnect the audio
exible cable from
interconnect board.
