Apple Mac mini - Page 92

Mac mini (Late 2009) Take Apart — Internal Frame 92
2009-11-03

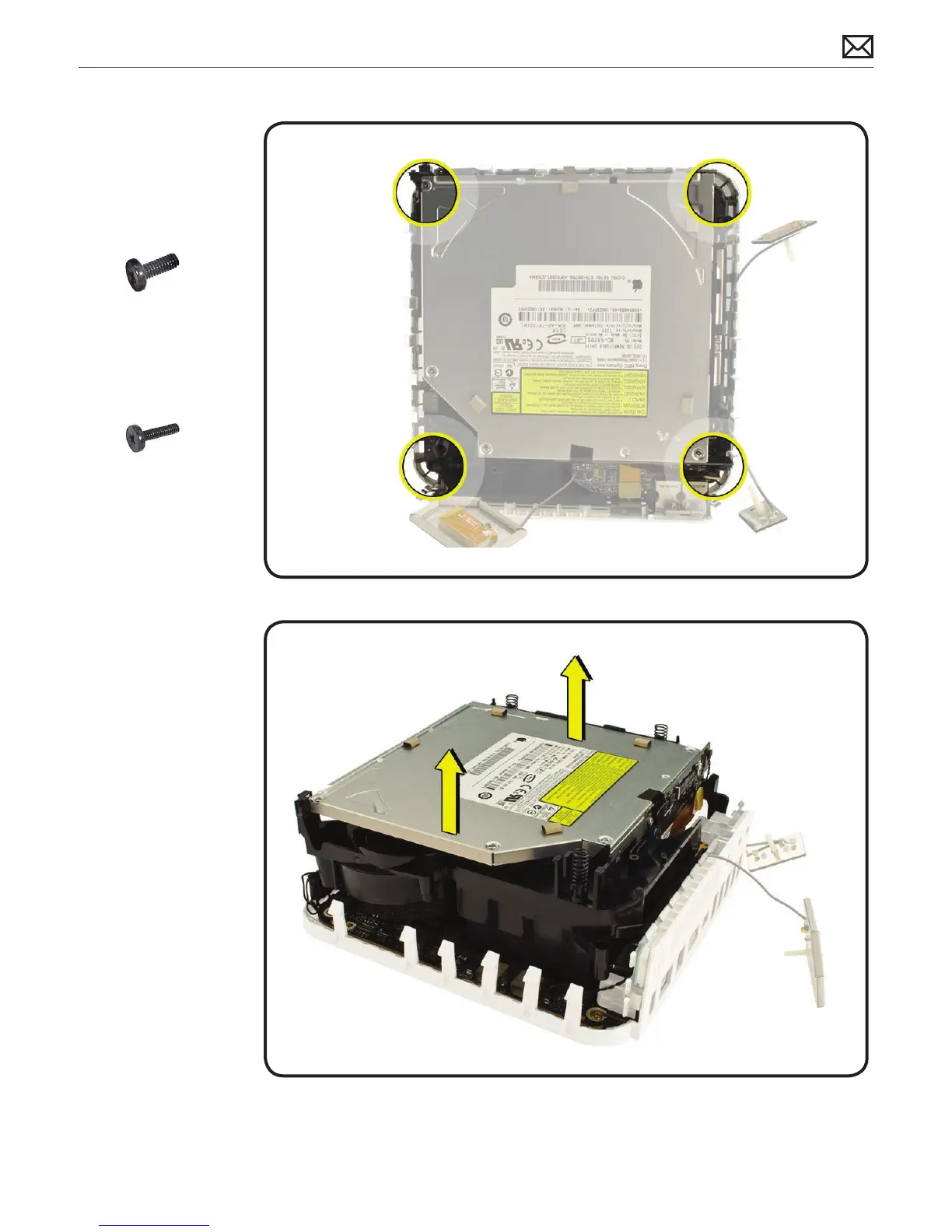

5 Remove 4 internal
frame screws, located
in each corner:
3 (922-7325) •
1 longer screw, near •
power on LED (922-
7324)
6 Lift internal frame up
and o bottom
housing.
Important: Leave
antennas connected
to the AirPort/
Bluetooth card unless
you are replacing
the antennas or the
AirPort/Bluetooth
card.
